16
Connecting a subwoofer
Before connecting
• If your subwoofer isn’t equipped with an amplifier, connect a separate amplifier to the unit first, then
connect the subwoofer to that amplifier.
• The SUBWOOFER PRE OUT connector supplies the left and right mixed monaural signals to the
subwoofer.

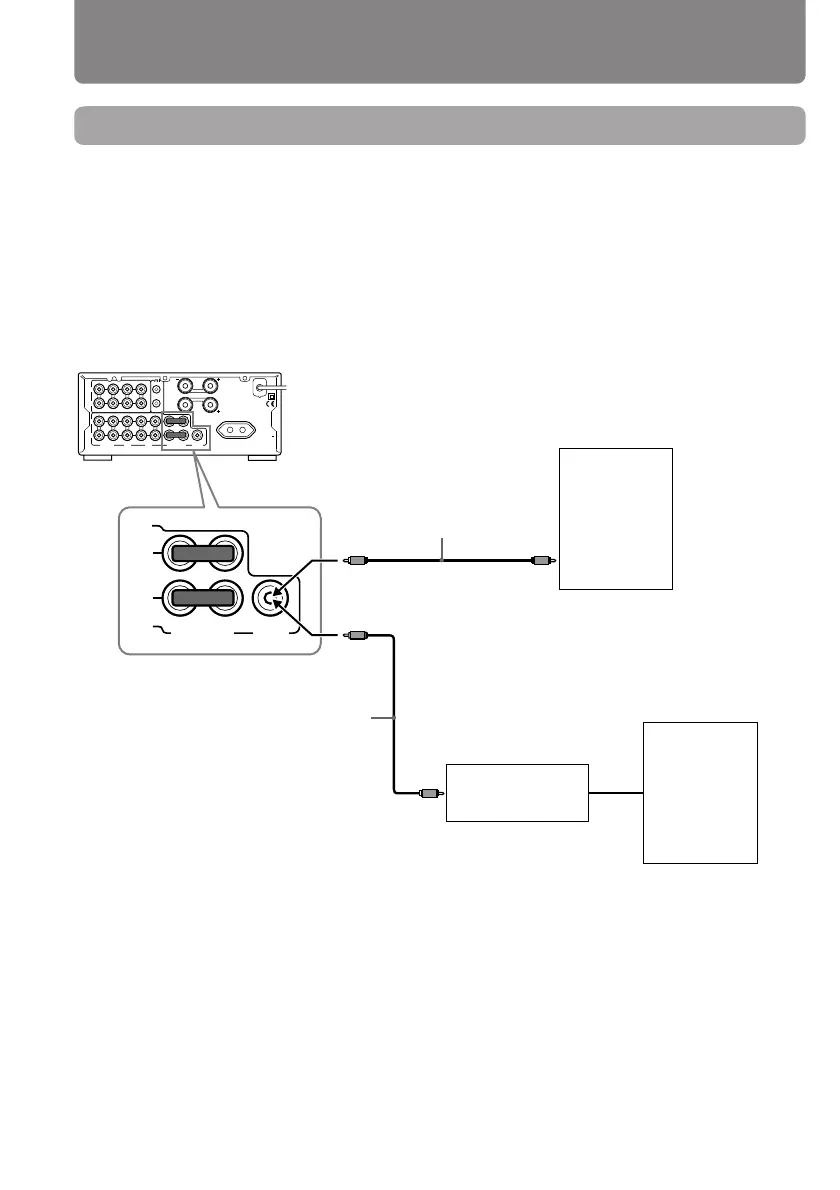

Connections
This unit
Active
Subwoofer
Amplifier
Subwoofer
Audio connection cable
Audio connection cable
or
When connecting a subwoofer with a
built-in amplifier
When connecting a subwoofer with
no built-in amplifier
L
R
L
R
LINE/DVDTUNER
OUT
IN
L
R
TAPE
SPEAKERS
OUT
(
REC
)
OUT
(
REC
)
IN
(
PLAY
)
IN
(
PLAY
)
OUT
(
REC
)
IN
(
PLAY
)
REMOTE
CONTROL
CD
CDR/PC
PROCESSOR
MD
SUBWOOFER
PRE OUT
L
R
AC OUTLET
AC 230-240V
50Hz
SWITCHED
100W MAX.
CAUTION:
SPEAKER IMPEDANCE
4 OHMS MIN./SPEAKER
OUT
IN
PROCESSOR
SUBWOOFER
PRE OUT
Connecting speaker systems
