Connecting Other Components—Continued
The following diagram shows how to connect an optional Onkyo RI Dock (Remote Interactive Dock).
What can you do with u?
• Connecting an Onkyo RI Dock to the CD receiver with an u cable allows you to control the RI Dock with the CD
receiver’s remote controller. In addition, when playback is started on the RI Dock, the CD receiver will automatically
select it as the input source.
• To use u, you must connect the Onkyo RI Dock to the CD receiver with an u cable (If you connect the Onkyo RI
Dock to LINE IN, you also need to connect it with an analog audio cable.). On the RI Dock, set the RI MODE switch
to “HDD” or “HDD/DOCK”. See the RI Dock’s instruction manual for details.
• Set the CD receiver’s Input Display to “DOCK” (see page 30).
Connecting the Power Cord
Note:
• Before connecting the power cord, connect all of your speakers and components.
• Turning on the CD receiver may cause a momentary power surge that might interfere with other electrical equipment
on the same circuit. If this is a problem, plug the CD receiver into a different branch circuit.
• Never disconnect the power cord from the CD receiver while the other end is still plugged into a wall outlet. Doing
so may cause an electric shock. Always disconnect the power cord from the wall outlet first, and then the CD receiver.
• Do not use a power cord other than the one supplied with the CD receiver. The supplied power cord is designed
exclusively for use with the CD receiver and should not be used with any other equipment.

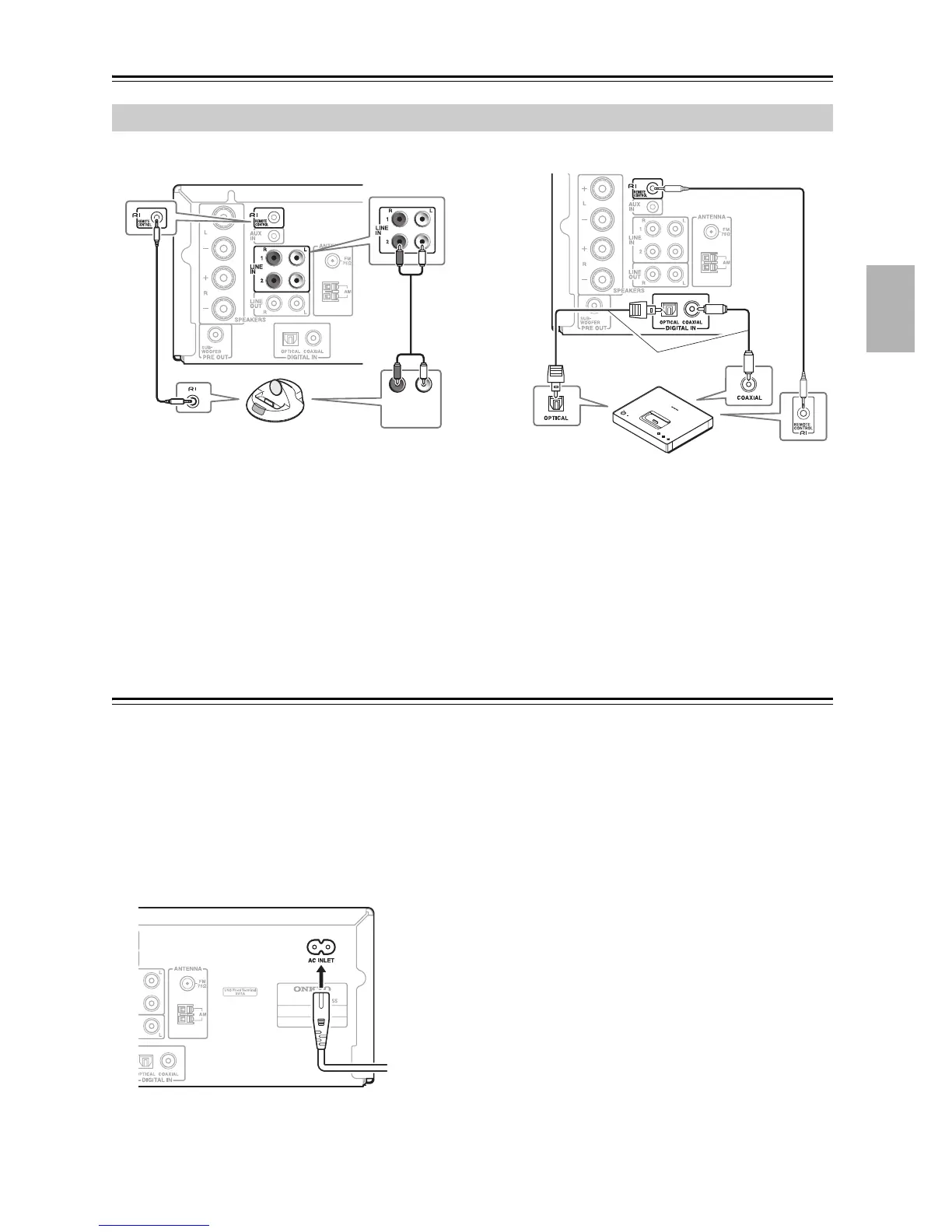

Connecting an Onkyo RI Dock (Remote Interactive Dock)
Y
B
D
N
A
T
S
/
N
O
Y
B
D
N
AT
S
do
P
i
C
P
/
C
N
Y
S
C
N
Y
S
N
U
Connect either of them.
Digital Media Transport
LR
ANALOG
AUDIO OUT
RI Dock
1
Connect the supplied power cord to the CD receiver’s AC INLET.
2
Plug the power cord into an AC wall outlet.
To AC wall outlet
To Next Page
