Getting to Know the CD receiver—Continued
e SLEEP indicator (17)
f Message area
g USB indicator (23)
h FOLDER indicator (18)
i FILE indicator (18)
j TRACK indicator (18)
k DIRECT indicator (16)
l S.BASS indicator (16)
m MUTING indicator (17)
n DISC, TOTAL indicators (18)
o REMAIN indicator (18)
p Auto Standby (ASb) indicator (30)
a SPEAKERS
b u REMOTE CONTROL
This u (Remote Interactive) jack can be
connected to an u jack on Onkyo RI Dock.
c AUX IN
This stereo minijack (ø3.5mm) is for connecting an
audio source.
d LINE IN
These analog audio inputs are for connecting Onkyo
RI Dock and cassette deck, etc.
e FM ANTENNA
AM ANTENNA (CR-555)
f AC INLET
g SUBWOOFER PRE OUT
This jack is for connecting a powered subwoofer.
h LINE OUT
This analog audio output is for connecting a
recorder such as cassette deck.
i DIGITAL IN COAXIAL and OPTICAL
j DAB/FM ANTENNA (CR-555DAB)

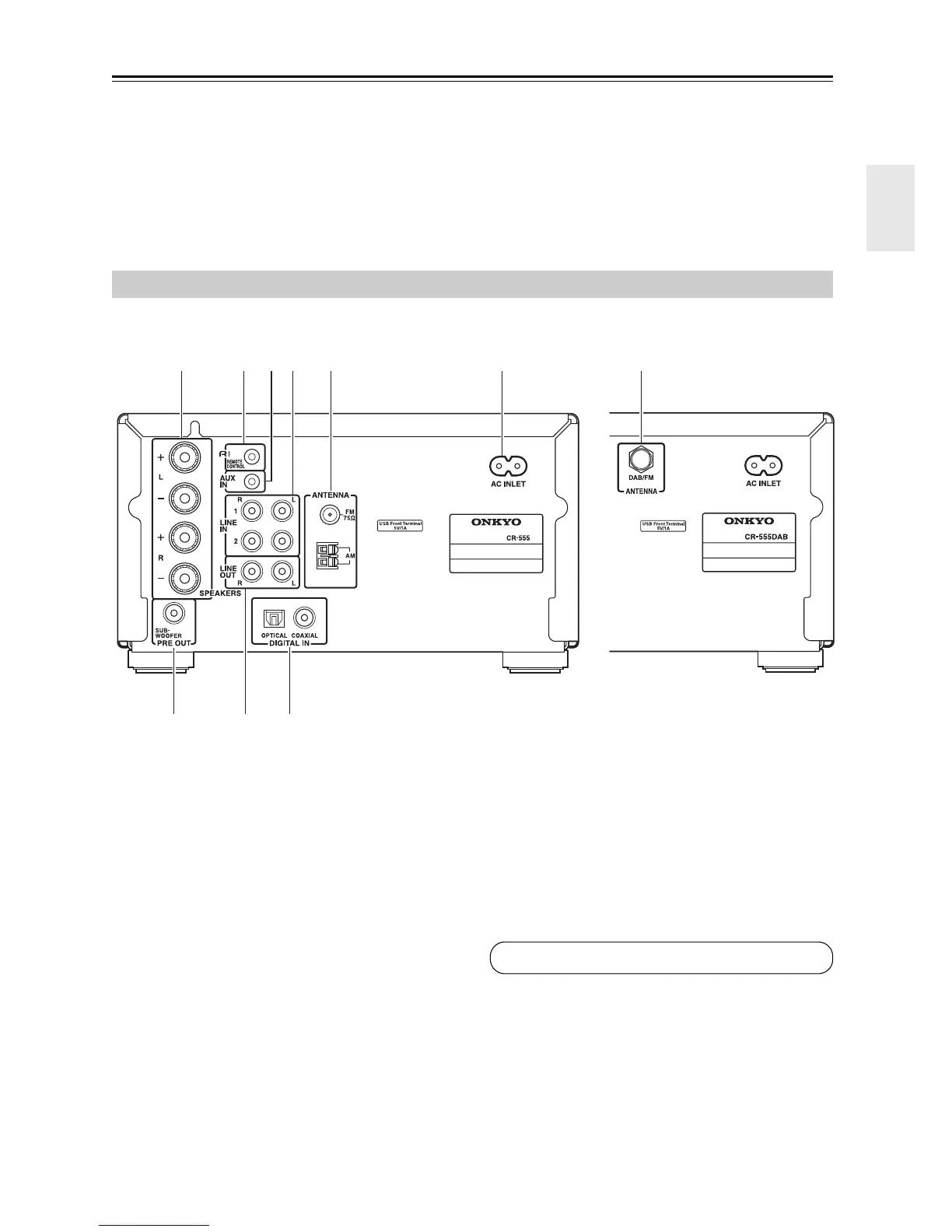

Rear Panel
abcdef
g
hi
(CR-555)
j
(CR-555DAB)
See pages 13–15 for connection information.
