DV-SP406
DECK MECHANISM DISASSEMBLY

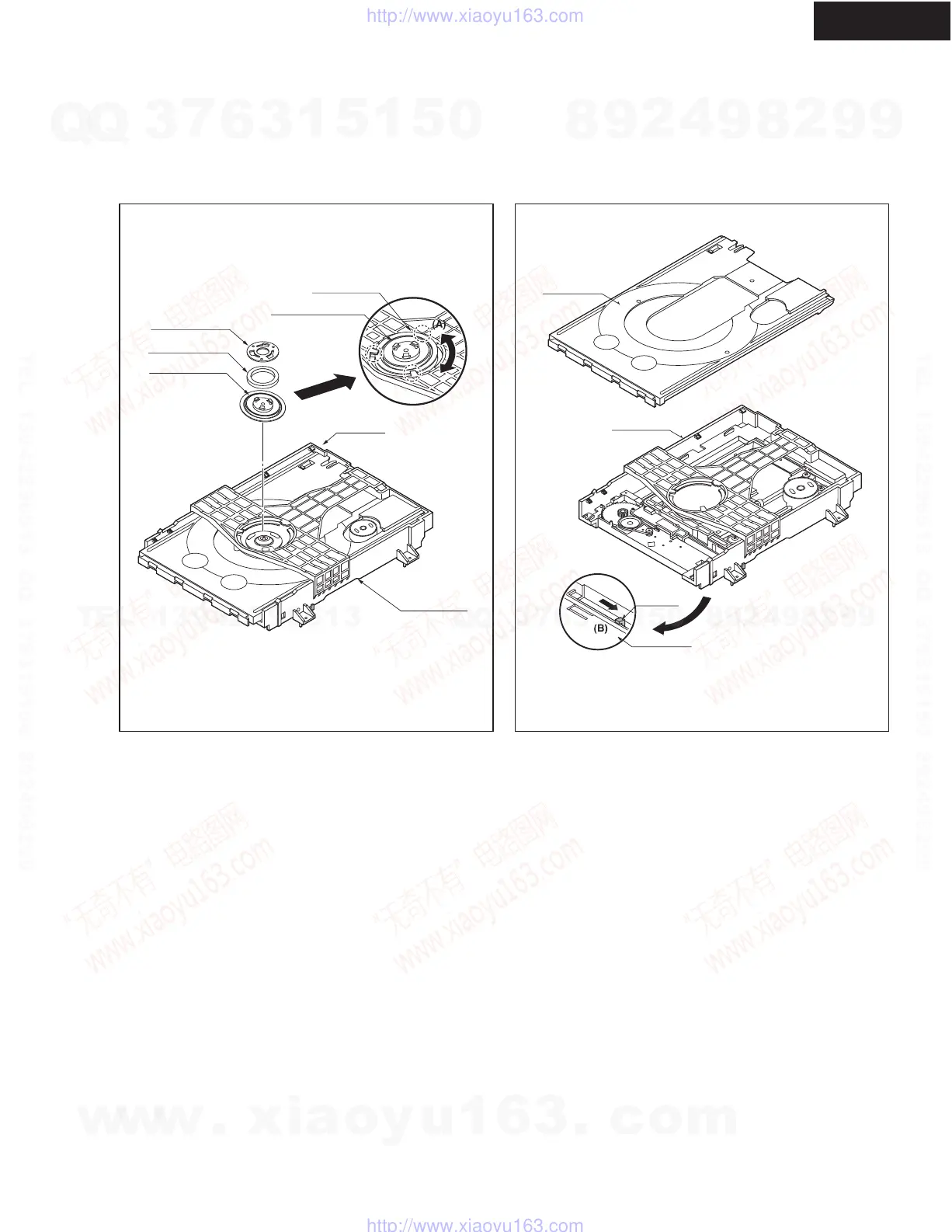

1. MAIN BASE (FIG. 1-1)
1-1. Clamp Assembly Disc
1) Place the Clamp Assembly Disc as Fig. (A)
2) Lift up the Clamp Assembly Disc in direction of
arrow(A).
3) Separate the Clamp Assembly Disc from the
Holder Clamp.
1-1-1. Plate Clamp
1) Turn the Plate Clamp to counterclockwise
direction and then lift up the Plate Clamp.
1-1-2. Magnet Clamp
1-1-3. Clamp Upper
2. TRAY DISC (FIG. 2-1)
1) Insert and push a Driver in the emergency eject
hole(A) at the right side, or put the Driver on the
Lever(B) of the Gear Emergency and pull the
Lever(B) in direction of arrow so that the Tray
Disc is ejected about 15~20mm.
2) Pull the Tray Disc until it is separated from the
Base Main completely.
1-2 .GIF1-1 .GIF
MAIN BASE
PLATE CLAMP
MAGNET CLAMP
CLAMP UPPER
HOLDER
BASE MAIN
(Fig. A)
DISC CLAMP ASSEMBLY
TRAY DISC
BASE MAIN
LEVER
BASE MAIN
BOTTOM SIDE VIEW
