19
OPTICAL COAXIAL
L
R
L
R
SURR
11
+
2
SUB
WOOFER
AC
INLET
REMOTE
CONTROL
DIGITAL OUTPUT
S VIDEO VIDEO
Y
P
B
P
R
COMPONENT
CH 1 CH 2 FRONT SURR 1 CENTER SURR 2
VIDEO
OUTPUT
ANALOG
OUTPUT
MODEL NO. DV
-
SP
800
SACD
&
DVD
AUDIO/VIDEO PLAYER
: Signal flow
Audio connection cables
To audio inputs
z cable
To z jack

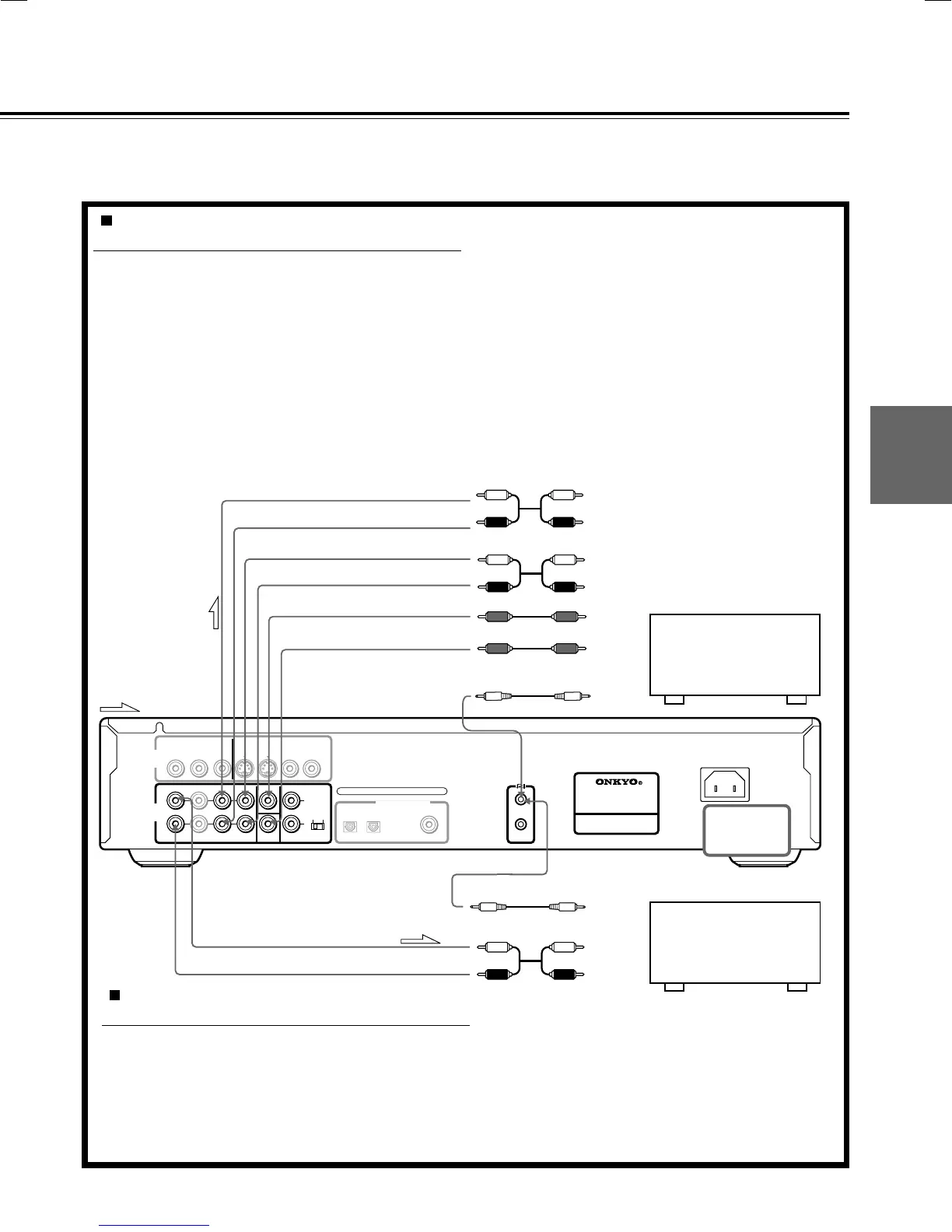

Making discrete 5.1 channel ANALOG
OUTPUT connections
The discrete ANALOG OUTPUT jacks are intended to deliver
up to 5.1 channels of multi channel audio from DVD-Video and
DVD-Audio sources. Connections can be made from the
ANALOG OUTPUT FRONT, SURR 1 (surround), CENTER,
and SUBWOOFER jacks to the corresponding input jacks on
an AV component with multi channel discrete audio input jacks.
An amplifier with 5.1
channel discrete input
DO NOT connect
the mains lead at
this time.
FRONT R
FRONT L
SURROUND L
SURROUND R
CENTER
SUBWOOFER
z cable
To z jack
Audio connection cables
To audio inputs
FRONT R
FRONT L
An amplifier with discrete
2 channel input
Making discrete 2 channel ANALOG
OUTPUT connections
Use a separately sold audio cord to connect ANALOG
OUTPUT CH 1 or CH 2 L/R jacks for stereo sound.
Note
To ensure proper delivery of sound, be sure to match the names of
the jacks on the DVD Player and the component being connected to.
Do not connect the PHONO, or TUNER jacks of other components to
this player.
Notes
• To ensure proper delivery of sound, be sure to match the
names of the jacks on the DVD Player and the component being
connected to.
• When connecting to an amplifier with 5.1 channel analog sound
inputs, connect this unit’s SURR 1 jacks to the amplifier surround
inputs.
(Make sure the SURR 1/1+2 selector switch is set to 1).
• When connecting to an amplifier with 7.1 channel analog sound
inputs, connect this unit’s SURR 2 jacks to the amplifier’s
additional surround inputs.
(Make sure the SURR 1/1+2 selector switch is set to 1+2. The
same audio will be output from SURR 1 and from SURR 2).
To Next Page
