18) Cov-dth
DX-C101

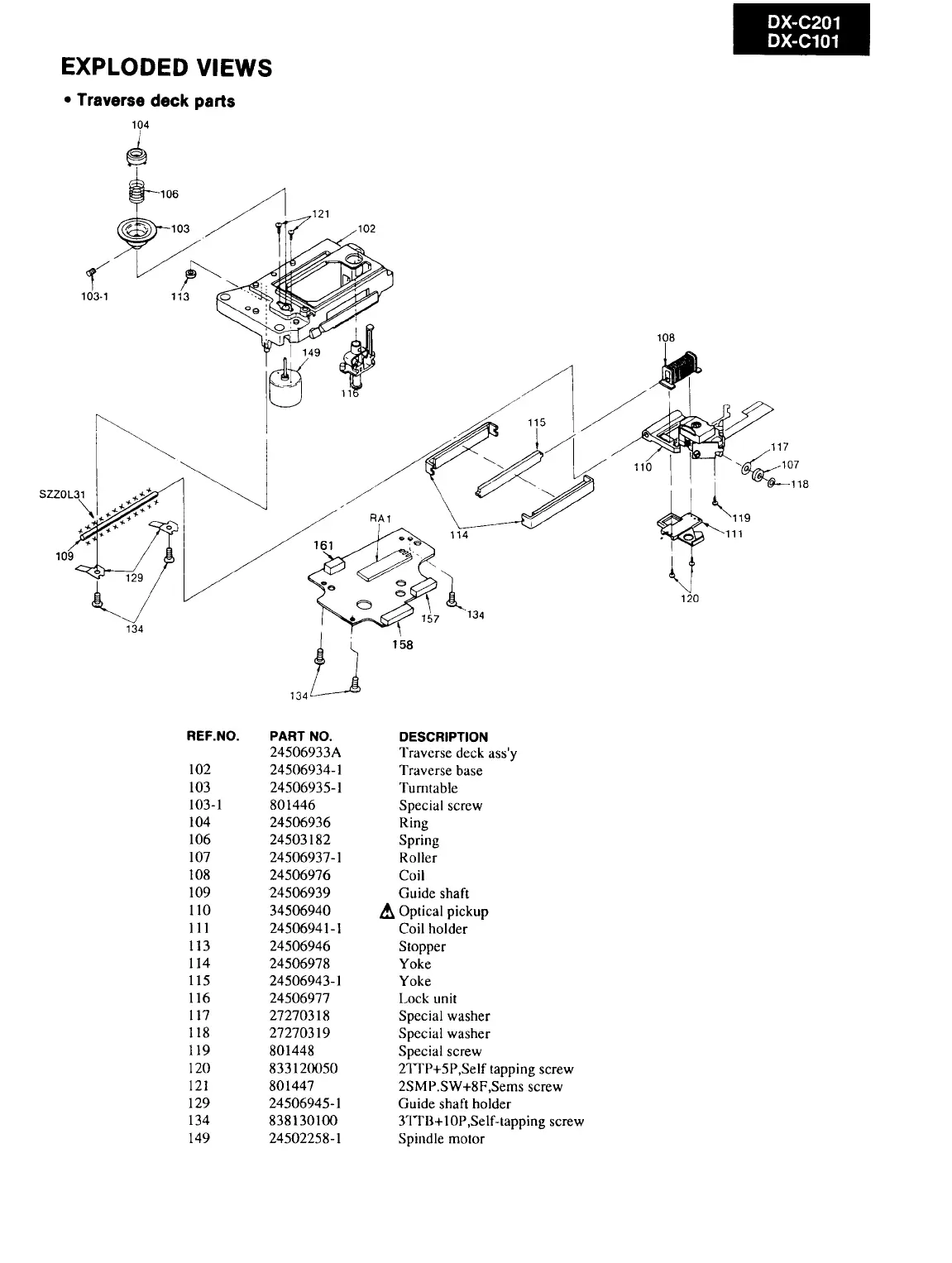

EXPLODED VIEWS
¢ Traverse deck parts
104
SZZOL31
134
REF.NO. PART NO. DESCRIPTION
24506933A Traverse deck ass'y
102 24506934-1 Traverse base
103 24506935-1 Turntable
103-1 801446 Special screw
104 24506936 Ring
106 24503182 Spring
107 24506937-1 Roller
108 24506976 Coil
109 24506939 Guide shaft
110 34506940 A Optical pickup
111 2450694 1-1 Coil holder
113 24506946 Stopper
114 24506978 Yoke
115 24506943-1 Yoke
116 24506977 Lock unit
117 27270318 Special washer
118 27270319 Special washer
119 801448 Special screw
120 833120050 2TTP+5P,Self tapping screw
121 801447 2SMP.SW+8F,Sems screw
129 24506945-1 Guide shaft holder
134 838130100 3TTB+10P,Self-tapping screw
149 24502258-1 Spindle motor
