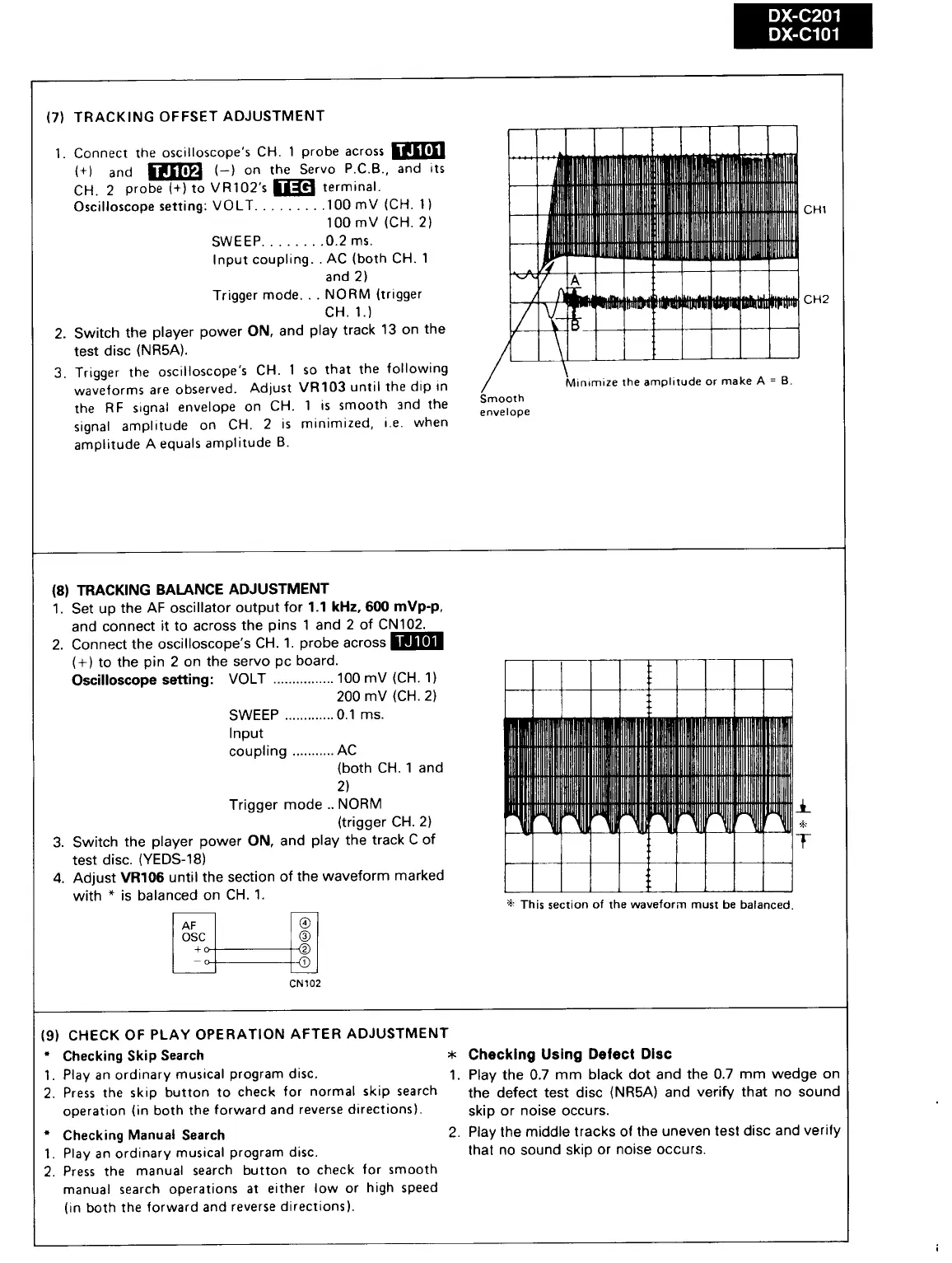

(7) TRACKING OFFSET ADJUSTMENT
. Connect the oscilloscope’s CH. 1 probe across
(+)
and
(—)
on
the
Servo
P.C.B.,
and
its
CH. 2 probe (+) to VR102’s terminal.
Oscilloscope setting: VOLT 100 mV (CH. 1)
100 mV (CH. 2}
SWEEP........ 0.2 ms.
Input coupling. . AC (both CH. 1
and 2)
NORM (trigger
CH. 1.)
.
Switch
the
player
power
ON,
and
play
track
13
on
the
test
disc
(NR5A).
_
Trigger
the
oscilloscope’s
CH.
1
so
that
the
following
waveforms
are
observed.
Adjust
VR103
until
the
dip
in
the
RF
signal
envelope
on
CH.
1
is
smooth
and
the
signal
amplitude
on
CH.
2
is
minimized,
t.e.
when
amplitude
A
equals
amplitude
B.
Trigger mode...
DX-C201
DX-C101
a
EE
TIE A
BE
VN
NE
SN
aw J PC AS ANS AUT me He
PT aD ayite
Minimize the amplitude or make A = B.
Smooth
envelope
(8) TRACKING BALANCE ADJUSTMENT
. Set up the AF oscillator output for 1.1 kHz, 600 mVp-p,
and connect it to across the pins 1 and 2 of CN102.
=
2. Connect the oscilloscope’s CH. 1. probe across
(+) to the pin 2 on the servo pc board.
Oscilloscope setting: VOLT .............. 100 mV (CH. 1)
200 mV (CH. 2)
SWEEP. ............- 0.1 ms.
Input
coupling ........... AC
(both CH. 1 and
2)
Trigger mode ..NORM
(trigger CH. 2)
Switch the player power ON, and play the track C of
test disc. (YEDS-18)
Adjust VR106 until the section of the waveform marked
with * is balanced on CH. 1.
w
>
OSC
[
LOIS)
io)
Z2 ° 102
(9)
CHECK
OF
PLAY
OPERATION
AFTER
ADJUSTMENT
* Checking Skip Search
1. Play an ordinary musical program disc.
2. Press the skip button to check for normal skip search
operation (in both the forward and reverse directions).
*
Checking Manual Search
. Play an ordinary musical program disc.
Press the manual search button to check for smooth
manual search operations at either low or high speed
(in both the forward and reverse directions).
N=
= *
nN
a
cj: A
LE A
a a een
al ial alla || lla a | a hg | lalall PN il jt Al ,
* This section of the waveform must be balanced.
Checking Using Defect Disc
. Play the 0.7 mm black dot and the 0.7 mm wedge on
the defect test disc (NR5A) and verify that no sound
skip or noise occurs.
Play the middle tracks of the uneven test disc and verify
that no sound skip or noise occurs.
