En-11
Connections
Connecting the AV
Receiver
Connecting the Speaker Cables

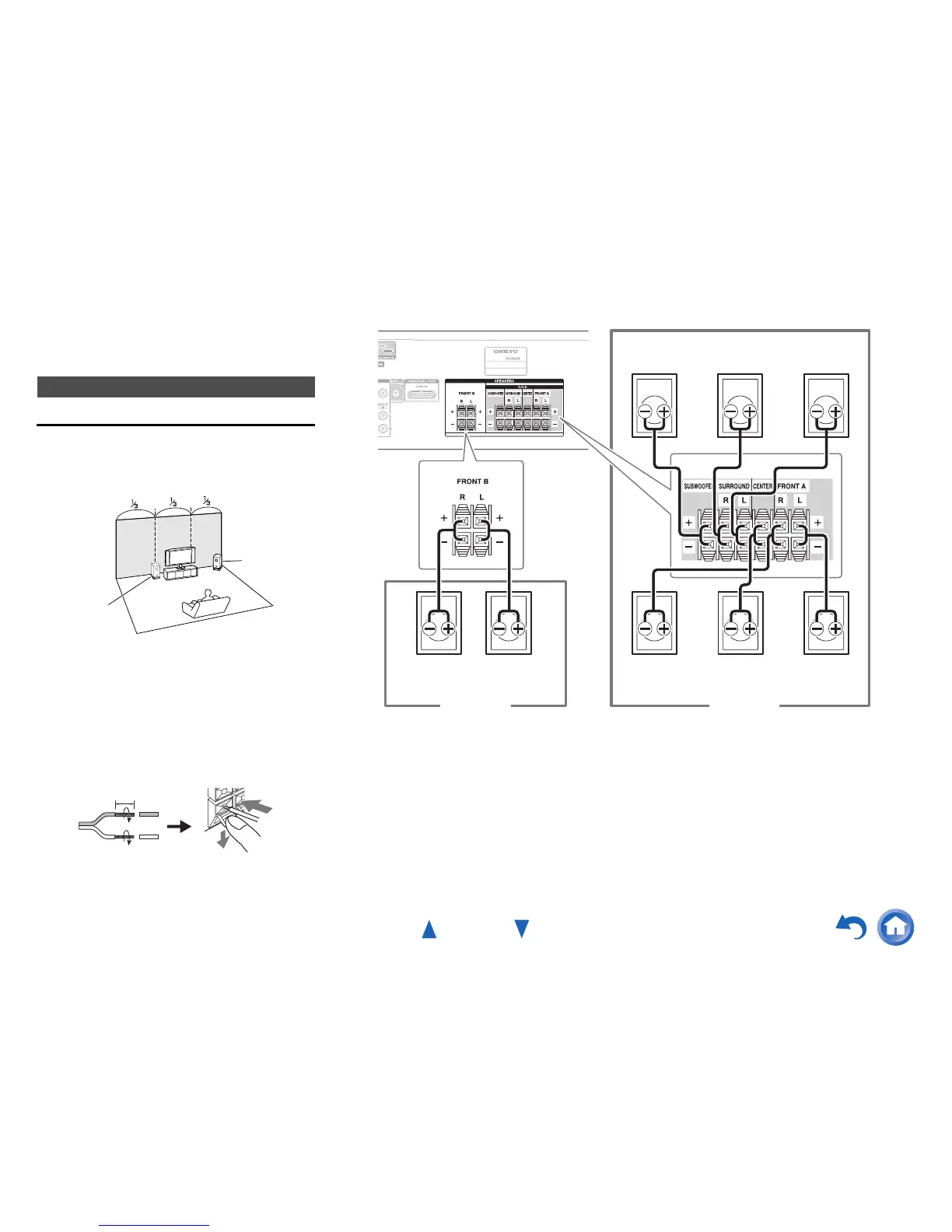

The following illustration shows how to connect the
speakers to each pair of terminals.
■ Using a Passive Subwoofer
To find the best position for your subwoofer, while playing
a movie or some music with good bass, experiment by
placing your subwoofer at various positions within the
room, and choose the one that provides the most satisfying
results.
■ Push-type speaker terminals
Strip 10 to 12 mm of insulation from the ends of the
speaker cables, and twist the bare wires tightly, as shown
(Supplied speaker cables are already stripped).
Connecting Your Speakers
Corner
position
1/3 of wall
position
10 to 12 mm
Surround
right
Surround
left
Front B right Front B left Front A leftFront A right Center
Speakers ASpeakers B
Passive
Subwoofer
To Next Page
