a DIGITAL IN COAXIAL and OPTICAL jacks
b COMPONENT VIDEO IN and OUT jacks
c HDMI IN and OUT jacks
d FM ANTENNA jack and AM ANTENNA terminal
e UNIVERSAL PORT jack
f SPEAKERS terminals
(FRONT A, CENTER, SURROUND,
SUBWOOFER, FRONT B)
g Power cord
h uREMOTE CONTROL jack
i Composite video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN,
GAME IN, TV/CD IN)
j MONITOR OUT V jack

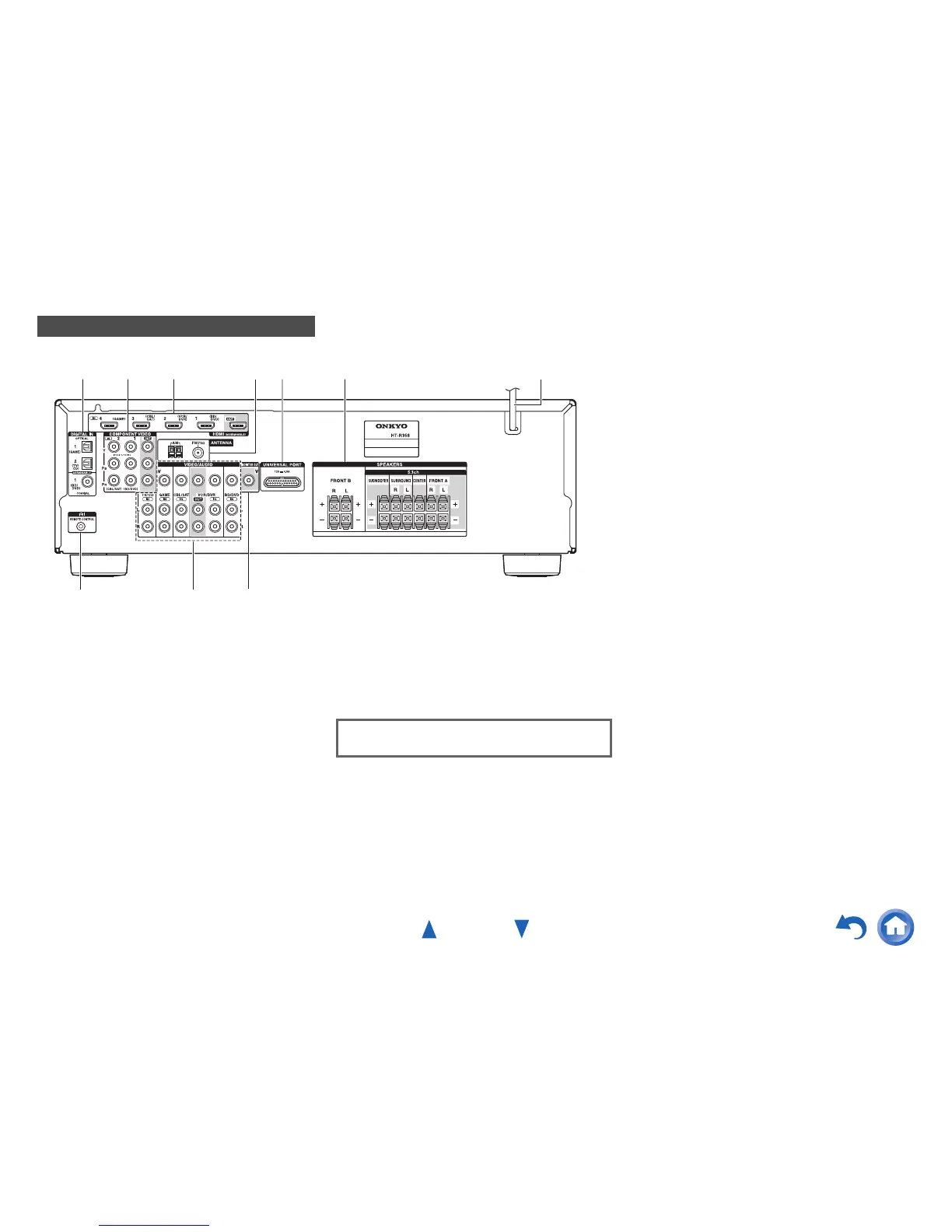

Rear Panel
a b c
d
g
e
f
h
i j
See “Connecting the AV Receiver” for connection
(➔ pages 11 to 17).
To Next Page
