Onkyo HT-R393 User Manual

15
1
46
8
2 3 5 7
9FG H
(Taiwanese models)

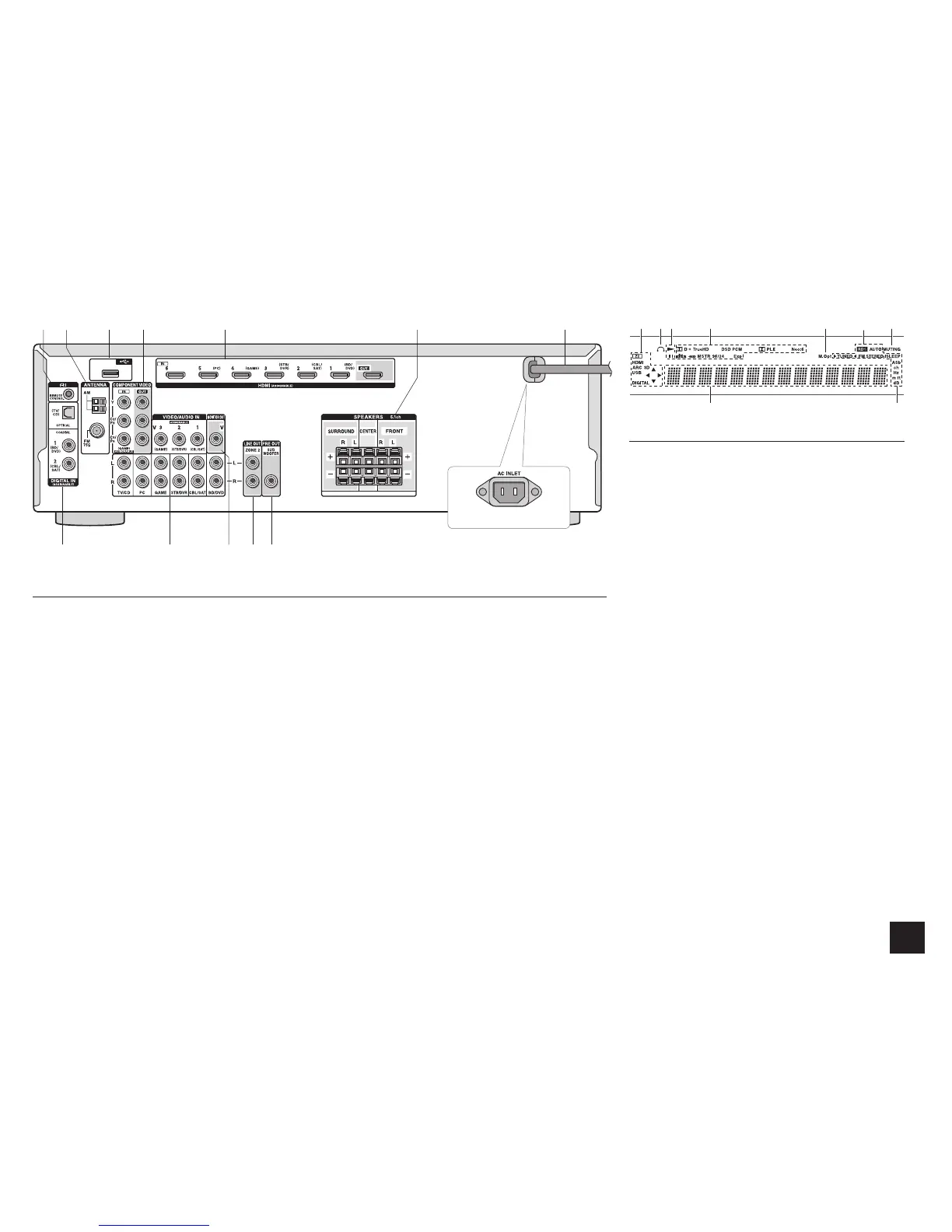

Rear Panel
1
RI REMOTE CONTROL jack: An Onkyo product with RI
jack can be connected and synchronized with this unit.
2
(/#06'00#LCEMŝCPF#/#06'00#
terminal: The supplied antennas are connected.
3
USB port: A USB storage device is connected so that
music files stored in it can be played.
4
COMPONENT VIDEO IN and OUT jacks: Component
video input/output jacks
5
HDMI IN/OUT jacks: Digital video signals and audio
signals are transmitted between the unit and the
connected devices.
6
SPEAKERS terminals: Speakers are connected.
7
Power cord (North American, European, Australian
and Asian models)
AC INLET (Taiwanese model): The power cord is
connected.
8
DIGITAL IN COAXIAL/OPTICAL jacks: Digital audio
signals are input.
9
Composite VIDEO/AUDIO IN jacks: Analog video
signals and audio signals are input.
F
Composite MONITOR OUT V jack: Video signals are
output to the connected monitor or TV.
G
LINE OUT ZONE 2 jacks: Audio output jacks connected
to the pre-main amplifier for multi-zone playback in a
separate room.
H
PRE OUT SUBWOOFER jack: A subwoofer with built-in
amplifier is connected.
14 623 75
98
Display
1
Lights in the following conditions. "Z2": ZONE 2 output
is on. / "HDMI": HDMI signals are input and HDMI input
selector is selected. / "ARC": Audio signals are input
from ARC compatible TV and TV/CD input selector
is selected. / "3D": Input signals are 3D. / "USB" (
¼
):
"USB" input is selected and USB storage device is
connected. / "DIGITAL": Digital signals are input and
the digital input selector is selected. / Cursor indicators:
USB is controlled.

¼
"USB" will flash if the connection is not correct.
2
Lights when headphones are connected.
3
Lights when USB is controlled.
4
Lights according to the type of input digital signals and
the listening mode.
5
Lights when Music Optimizer is enabled.
6
Lights in the following conditions. "AUTO": Tuning mode
is auto. / "
f
TUNED
e
": Receiving AM/FM radio.
fe
flashes while tuning is automatically performed. / "FM
STEREO": Receiving FM stereo. / "RDS" (European,
Australian and Asian models): Receiving RDS
broadcasting.
7
"MUTING": Flashes when muting is on.
8
Lights in the following conditions. "SLEEP": Sleep timer
has been set. / "ASb" (Auto Standby): Auto Standby
is on. / "ch": Channel is being set. / "Hz": Crossover
frequencies are being set. / "m ft": Speaker distances
are being set. / "dB": Speaker volume is being set.
9
Displays various information of the input signals.
Pressing DISPLAY displays the type of input digital
signals and the listening mode.
