Connecting your equipment
2
2
13
2
31
4
Connecting your component with no HDMI
terminal

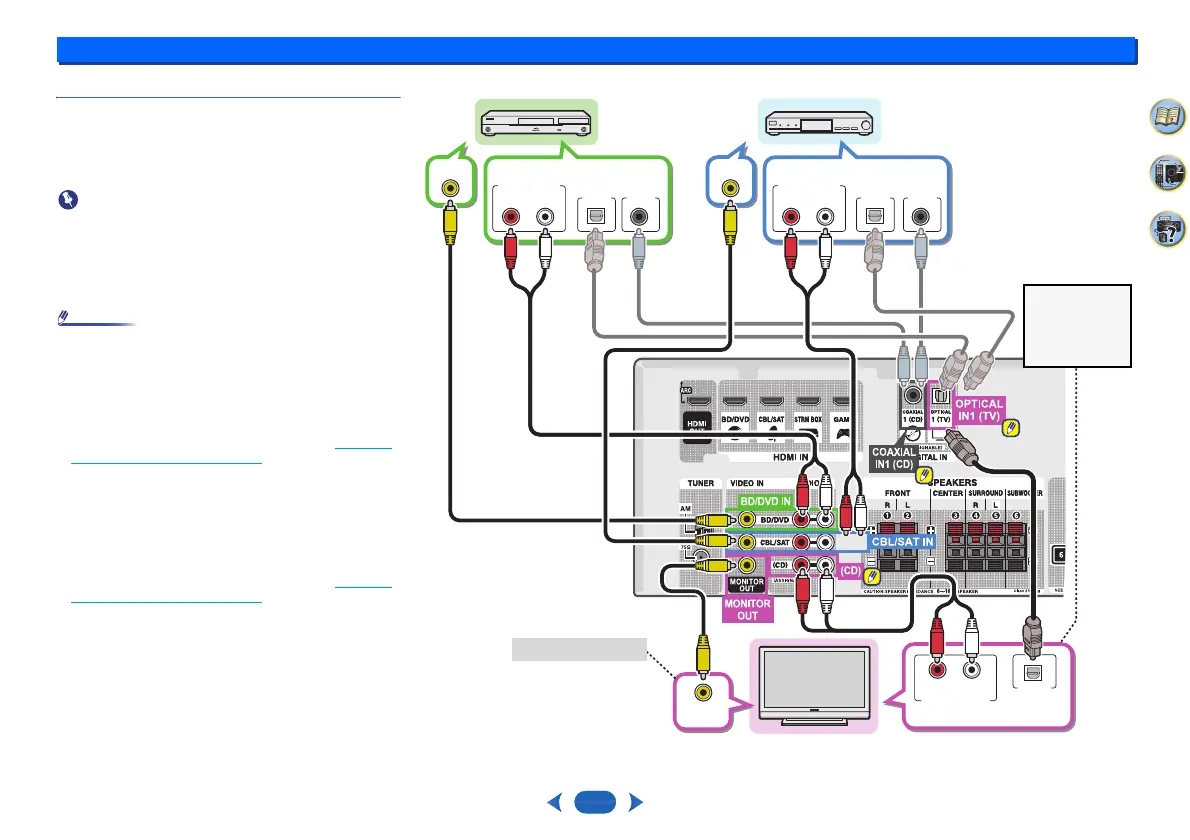

This diagram shows connections of a TV and Blu-ray Disc/
DVD player (or other playback component) with no HDMI
terminal to the receiver.
•
When the receiver and TV are connected by composite
cable, the OSD function allowing display of the receiver’s
settings, operations, etc., on the TV’s screen cannot be
used. In this case, watch the receiver’s front panel display
while performing the various operations and making
settings.
•
You can only connect one component to the optical input
terminal. If connecting other devices, please use a
different method to connect the audio.
In order to listen to the audio from the source component
that is connected to this receiver using an optical cable,
first, switch to the BD/DVD (Blu-ray Disc/DVD player) or
CBL/SAT (set-top box), then press
AUDIO SEL
to
choose the audio signal O1 (OPTICAL1) (see Selecting
the audio input signal on page 16.
•
You can only connect one component to the coaxial input
terminal. If connecting other devices, please use a
different method to connect the audio.
In order to listen to the audio from the source component
that is connected to this receiver using a coaxial cable,
first, switch to the BD/DVD (Blu-ray Disc/DVD player) or
CBL/SAT (set-top box), then press
AUDIO SEL
to
choose the audio signal C1 (COAXIAL1) (see Selecting
the audio input signal on page 16.
VIDEO OUT
DIGITAL AUDIO OUT
OPTICAL
COAXIAL
RL
ANALOG AUDIO OUT
DIGITAL AUDIO OUT
OPTICAL
COAXIAL
RL
ANALOG AUDIO OUT
VIDEO OUT
VIDEO IN
DIGITAL AUDIO OUT
OPTICAL
RL
ANALOG AUDIO OUT
Select one
TV
Blu-ray Disc/DVD
player
Select one
This connection is
required in order
to listen to the
sound of the TV
over the receiver.
Select one
Set-top box
OSD cannot be output.
To Next Page
