Onkyo HT-R520 Service Manual

REMOTE CONTROLLERS-5
RC-567M/569M/570M
TX-SR502/E/8250/HT-R520
CD
+
10 0
CLEAR
123
456
789
V1 V2 V3
DVD MULTI CH
--/---
TAPE TUNER
INPUT
I
+
-
ENTER
S
E
T
U
P
G
U
I
D
E
R
E
T
U
R
N
E
X
I
T
CINE FLTR
LEVEL - LEVEL + CH SEL TEST TONE
DSP
DIRECT
STEREO
ALL ST SURR
L NIGHT
T
O
P
M
E
N
U
M
E
N
U
VOL
+
-
CDR
SAT
AMP
+
_
TV VCR CABLE
DVD CD MD
DISC
CH
TONE
TUNER/
TAPE
DISPLAY
TV
INPUT
PREV
CH
DIMMER SLEEP
RANDOM
SP A SP B
MUTING
ANGLE
SEARCH
SUBTITLEAUDIO
MEMORYA
-
BREPEAT
ON STANDBY
T
V
TV CH
T
V VOL
RC-567M
REC
LAST M
REMOTE MODE
OPEN
/
CLOSE
DSP
VIDEO OFF
LEVEL - LEVEL +
MD
TAPE
CDR
1
10
11
5
12
6
13
7
14
8
15
16
2
3
4
1
5
2
6
3
7
4
8
9

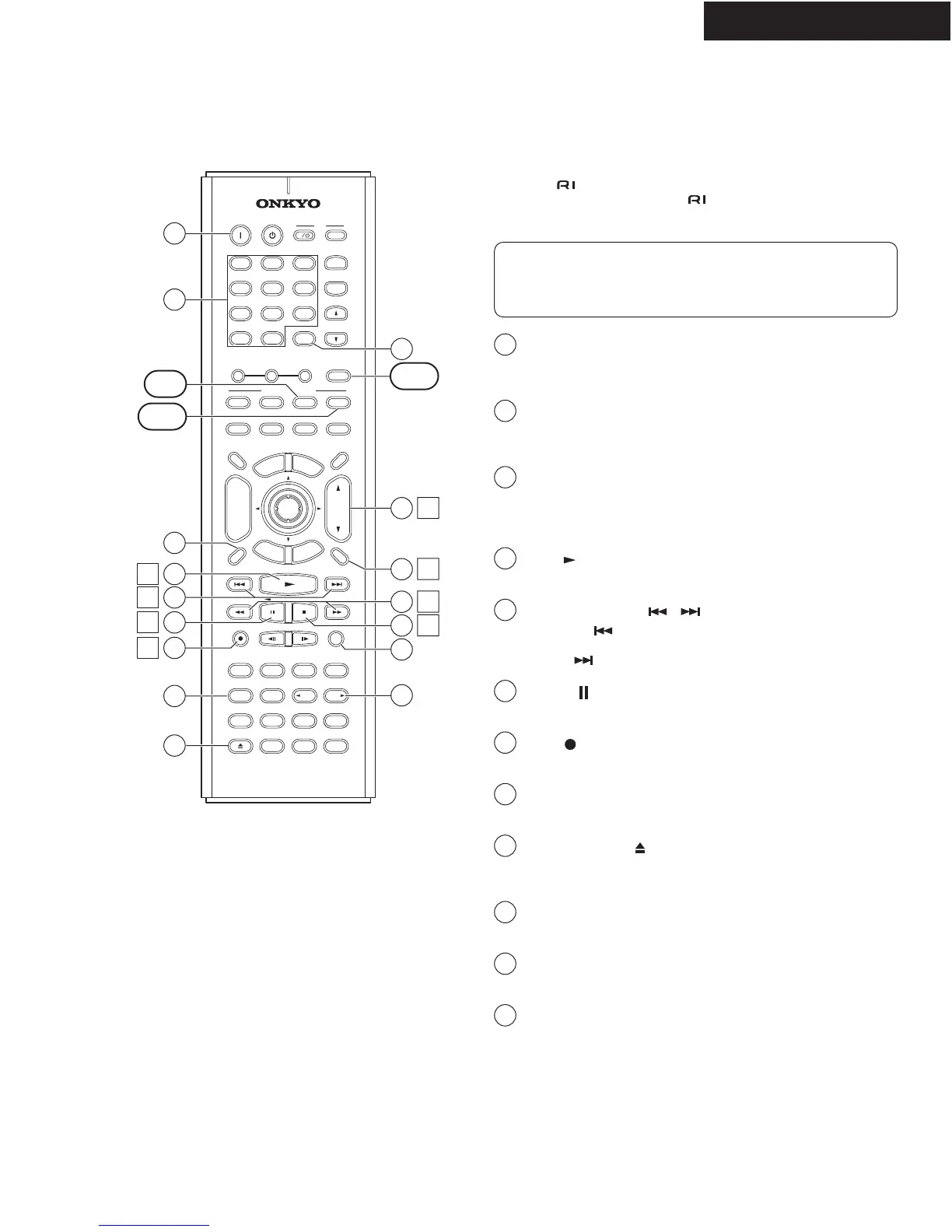

MD Mode & CDR Mode
MD mode is used to control an Onkyo MiniDisc recorder connected to
the unkt via . CDR mode is used to control an Onkyo
CD recorder connected to the unit via .
To select MD mode, press the [MD] mode button. To select CDR mode,
press the [CDR] mode button.
ON button
This button is used to set the MiniDisc recorder or CD recorder to On or
Standby.
1
Number buttons
These buttons are used to enter track numbers and to enter times for
locating specific points in time.
2
DISPLAY button
This button is used to display information about the current disc or track
on the MD/CDR recorder's display, including the elapsed time,
remaining time, total time, and so on.
3
Play [ ] button
This button is used to start playback.
4
Previous & Next [ ]/[ ] buttons
The Previous [ ] button is used to select the previous track.
During playback it selects the beginning of the current track.
The Next [ ] button is used to select the next track.
5
Pause [ ] button
This button is used to pause playback.
6
REC [ ] button
This button is used to start recording.
7
REPEAT button
This button is used to set the repeat playback functions.
8
OPEN/CLOSE [ ] button
This button is used to eject the MiniDisc or open and close the disc tray
of the CD recorder.
9
CLEAR button
This button is used to cancel functions and to clear entered numbers.
10
VOL button
This button is used to set the volume of the unit.
11
MUTING button
This button is used to mute the unit.
12
Before selecting MD or CDR mode and starting playback, you
should press the [AMP] mode button followed by the [TAPE]
input selector button to select your MiniDisc or CD recorder as
the input source.
