Front & Rear Panels
The page numbers in parentheses show where you can find the main explanation for each item.
A
STANDBY/ON button (37)
This button is used to set the AV receiver to On or
Standby.
B
STANDBY indicator (37)
This indicator lights up when the AV receiver is in
Standby mode, and it flashes while a signal is being
received from the remote controller.
C
Remote control sensor (12)
This sensor receives control signals from the remote
controller.
D
Display
See “Display” on page 9.
E
Input selector buttons (45)
These buttons are used to select from the following
input sources: MULTI CH, DVD, VIDEO 1,
VIDEO 2, VIDEO 3, VIDEO 4, TAPE, TUNER or
CD.
The [MULTI CH] button selects the DVD analog
multichannel input.
F
RETURN button
This button is used to return to the previously dis-
played onscreen setup menu.

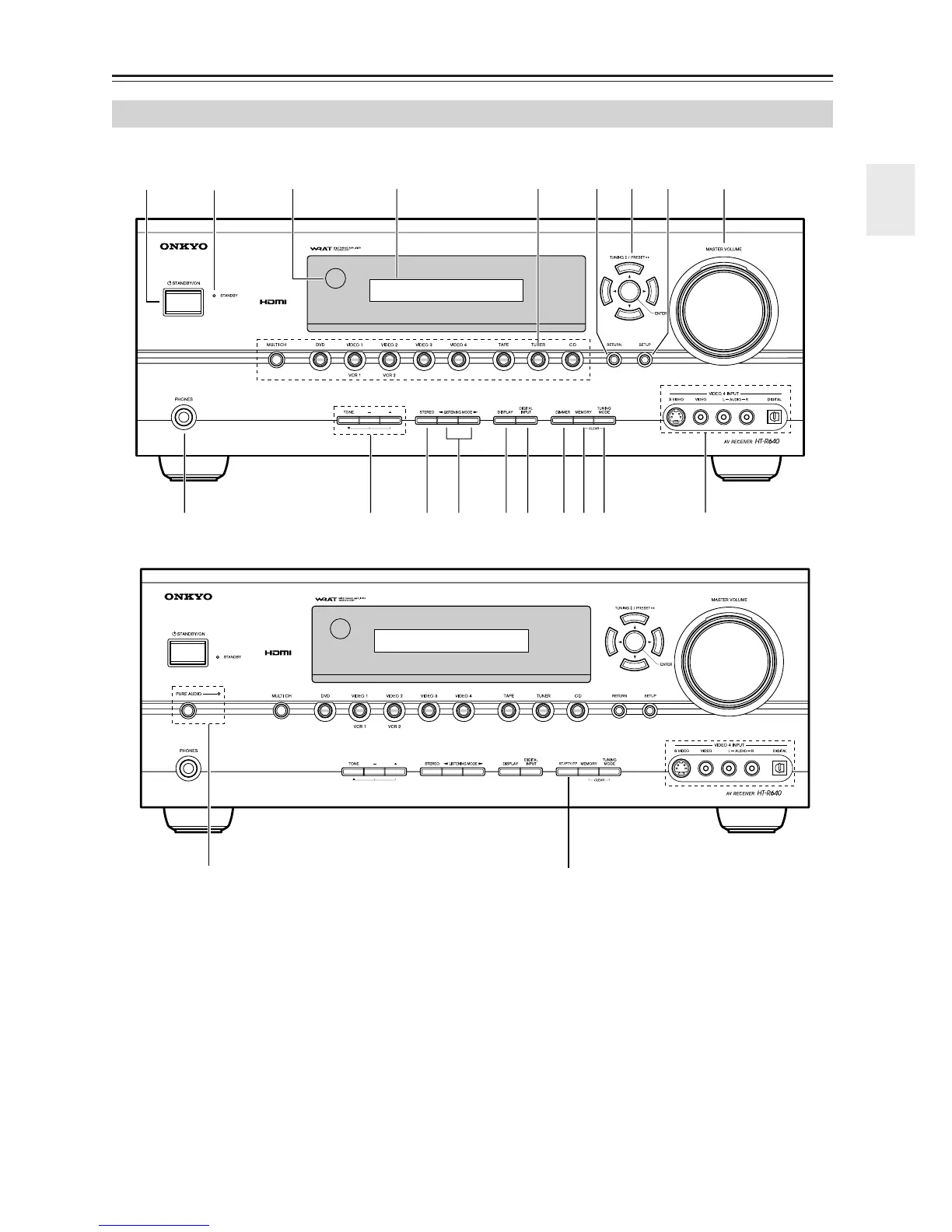

Front Panel
89
A
BCDEGIFH
0
1 2
6
3
457
J
C
North American models
Other models
(European models only)
