Connections
Connecting the AV Receiver
Connecting the Speaker Cables

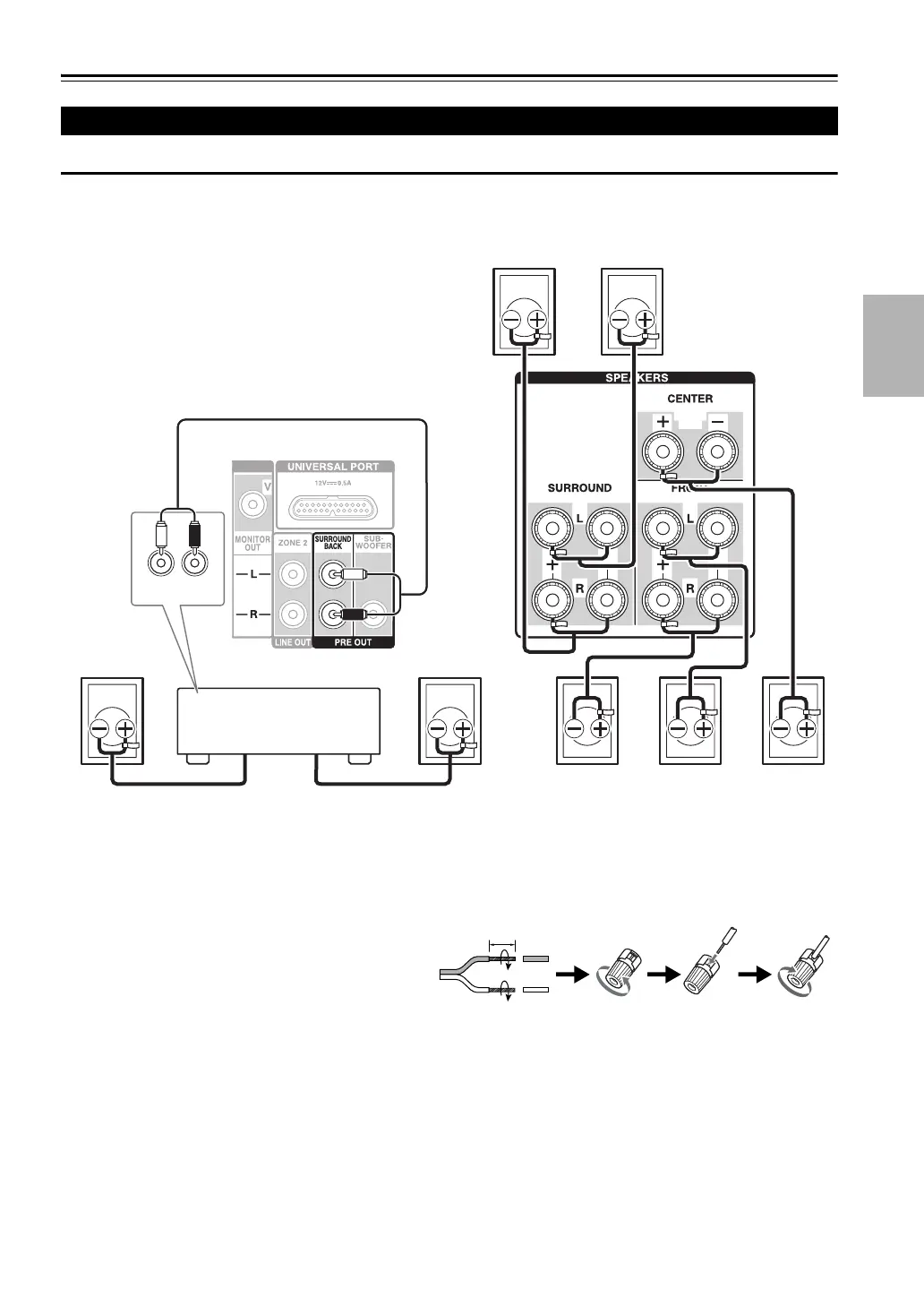

The following illustration shows which speaker should be connected to each pair of terminals. If you’re using only one
surround back speaker, connect it to the SURROUND BACK L PRE OUT jack.
Connect your Power amplifier’s analog audio input jacks to the AV receiver’s SURROUND BACK L/R PRE OUT
jacks with audio cables.
■ Screw-type speaker terminals
Strip 12 to 15 mm of insulation from the ends of the
speaker cables, and twist the bare wires tightly, as
shown.
Connecting Your Speakers
AUDIO
INPUT
LR
Front left Center
Surround
right
Front right
Surround
back right
Surround
back left
Surround
left
Power amplifier
12 to 15 mm
