Onkyo HT-R648 User Manual

7
En
Front & Rear Panels
The page numbers in parentheses show where you can find the main explanation for each item.
a 8ON/STANDBY button (19)
b ZONE 2, OFF buttons (52)
c Remote control sensor (4)
d Display (8)
e LISTENING MODE buttons (31)
f RT/PTY/TP button (27)
g MEMORY button (26)
h TUNING MODE button (25)
i DISPLAY button (36)
j SETUP button (39)
k TUNING, PRESET (25 to 26), arrow and ENTER
buttons
l RETURN button
m MASTER VOLUME control (20)
n PURE AUDIO button and indicator (31)
o PHONES jack (37)
p TONE and Tone Level buttons (50)
q Input selector buttons (20)
r AUX INPUT AUDIO/VIDEO jacks (16)
s USB port (16)
t SETUP MIC jack (28)
u HDMI THRU indicator (48)

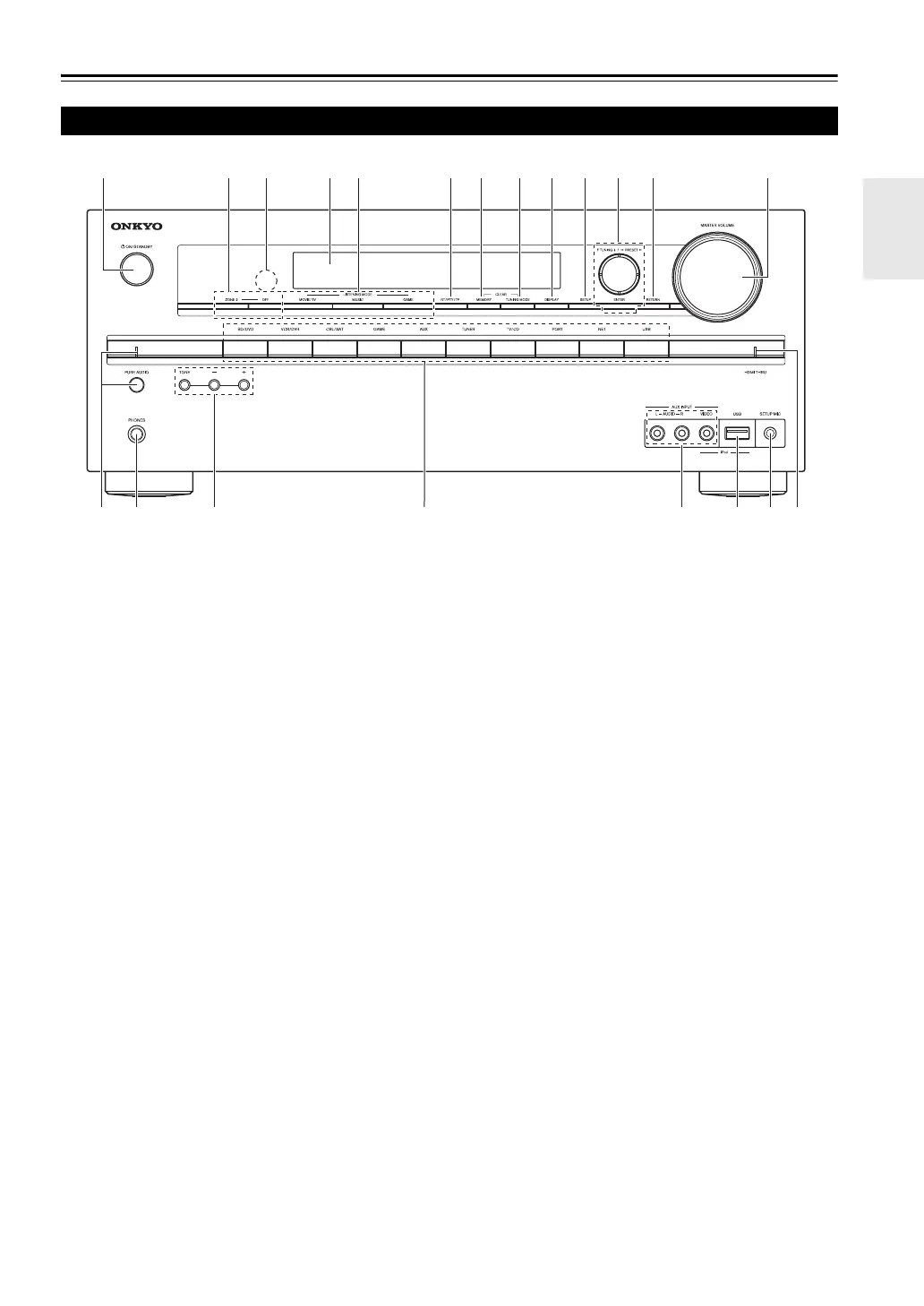

Front Panel
a
q
s
ce
dfghijklm
o p
t
b
u
r
n
