Onkyo HT-R997 User Manual

5

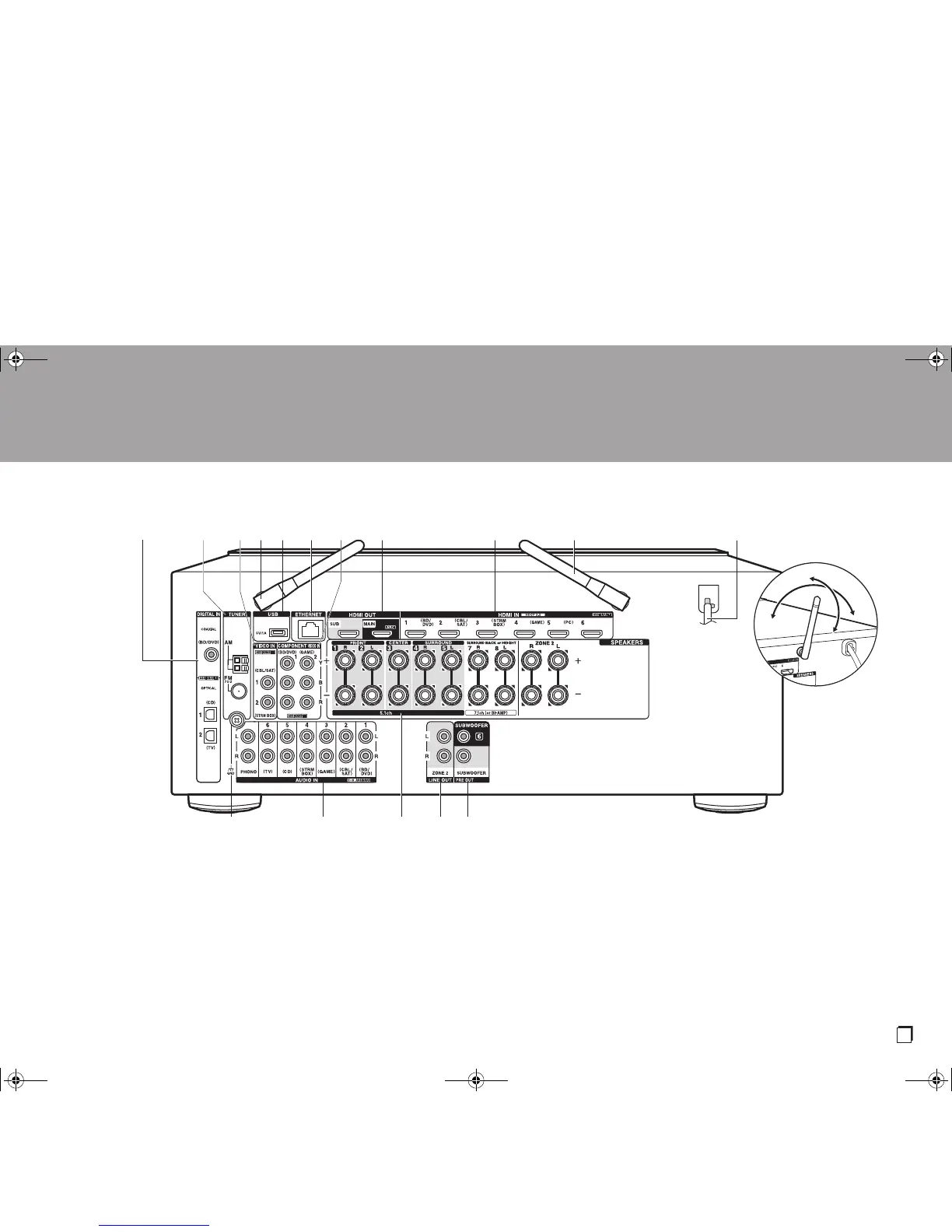

Rear Panel
1. DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV component digital audio signals
with a digital optical cable or digital coaxial cable.
2. TUNER AM/FM 75Ω terminal: The supplied antennas are connected.
3. VIDEO IN jacks: Input the AV component video signals with an analog video cable.
4. Wireless antenna: Used for Wi-Fi connection or when using a BLUETOOTH wireless
technology enabled device. Adjust their angles according to the connection status.
5. USB port: A USB storage device is connected so that music files stored in it can be
played. You can also supply power (5 V/1 A) to USB devices with a USB cable.
6. ETHERNET port: Connect to the network with an Ethernet cable.
7. COMPONENT VIDEO IN jacks: Input the AV component video signals with a component
video cable. (Compatible only with 480i or 576i resolution.)
8. HDMI OUT jacks: Transmit video signals and audio signals with a HDMI cable connected
to a monitor such as a TV or projector.
9. HDMI IN jacks: Transmit video signals and audio signals with a HDMI cable connected to
an AV component.
10. Power cord
11. GND terminal: The ground wire of the turntable is connected.
12. AUDIO IN jacks: Input TV or AV component audio signals with an analog audio cable.
13. SPEAKERS terminals: Use a speaker cable to connect multichannel speakers for the
main room and speakers for a separate room (ZONE 2). (Compatible with banana plugs)
14. ZONE 2 LINE OUT jack: Output audio signals with an analog audio cable to a pre-main
amplifier in a separate room (ZONE 2).
> Before Start >Part Names > Install > Initial Setup > Playback
180°
90°
     
 


(*)You can find details in the Advanced Manual.
En
SN29402830_HT-R997_BAS_En_1703XX.book 5 ページ ２０１７年３月１７日 金曜日 午前９時１８分

Onkyo HT-R997 Specifications

General

Audio output channels	7.1 channels
Audio formats supported	AIFF, ALAC, FLAC, WAV
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
AM band range	530 - 1710 kHz
FM band range	87.5 - 107.9 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Product color	Black
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.15 W
Power consumption (typical)	580 W
Subwoofer frequency range	20 - 100 Hz
Center speaker sensitivity	83 dB
Satellite speaker sensitivity	81 dB
Package weight	63000 g
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
HDMI in	7
Component video (YPbPr/YCbCr) in	2
Disc types supported	No
Optical disc player type	Not included

Weight and Dimensions

Main unit weight	10000 g
Subwoofer weight	15500 g
Satellite speaker weight	3500 g
Main unit dimensions (WxDxH)	435 x 378 x 173.5 mm
Subwoofer dimensions (WxDxH)	380 x 429 x 444 mm
Front speaker dimensions (WxDxH)	158 x 199 x 433 mm
Center speaker dimensions (WxDxH)	433 x 199 x 158 mm
Satellite speaker dimensions (WxDxH)	200 x 169 x 275 mm
