The speakers can easily be wall mounted by using the key-
hole slots. To prevent the speaker from vibrating against
the wall, attach two of the supplied thick rubber stoppers
to the rear of each speaker.
To mount the front, surround and surround back speakers
vertically, use the keyhole slot shown to hang each speaker
on a screw that’s securely screwed into the wall.
Front speakers (SKF-580)
Surround speakers/Surround back speakers
(SKR-580/SKB-580)
To mount the center speaker horizontally, use the two key-
hole slots shown to hang each speaker on two screws that
are securely screwed into the wall.
Center speaker (SKC-580)
Caution
• A mounting screw’s ability to support a speaker depends
on how well it’s anchored to the wall. If you have hollow
walls, screw each mounting screw into a stud. If there are
no studs, or the walls are solid, use suitable wall anchors.
• Use screws with a head diameter of 5/16" (9 mm) or less
and a shank diameter of 1/8" (4 mm) or less. With hol-
low walls, use a cable/pipe detector to check for any
power cables or water pipes before making any holes.
• Leave a gap of between 3/16"
(5 mm) and 7/16" (10 mm)
between the wall and the base
of the screw head, as shown.
(We recommend that you con-
sult a home installation profes-
sional.)
We recommend using the provided rubber stoppers to
achieve the best possible sound from your speakers. The
rubber stoppers prevent the speakers from moving, provid-
ing a more stable platform. Use thick stoppers for the cen-
ter speaker.
If the subwoofer is placed on a hard floor (wood, vinyl,
tile, etc.) and playback is very loud, the subwoofer’s feet
may damage the flooring. To prevent this, place the sup-
plied pads underneath the subwoofer’s feet. The pads also
provide a stable base for the subwoofer.

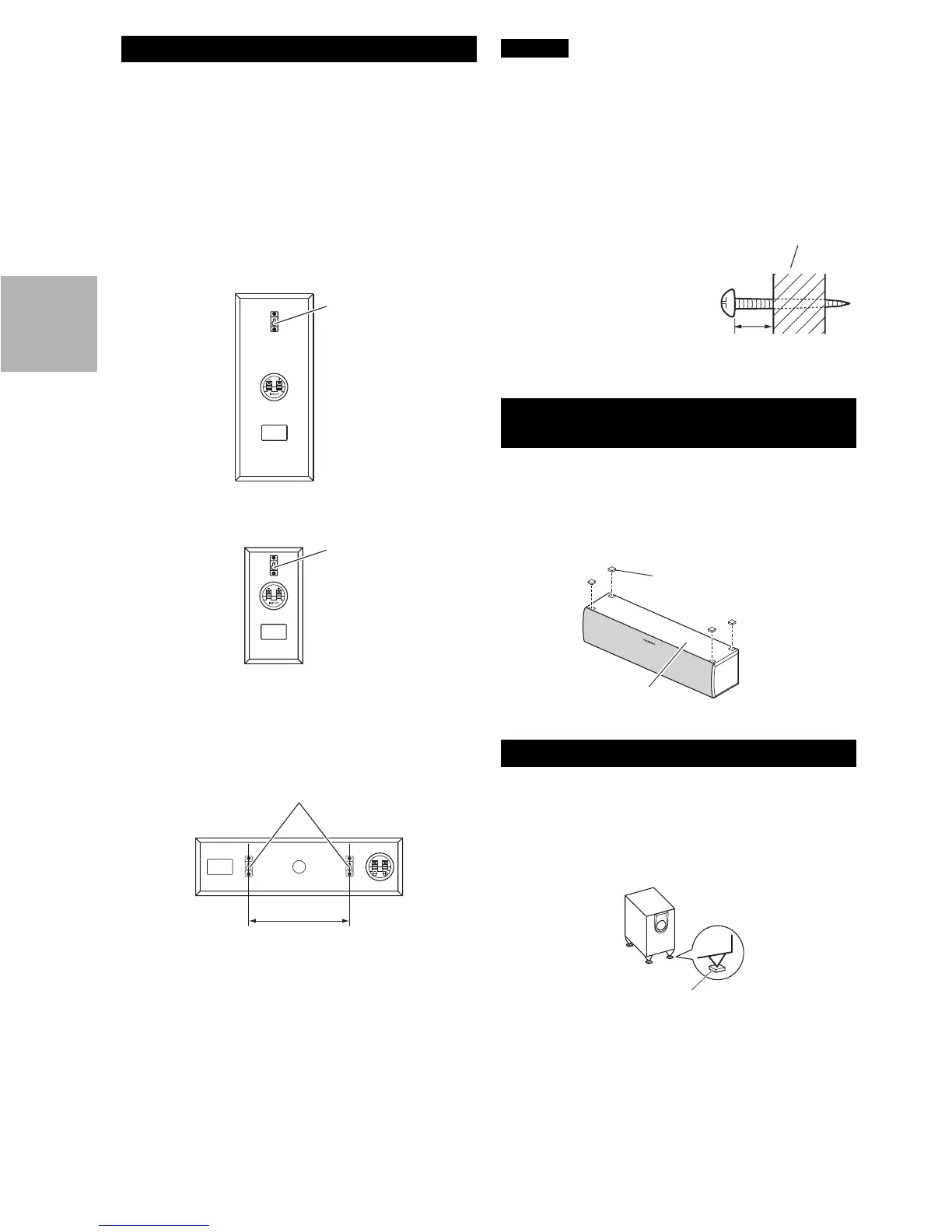

Wall Mounting
Keyhole slot for wall
mounting
Keyhole slot for wall
mounting
Keyhole slot for wall mounting
7-7/8" (200 mm)
Using the Rubber Stoppers for a More
Stable Platform
Using the Floor Pads for Subwoofer
Wall
3/16
" to 7/16"
(5 mm to 10 mm)
Thick rubber stoppers
Bottom of the
SKC-580
Pad
