17
En
Connect your components to the appropriate jacks. The default input assignments are shown below.
✔: Assignment can be changed (➔ 34).
*1
Connect a turntable (MM) that has a phono preamp built-in. If your turntable (MM) doesn’t have it, you’ll need a commercially
available phono preamp.
If your turntable has a moving coil (MC) type cartridge, you’ll need a commercially available MC head amp or MC transformer as
well as a phono preamp. See your turntable’s manual for details.
• With connection C, you can listen and record audio from the external components while you are in Zone 2. You can lis-
ten and record audio from the external components in the main room; you can listen to the audio in Zone 2 as well.
• With connection B, you can enjoy Dolby Digital and DTS. (To record or listen in Zone 2 as well, use B and C.)
• If your Blu-ray Disc/DVD player has both the main stereo and multichannel outputs, be sure to connect the main stereo
output using connection C.
■ How to record the video
With the connections described above, you cannot record the video through the AV receiver. To make a connection for
video recording (➔ 27).

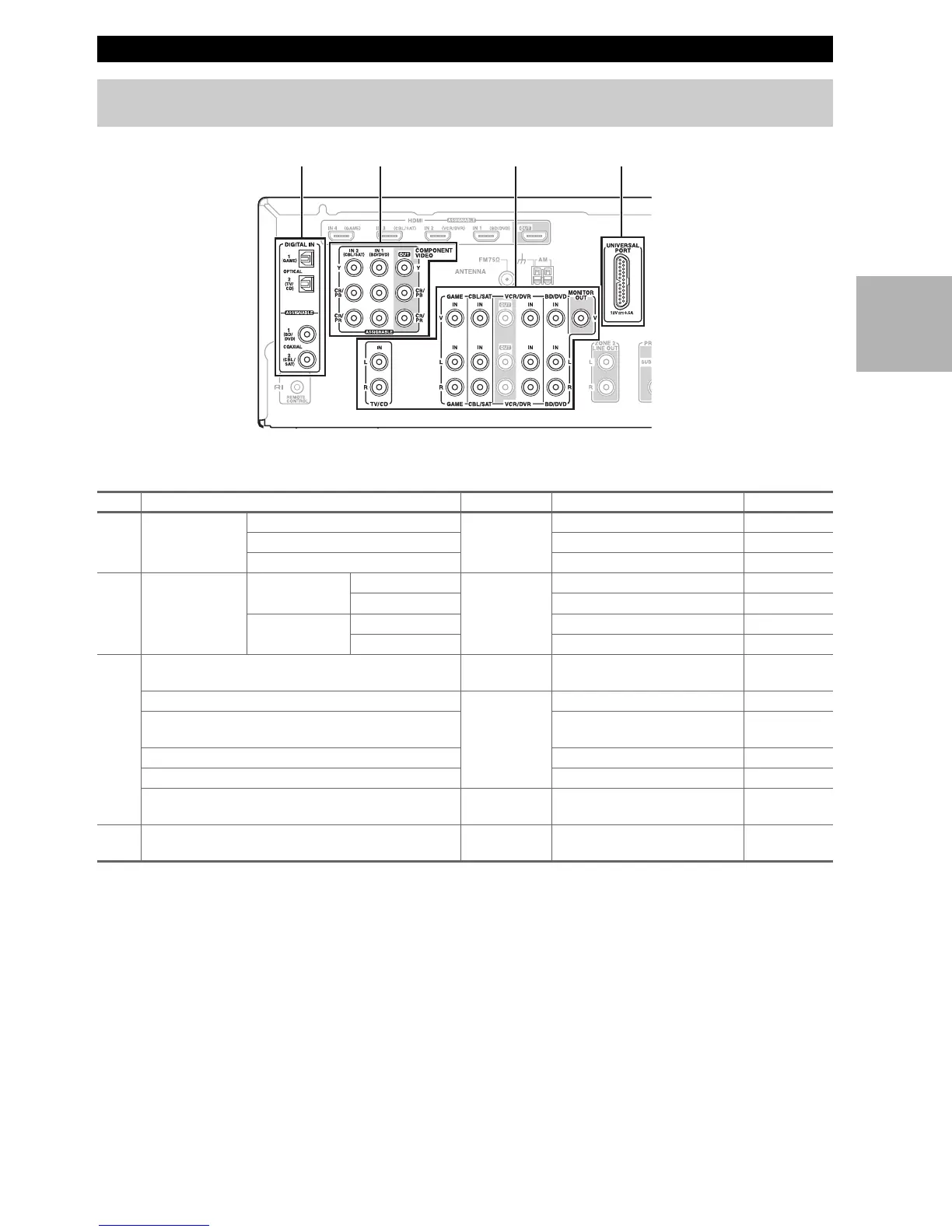

Connecting External Components
The on-screen setup menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to
the MONITOR OUT V or the COMPONENT VIDEO OUT, use the AV receiver’s display when changing settings.
No. Jack Signal Components Assignable
A
COMPONENT
VIDEO
IN 1 (BD/DVD) Component
video
Blu-ray Disc/DVD player ✔
IN 2 (CBL/SAT) Satellite, cable, set-top box, etc. ✔
OUT TV, projector, etc.
B
DIGITAL IN OPTICAL IN 1 (GAME) Digital audio Game console ✔
IN 2 (TV/CD) TV, CD player ✔
COAXIAL IN 1 (BD/DVD) Blu-ray Disc/DVD player ✔
IN 2 (CBL/SAT) Satellite, cable, set-top box, etc. ✔
C
MONITOR OUT Composite
video
TV, projector, etc.
BD/DVD IN Analog audio
and composite
video
Blu-ray Disc/DVD player
VCR/DVR IN VCR or DVD recorder/Digital
Video Recorder
CBL/SAT IN Satellite, cable, set-top box, etc.
GAME IN Game console
TV/CD IN Analog audio
TV, CD player, Turntable
*1
Cassette tape deck, MD, CD-R
D
UNIVERSAL PORT Analog audio/
Video
Universal port optional dock
(UP-A1 etc.)
B A DC
To Next Page
