Turning On & Basic Operations
En-27
1
Turn on the AV receiver and the connected TV.
On the TV, select the input to which the AV receiver
is connected.
Note
• Before plugging the Speaker setup microphone to perform
Automatic Speaker Setup, please make sure that all your
connected speakers and subwoofers produce sound.
2

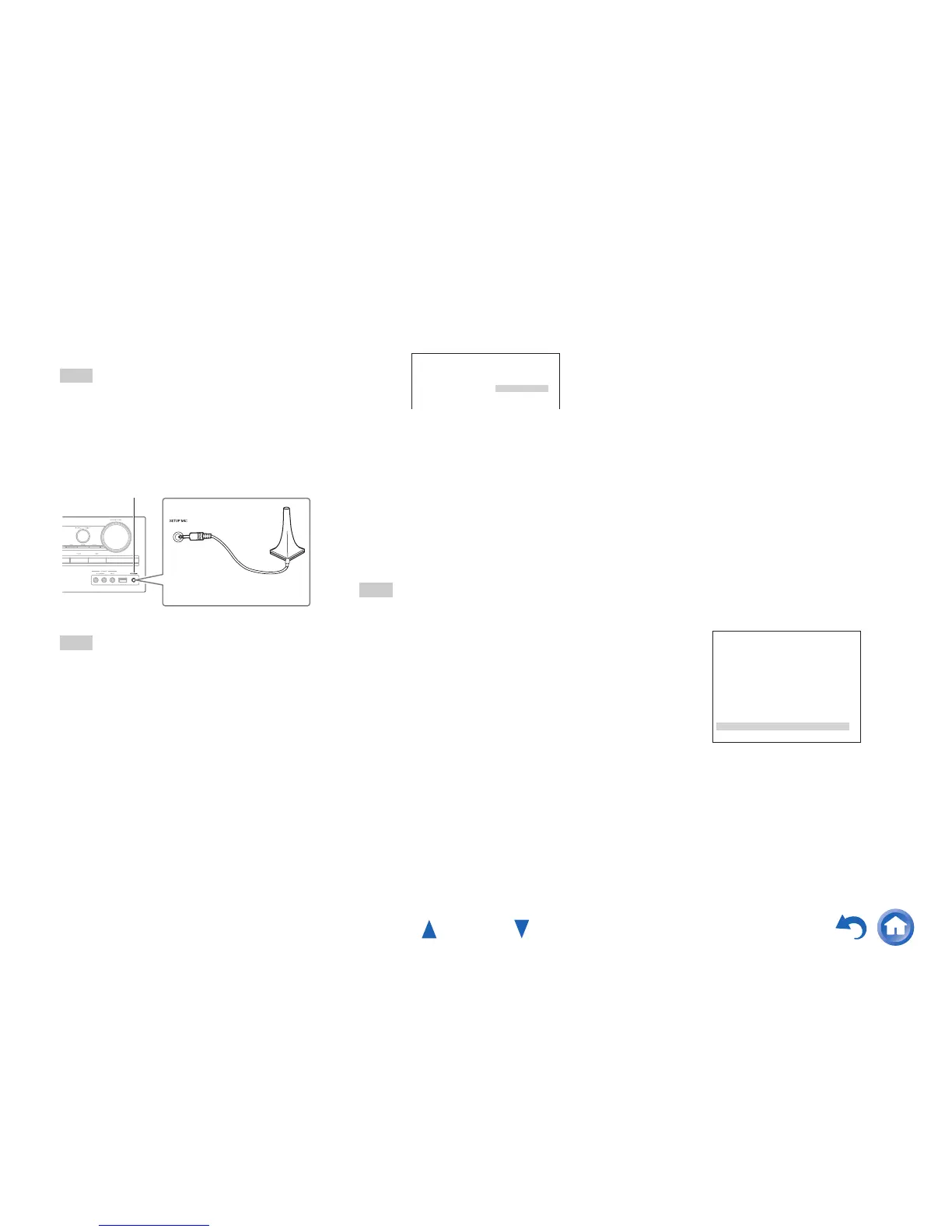

Set the speaker setup microphone at the Main
Listening Position a, and connect it to the SETUP
MIC jack.
The speaker setting menu appears.
Note
• The on-screen menus appear only on a TV that is connected
to the HDMI OUT. If your TV is connected to other video
outputs, use the AV receiver’s display when changing
settings.
Speaker setup microphone
SETUP MIC jack
3
When you’ve finished making the settings, press
ENTER.
Perform the
“4. Sp Config (Speaker Configuration)”
according to your speaker configuration:
– Powered Zone 2 (➔ page 39)
– SurrBk/FrontHigh (➔ page 39)
– Subwoofer (➔ page 39)
If you use a powered subwoofer(s), go to step 4. If not,
go to step 5.
4
Adjust the subwoofer volume level to 75 dB, and
then press ENTER.
Test tones are played through the subwoofer. Use the
volume control on the subwoofer.
Note
• If your subwoofer does not have a volume control, disregard
the displayed level and press ENTER to proceed to the next
step.
• If you set the subwoofer’s volume control to its maximum
and the level displayed is lower than 75 dB, leave the
subwoofer’s volume control at its maximum and press
ENTER to proceed to the next step.
5
Use q/w to select “Audyssey Quick Start” or
“Audyssey 2EQ Full Calibration”, and then press
ENTER.
2EQ: Auto Setup
Audyssey
Subwoofer Yes
Powered Zone 2 No
SurrBk/FrontHigh < SurrBack >
6
Press ENTER.
Audyssey 2EQ
®
Room Correction and Speaker Setup
starts.
Test tones are played through each speaker as
Audyssey 2EQ Room Correction and Speaker Setup
runs. This process takes a few minutes. Please refrain
from talking during measurements and do not stand
between speakers and the microphone.
Do not disconnect the speaker setup microphone
during Audyssey 2EQ Room Correction and Speaker
Setup, unless you want to cancel the setup.
If you select “Audyssey Quick Start”, you will go to
step 9.
7
Place the speaker setup microphone at the next
position, and then press ENTER.
Audyssey 2EQ performs more measurements. This
takes a few minutes.
8
When prompted, repeat step 7.
9
Use q/w to select an option, and then press ENTER.
The options are:
` Save:
Save the calculated settings and exit
Audyssey 2EQ Room Correction and Speaker
Setup.
` Cancel:
Cancel Audyssey 2EQ Room Correction and
Speaker Setup.
Subwoofer : Yes
Front : Small
Center : Small
Surround : Small
Front High : None
Surr Back : Small
Surr Back Ch : 2ch
Crossover : 100Hz
Save
Cancel
2EQ: Auto Setup
Audyssey
<- Review Speaker Configuration ->
To Next Page
