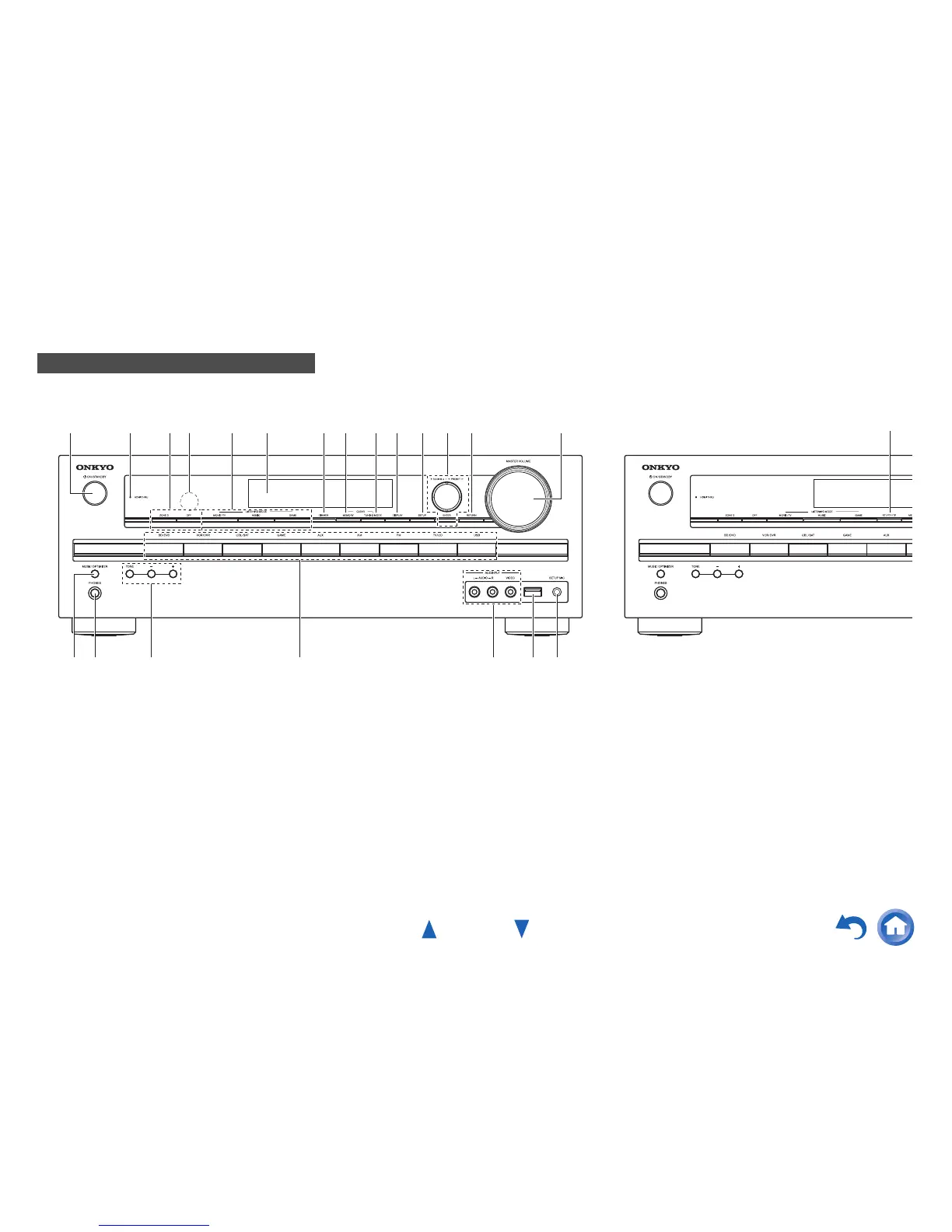

Front & Rear Panels
For detailed information, see the pages in parentheses.
a 8ON/STANDBY button (18)
b HDMI THRU indicator (46)
c ZONE 2, OFF buttons (50)
d Remote control sensor (4)
e LISTENING MODE buttons (29)
f Display (8)
g DIMMER button (North American, Brazilian and
Taiwanese models) (34)
h MEMORY button (24)
i TUNING MODE button (23)
j DISPLAY button (35)
k SETUP button (36)
l TUNING q/w, PRESET e/r (23), cursor and
ENTER buttons
m RETURN button
n MASTER VOLUME control (19)
o MUSIC OPTIMIZER button (35, 48)
p PHONES jack (35)
q TONE and Tone Level buttons (47)
r Input selector buttons (19)
s AUX INPUT AUDIO and VIDEO jacks (15)
t USB port (15, 21, 22)
u SETUP MIC jack (26)
v RT/PTY/TP button (Asian models) (24)
Front Panel
(North American, Brazilian and Taiwanese models) (Asian models)
a
r s
tu
bc
d
e gf h ijklm n
p
qo
v
