Balancing the Speaker Volume Levels
Adjust each speaker’s relative volume until each
speaker’s test tone sounds equally loud at the lis-
tening position.
•You cannot adjust the level in mute mode or
while the headphones are connected.
TV VOL
+
TV VOL
+
VOLUME
TOP MENU MENU
RETURN
SLEEP
MUTING
DIMMER DISPLAY CLOCK
TV/ SETUPTV/ SETUP
DISTANCEDISTANCE UPUP
DOWNDOWN
789
TEST TONESP SETUP CH SEL
T
-
D SETUP
ON
789
STANDBY
INPUT SELECTOR
RECEIVER
COND.MLAST M FUNC.M
ANGLEAUDIO SUBTITLE
T
-
D/ STLATE NIGHT
TIMER
CLEAR
PROGRAM
SEARCH
ACOUSTIC
CONTROL
SURROUND
MODE
123
456
2
3
1,4
TV/SETUP
CH SEL
3
UPUP
SUBTITLE
6
DOWNDOWN
9
9
SURROUND
TV/ SETUPTV/ SETUP
TEST TONE
2
VOLUME
TEST TONE
2

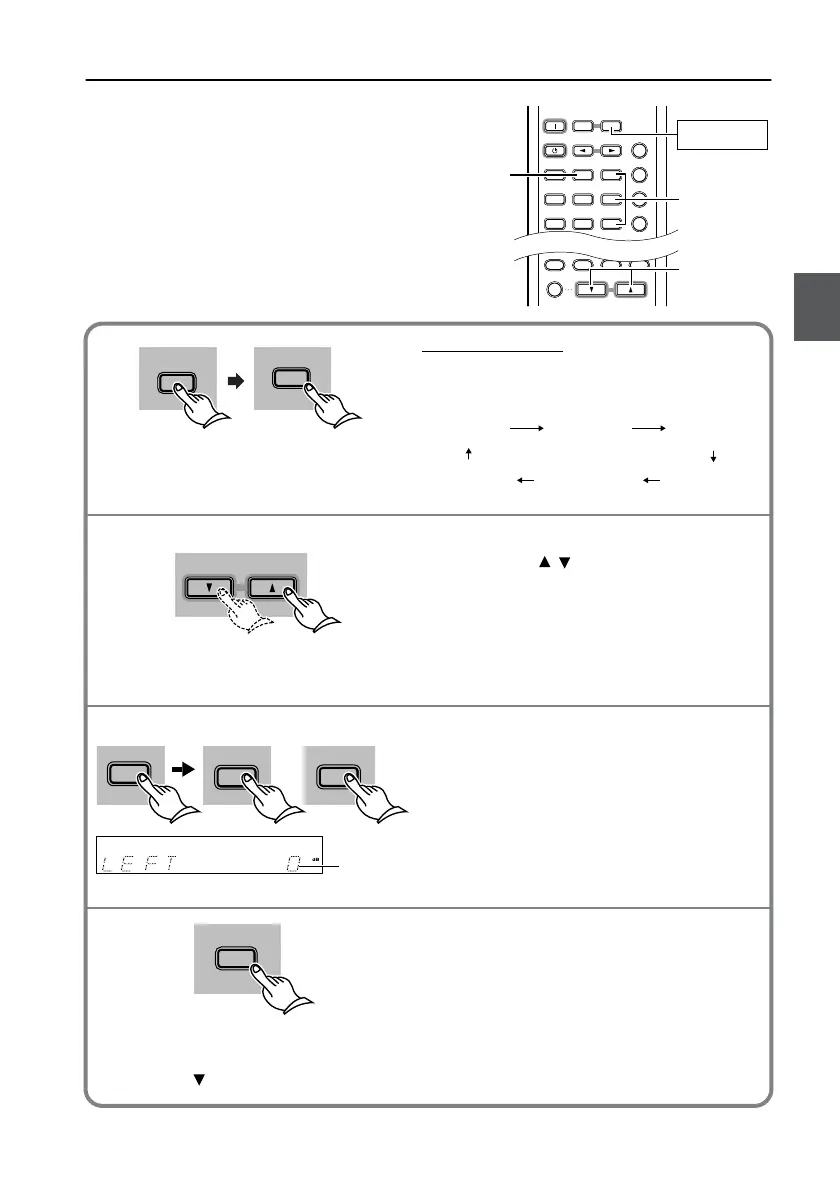

Press TV/SETUP on the remote control-
ler, then press TEST TONE.
Each speaker emits the test tone (pink noise).
Adjust the volume level.
Press VOLUME to adjust the level until the
test tone is heard clearly.
• If you do not press the buttons while the test
tone is sounding, the test tone output will
automatically switch to the next speaker. A
staccato test tone will be emitted from each
speaker in turn.
Press CH SEL repeatedly to select a
speaker, then press UP/DOWN to adjust
the volume level balance.
Press UP to increase the level or press DOWN
to lower the level.
•You can adjust the volume level in the range
of –12 dB to +12 dB for the satellite speakers.
Press TEST TONE.
The level settings are memorized, and the unit
displays the standard screen.
LEFT
(Left front)
CENTER
(Center)
SURR R
(Right surround)
RIGHT
(Right front)
SURR L
(Left surround)
SUBWFR
(Subwoofer)
/
1
2
4
Note
• Since the original level of the test tone is soft, if you have raised the volume in Step 2, press
VOLUME after Step 3 to lower the volume to the original level.
3
Volume level
L-DR7_E.book Page 77 Tuesday, December 24, 2002 3:10 PM
