14
Connecting to components other than the Separate Collection Series
Before connecting
• If your subwoofer isn’t equipped with an amplifier, connect a separate amplifier to the unit
first, then connect the subwoofer to that amplifier.
• The SUBWOOFER PRE OUT connector supplies the left and right mixed monaural signals to
the subwoofer.
Connections

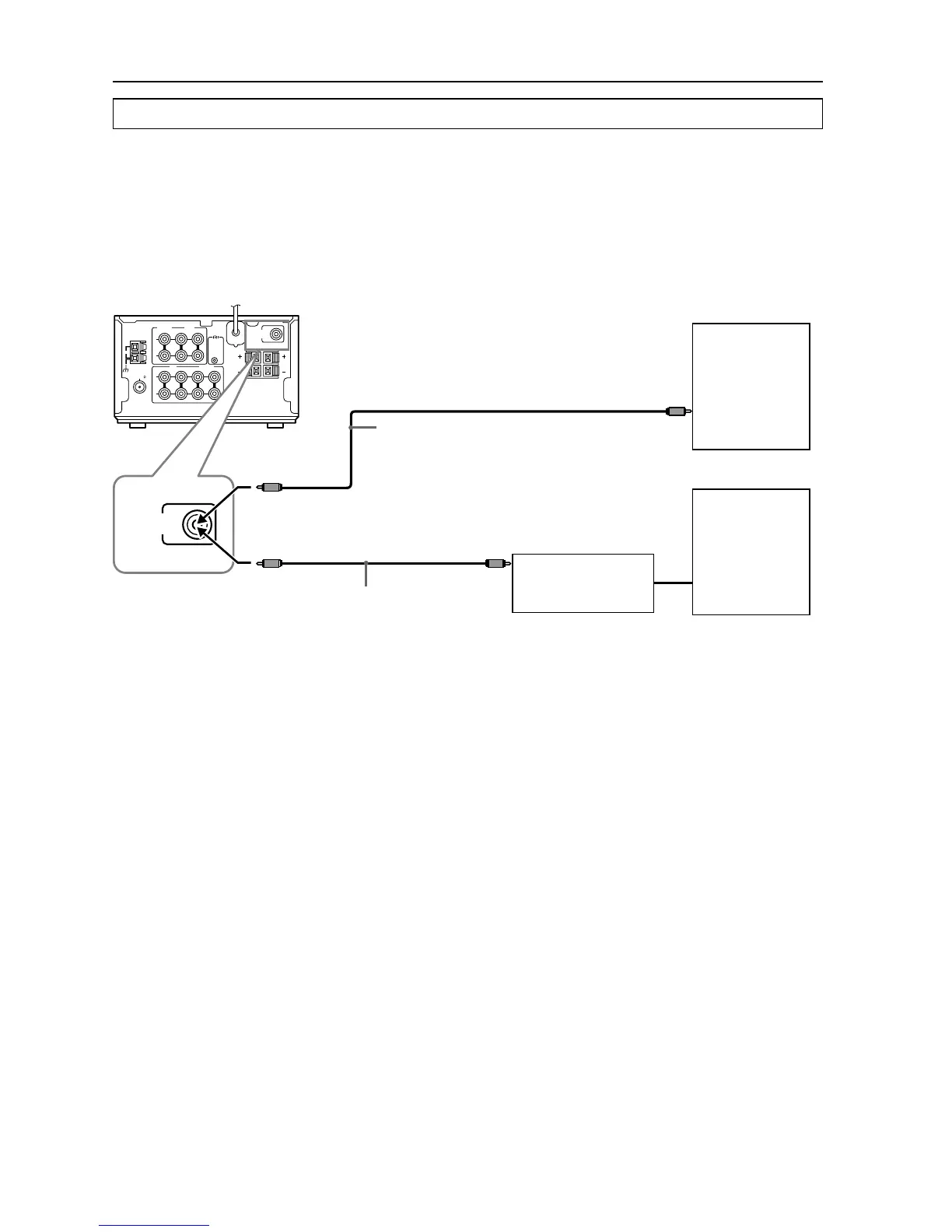

Connecting a subwoofer
CD/DVD
TAPE
OUT
IN
IN
OUT
IN
OUT
IN
MD CDR/PC
ANTENNA
AM
FM 75
REMOTE
CONTROL
SPEAKERS
L
R
L
R
SUBWOOFER
PRE OUT
R
L
R
L
CAUTION:
SPEAKER
IMPEDANCE
4 OHMS MIN.
/ SPEAKER
SUBWOOFER
PRE OUT
This unit (R-801A)
Subwoofer
Subwoofer
Amplifier
or
When connecting a subwoofer
with a built-in amplifier
When connecting a subwoofer
with no built-in amplifier
Audio connection cable
Audio connection cable
To Next Page
