30
Connecting Your Components
—Continued

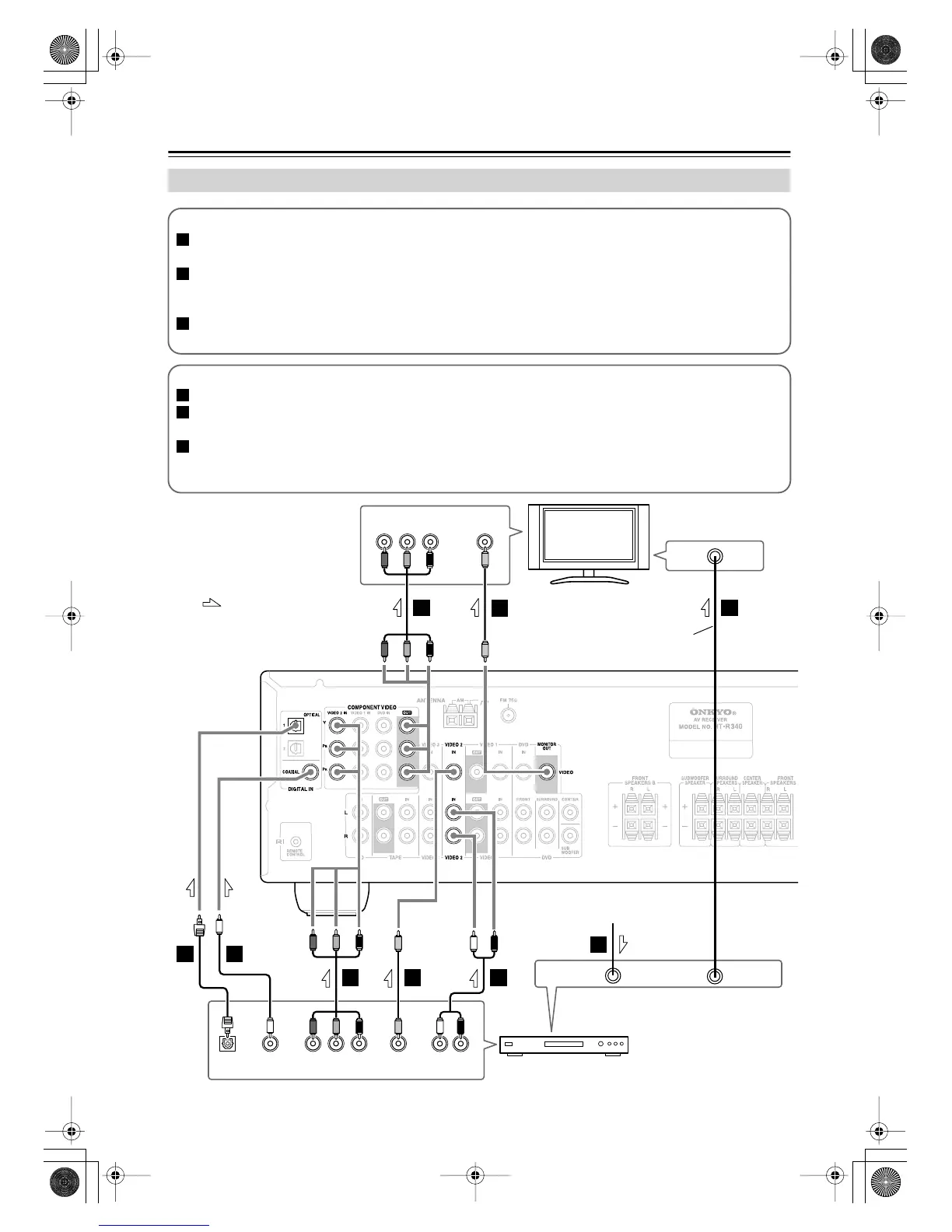

Connecting a Satellite, Cable, Set-top Box, or Other Video Source
YPB
COMPONENT VIDEO OUT
P
R VIDEO
OUT
YPB
COMPONENT VIDEO IN
VIDEO IN
P
R
AUDIO
OUT
LR
COAXIAL
OUT
OPTICAL
OUT
B
B
A
C
C
A
a
c
b
Satellite, cable, set-top
box, etc.
Step 1: Video Connection
Connect your set-top box’s video output jack to the AV receiver’s VIDEO 2 IN jack and connect the AV receiver’s
MONITOR OUT jack to your TV’s video input jack.
If your VCR and TV have component video jacks, connect your set-top box’s component video output to the AV
receiver’s COMPONENT VIDEO VIDEO 2 IN jacks, and connect the AV receiver’s COMPONENT VIDEO
OUT jacks to your TV’s component video in jacks. This offers better picture quality than composite video.
Connect a coaxial feed from a TV antenna to your set-top box’s antenna input jack (e.g., RF IN), and connect
your set-top box’s antenna output jack (e.g., RF OUT) to your TV’s antenna input jack.
Step 2: Audio Connection
Connect your set-top box’s audio output jack to the AV receiver’s VIDEO 2 IN L/R jacks.
If your set-top box has an optical digital audio output jack, connect it to the AV receiver’s DIGITAL IN OPTI-
CAL 1 jack. You can enjoy Dolby and DTS listening modes with this connection.
If your set-top box has a coaxial digital audio output jack instead of an optical one, connect it to the AV receiver’s
DIGITAL IN COAXIAL jack, and set the DIGITAL INPUT assignment to COAX (see page 35). Coaxial con-
nections perform the same as optical ones.
A
B
C
a
b
c
TV, projector,
etc.
Coaxial feed
: Signal Flow
HT-R340
Antenna input
(e.g., RF IN)
Antenna input
(e.g., RF IN)
Antenna output
(e.g., RF OUT)
Coaxial feed from TV antenna
HT-S590En.book Page 30 Wednesday, February 1, 2006 4:26 PM
