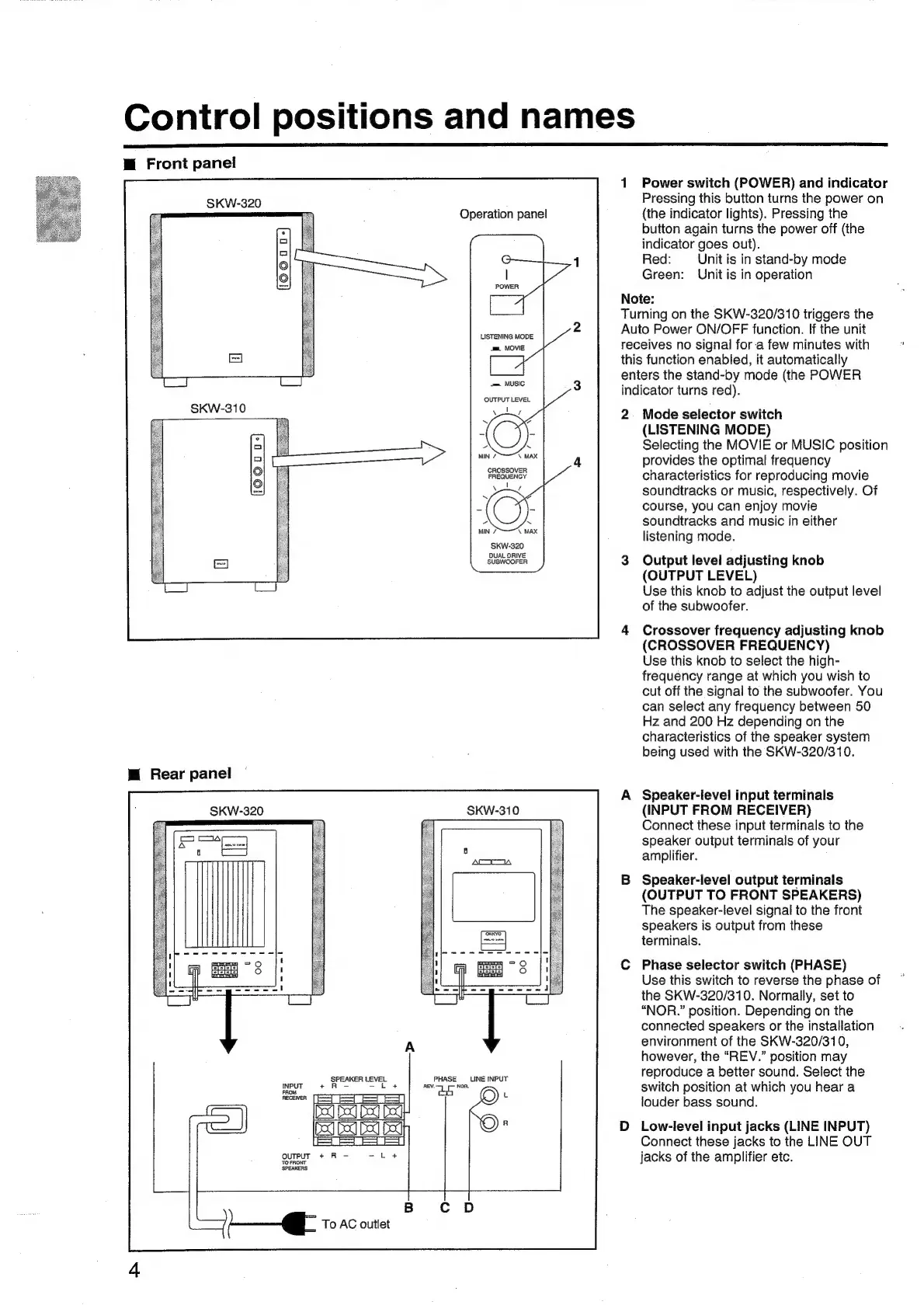

Control positions and names
Hi Front panel
1 Power switch (POWER) and indicator
SKW-320 Pressing this button turns the power on
r Operation panel (the indicator lights). Pressing the
button again turns the power off (the
indicator goes out).
Red: Unit is in stand-by mode
Green: Unit is in operation
Note:
Turning on the SKW-320/310 triggers the
Seat Auto Power ON/OFF function. If the unit
wm wovie receives no signal fora few minutes with
this function enabled, it automatically
enters the stand-by mode (the POWER
indicator turns red).
OUTPUT LEVEL
SKW-310 , 9
wm MUSIC
Mode selector switch
(LISTENING MODE)
Selecting the MOVIE or MUSIC position
provides the optimal frequency
PReGueNcY characteristics for reproducing movie
soundtracks or music, respectively. Of
course, you can enjoy movie
soundtracks and music in either
listening mode.
MIN / \ MAX
SKW-320
DUAL DRIVE
SUBWOOFER 3
Output level adjusting knob
(OUTPUT LEVEL)
Use this knob to adjust the output level
of the subwoofer.
4 Crossover frequency adjusting knob
(CROSSOVER FREQUENCY)
Use this knob to select the high-
frequency range at which you wish to
cut off the signal to the subwoofer. You
can select any frequency between 50
Hz and 200 Hz depending on the
characteristics of the speaker system
being used with the SKW-320/310.
mi Rear panel
A Speaker-level input terminals
SKW-320 SKW-310 (INPUT FROM RECEIVER)
: e Connect these input terminals to the
speaker output terminals of your
amplifier.
B Speaker-level output terminals
(OUTPUT TO FRONT SPEAKERS)
The speaker-level signal to the front
speakers is output from these
terminals.
C Phase selector switch (PHASE)
Use this switch to reverse the phase of
the SKW-320/310. Normally, set to
“NOR.” position. Depending on the
connected speakers or the installation
environment of the SKW-320/310,
however, the “REV.” position may
reproduce a better sound. Select the
switch position at which you hear a
louder bass sound.
D Low-level input jacks (LINE INPUT)
Connect these jacks to the LINE OUT
ourpur + Ro - jacks of the amplifier etc.
TOFRONT
‘SPEAKERS
PHASE — LINE INPUT
. Noa.
