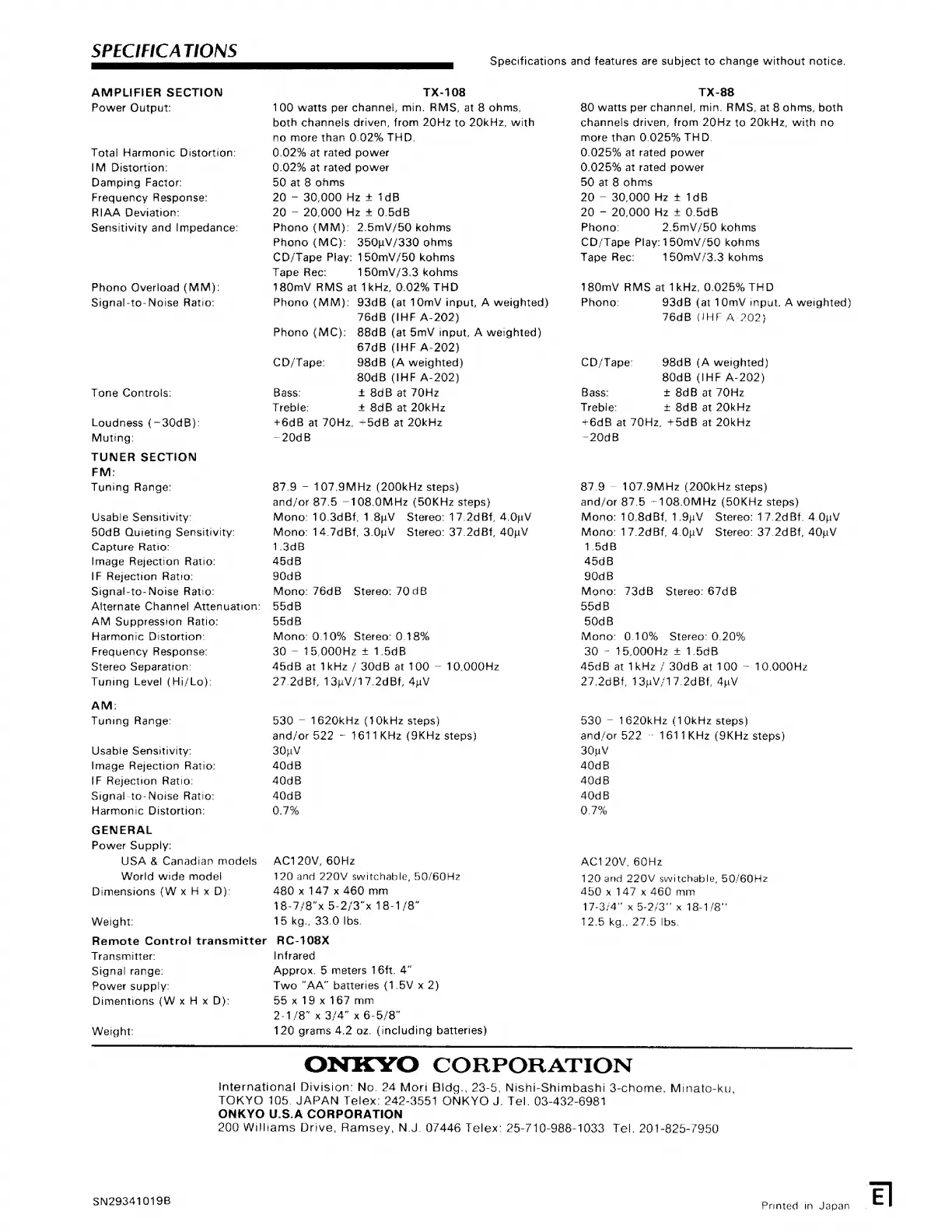

SPECIFICATIONS
AMPLIFIER SECTION
Power Qutput:
Total Harmonic Distortion:
IM Distortion:
Damping Factor:
Frequency Response:
RIAA Deviation:
Sensitivity and Impedance:
Phono Overload (MM):
Signal-to- Noise Ratio:
Tone Controis:
Loudness (-30dB):
Muting:
TUNER SECTION
FM:
Tuning Range:
Usable Sensitivity:
50dB Quteting Sensitivity:
Capture Ratio:
Image Rejection Ratio:
IF Rejection Ratio:
Signal-to- Noise Ratio:
Alternate Channel Attenuation:
AM Suppression Ratio:
Harmonic Distortion:
Frequency Response:
Stereo Separation:
Tuning Level (Hi/Lo):
AM:
Tuning Range:
Usable Sensitivity:
Image Rejection Ratio:
IF Rejection Ratio:
Signal-to- Noise Ratio:
Harmonic Distortion:
GENERAL
Power Supply:
USA & Canadian models
World wide model
Dimensions (W x H x D):
Weight:
Remote Control transmitter
Transmitter:
Signal range:
Power supply:
Dimentions (W x H x D):
Werght:
TX-108
100 watts per channel, min. RMS, at 8 ohms,
both channels driven, from 20Hz to 20kHz, with
no more than 0.02% THD.
0.02% at rated power
0.02% at rated power
50 at 8 ohms
20 — 30,000 Hz + 1dB
20 — 20,000 Hz + 0.5dB
Phono (MM): 2.5mV/50 kohms
Phono (MC): 350”nV/330 ohms
CD/Tape Play: 150mV/50 kohms
Tape Rec: 150mV/3.3 kohms
180mV RMS at 1kHz, 0.02% THD
Phono (MM): 93dB (at 10mV input, A weighted)
76dB (IHF A-202)
Phono (MC): 88dB (at 5mV input, A weighted)
67dB (IHF A-202)
CD/Tape: 98dB (A weighted)
80dB (IHF A-202)
Bass: + 8dB at 70Hz
Treble: + 8dB at 20kHz
+6dB at 70Hz, +5dB at 20kHz
-~20dB
87.9 —- 107.9MHz (200kHz steps)
and/or 87.5 —108.0MHz (50KHz steps)
Mono: 10.3dBf, 1.8nV Stereo: 17.2dBf, 4.0nV
Mono: 14.7dBf, 3.0nV Stereo: 37.2dBf, 40uV
1.3dB
45dB
90dB
Mono: 76dB_ Stereo: 7OdB
55dB
55dB
Mono: 0.10% Stereo: 0.18%
30 — 15,000Hz + 1.5dB
45dB at 1kHz / 30dB at 100 — 10,000Hz
27. 2dBf, 13pV/17.2dBf, 4uV
530 — 1620kHz (10kHz steps)
and/or 522 —- 1611KHz (SKHz steps)
30uV
40dB
A0dB
40dB
0.7%
AC120V, 60Hz
120 and 220V switchable, 50/60Hz
480 x 147 x 460 mm
18-7/8"x 5-2/3"x 18-1/8"
15 kg., 33.0 Ibs.
RC-108X
Infrared
Approx. 5 meters 167t. 4°
Two “AA” batteries (1.5V x 2)
55 x 19 x 167 mm
2-1/8" x 3/4" x 6-5/8"
120 grams 4.2 oz. (including batteries)
Specifications and features are subject to change without notice.
TX-88
80 watts per channel, min. RMS, at 8 ohms, both
channels driven, from 20Hz to 20kHz, with no
more than 0.025% THD.
0.025% at rated power
0.025% at rated power
50 at 8 ohms
20 — 30,000 Hz + 1dB
20 — 20,000 Hz + 0.5dB
Phono: 2.5mV/50 kohms
CD/Tape Play: 150mV/50 kohms
Tape Rec: 150mV/3.3 kohms
18O0mV RMS at 1kHz, 0.025% THD
Phono: 93dB (at 10mV input, A weighted)
76dB (IHF A202)
CD/Tape: 98dB (A weighted)
80dB (IHF A-202)
Bass: + 8dB at 7/OHz
Treble: + 8dB at 20kHz
+6dB at 70Hz, +5dB at 20kHz
—20dB
87.9 — 107.9MHz (200kHz steps)
and/or 87.5 ~108.0MHz (50KHz steps)
Mono: 10.8dBf, 1.9nV Stereo: 17.2dBf. 4.0nV
Mono: 17.2dBf, 4.0unV Stereo: 37. 2dBf, 40unV
1.5dB
45dB
90dB
Mono: 73dB Stereo: 67dB
55dB
50dB
Mono: 0.10% Stereo: 0.20%
30 - 15,000Hz + 1.5dB
45dB at 1kHz / 30dB at 100 - 10,000Hz
27.2dBf, 13pV/17.2dBf, 4uV
530 — 1620kHz (10kHz steps)
and/or 522 ~- 1611KHz (9KHz steps)
30uV
40dB
40dB
40dB
0.7%
AC120V, 60Hz
120 and 220V switchable, 50/60Hz
450 x 147 x 460 mm
17-3/4" x 9-2/3" x 18-1/8"
12.5 kg., 27.5 Ibs.
SN29341019B
ONKYO CORPORATION
International Division: No. 24 Mori Bldg., 23-5, Nishi-Shimbashi 3-chome, Minato-ku,
TOKYO 105. JAPAN Telex: 242-3551 ONKYO J. Tel. 03-432-6981
ONKYO U.S.A CORPORATION
200 Williams Drive, Ramsey, N.J. 07446 Telex: 25-710-988-1033 Tel. 201-825-7950
Printed in Japan. E]
