15
> Before start > Hookup > Setup > Playback > Part Names > Advanced Manual
Troubleshooting | Appendix
OR
CD
2
1
1 Digital optical cable, 2 Analog audio cable
if you have:
Audio Components

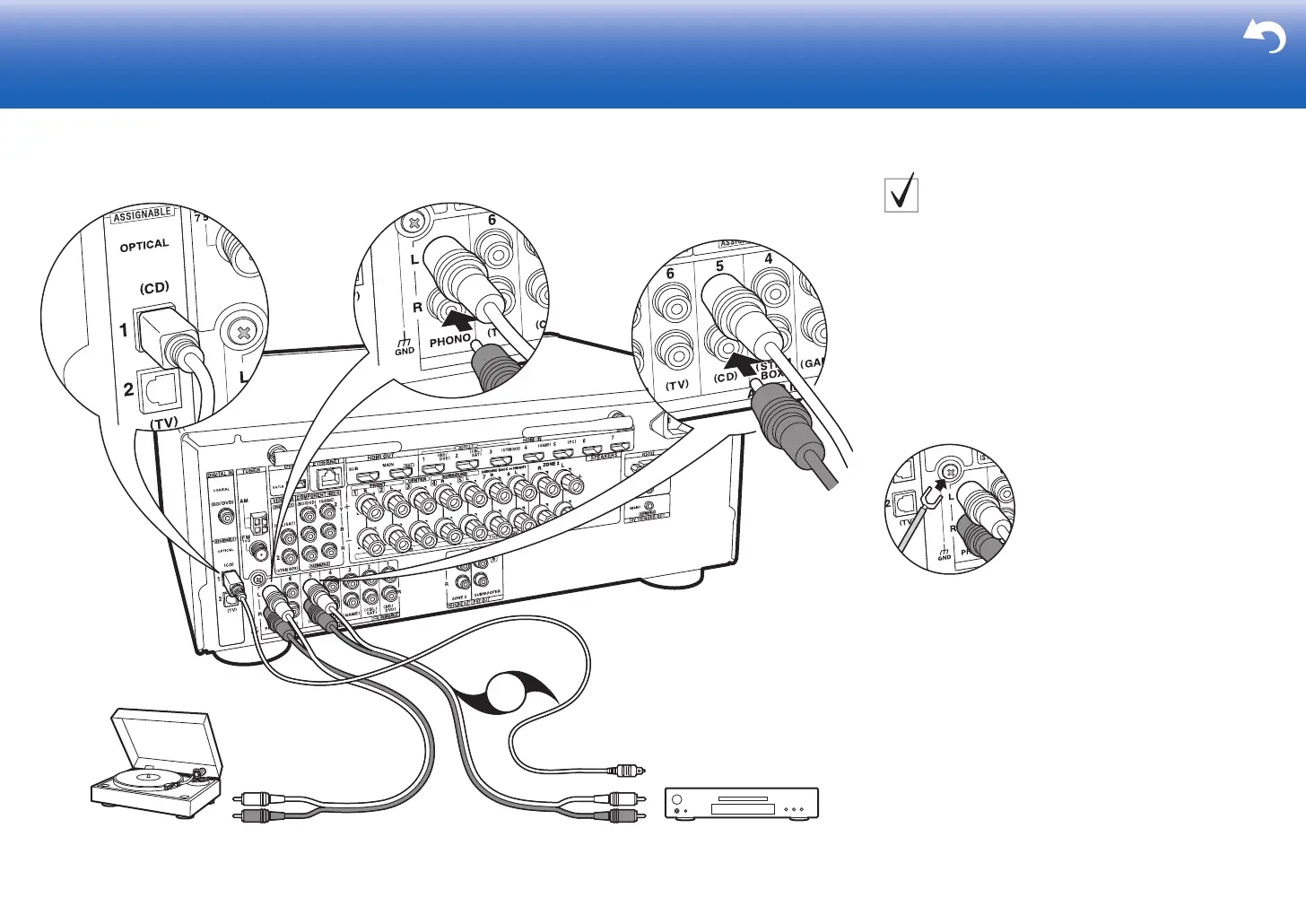

Example of a connection with an audio component.
Connect a CD player using a digital optical cable or
analog audio cable. You can also connect a turntable that
has an MM-type cartridge to the PHONO jack.
0 If the turntable has a built-in audio equalizer, connect it
to another AUDIO IN jack. Further, if the turntable uses
an MC type cartridge, install an audio equalizer
compatible with the MC type cartridge between the unit
and the turntable, then connect to any AUDIO IN jack
other than the PHONO jack.
If the turntable has a ground wire, connect it to the GND terminal
of this unit.
To Next Page
