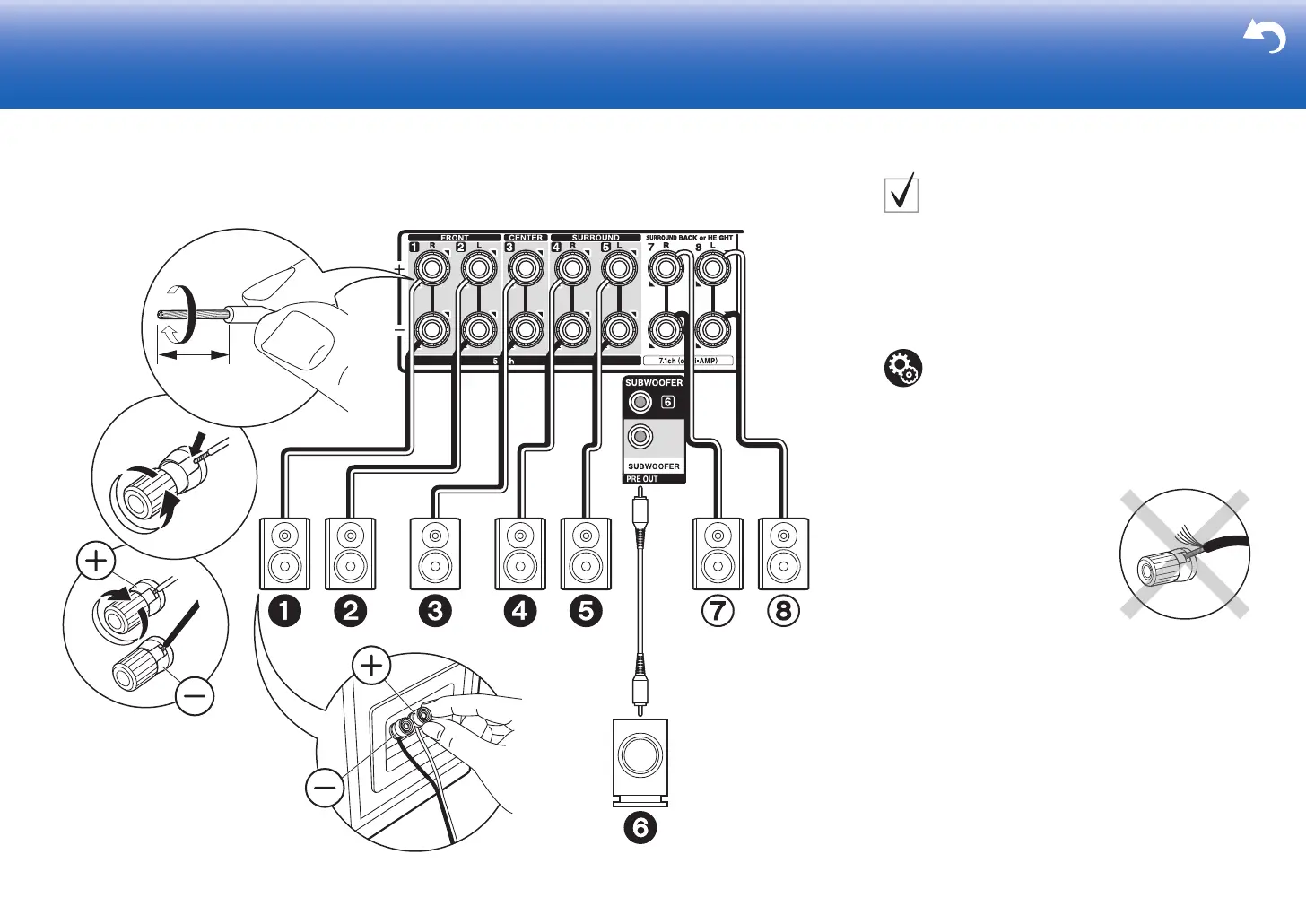

Step2: Connect the Speakers
2
1
1/2˝
(12 mm)
1 Speaker cable, 2 Subwoofer cable
in case of:
Pages 3 to 7
Connect 123456 for a 5.1-channel system. For a
7.1-channel system, select either surround back speakers
or height speakers, and connect 78. Up to two powered
subwoofers can be connected. The same signal is output
from each of the SUBWOOFER jacks.
Make sure the exposed wires of the speakers do not stick out of
the speaker terminals when connecting. If the exposed wires of
the speakers touch the rear panel or the + and – wires touch each
other, the protection circuit will be activated.
Setup
0 The speaker configuration is set to
12345678 audio output by default. If there
are speakers you won't be connecting, you need to
change the settings in Initial Setup, "1. AccuEQ
Room Calibration" (
P18) so that the audio from
those speakers you are not connecting is sent to
other speakers.
To Next Page
