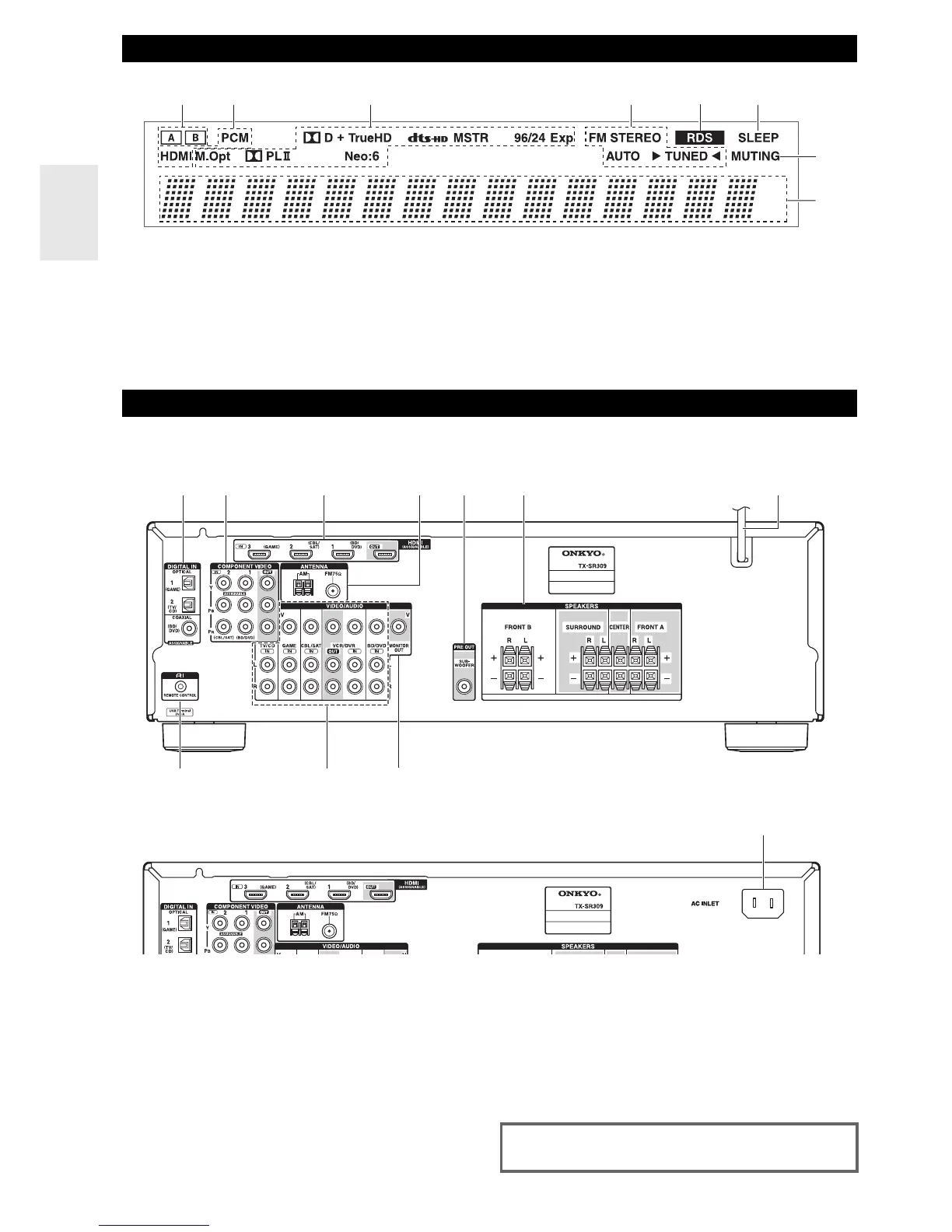

For detailed information, see the pages in parentheses.
a A and B speaker indicators (26)
b Audio input indicators
c Listening mode and format indicators (23, 27)
d Tuning indicators (20)
e RDS indicator (excluding North American models)
(21)
f SLEEP indicator (26)
g MUTING indicator (28)
h Message area
a DIGITAL IN COAXIAL and OPTICAL jacks
b COMPONENT VIDEO IN and OUT jacks
c HDMI IN and OUT jacks
d FM ANTENNA jack and AM ANTENNA terminal
e SUBWOOFER PRE OUT jack
f SPEAKERS terminals
(FRONT A, CENTER, SURROUND, FRONT B)
g Power cord (North American, European,
Australian and Asian models)
h u REMOTE CONTROL jack
i Composite video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT
IN, GAME IN, TV/CD IN)
j MONITOR OUT V jack
k AC INLET (Taiwan models)
Display
bcaef
h
g
d
Rear Panel
ab c
d
g
e
f
h
ij
(North American, European, Australian and Asian models)
k
(Taiwan models)
See “Connecting the AV Receiver” for connection
(➔ pages 10 to 16).
