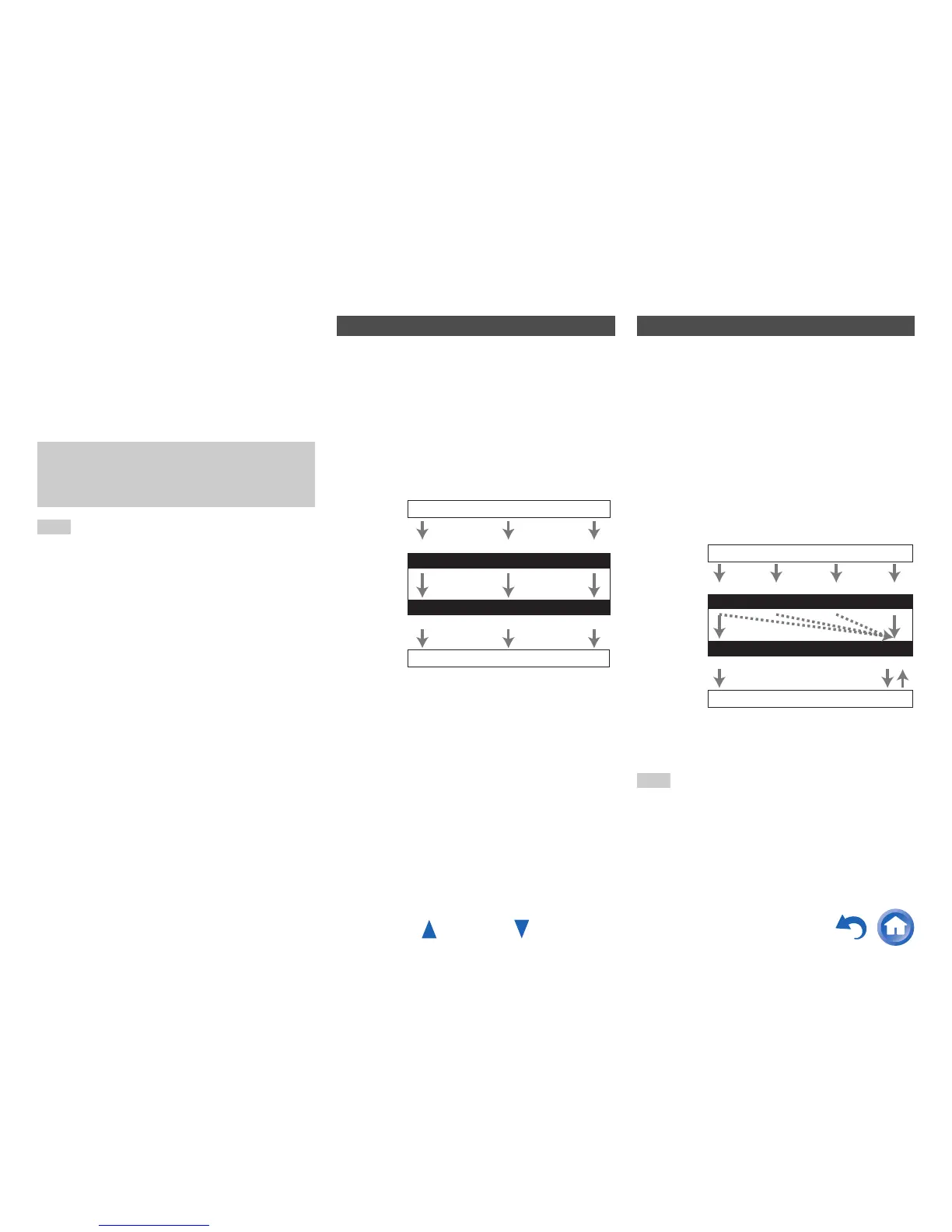

Onkyo TX-SR313 User Manual

Appendix
En-59
Connection Tips and
Video Signal Path
The AV receiver supports several connection formats for
compatibility with a wide range of AV equipment. The
format you choose will depend on the formats supported by
your components. Use the following sections as a guide.
Note
• The on-screen setup menus are displayed when:
– There is no video input, or
– The video input is 480p, 576p, 720p, 1080i, or 1080p.
Video components can be connected by using any one of
the following video connection formats: composite video,
component video, or HDMI, the latter offering the best
picture quality.
When choosing a connection format, bear in mind that the
AV receiver doesn’t convert between formats, so only
outputs of the same format as the input will output the
signal.
Audio components can be connected by using any of the
following audio connection formats: analog, optical,
coaxial, or HDMI.
When choosing a connection format, bear in mind that the
AV receiver does not convert digital input signals for
analog line outputs and vice versa. For example, audio
signals connected to an optical or coaxial digital input are
not output by the analog VCR/DVR OUT.
If signals are present at more than one input, the inputs will
be selected automatically in the following order of priority:
HDMI, digital, analog.
*1
Depends on the “Audio TV Out” setting (➔ page 45).
*2
This is possible, when “Audio Return Ch” is set to “Auto”
(➔ page 46), the TV/CD input selector is selected, and your
TV is ARC capable.
Tip
• When a signal is input via HDMI and the corresponding input
selector is selected, the HDMI indicator lights.
The on-screen menus appear only on a TV that is
connected to the HDMI OUT. If your TV is connected
to other video outputs, use the AV receiver’s display
when changing settings.
Video Connection Formats
IN
MONITOR OUT
Blu-ray Disc/DVD player, etc.
AV receiver
TV, projector, etc.
Composite
Composite
Component
Component
Video Signal Flow Chart
HDMI
HDMI
Audio Connection Formats
IN
OUT
Blu-ray Disc/DVD player, etc.
AV receiver
TV, projector, etc.
HDMICoaxial Analog
Audio Signal Flow Chart
HDMI Analog
Optical
*1
*1 *1
*1 *2

Onkyo TX-SR313 Specifications

General

Receiver type	Surround
Audio output channels	5.1 channels
Power output per channel (1KHz@6 Ohm)	100 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	4
AC (power) in	Yes
Composite video in	5
Digital audio coaxial in	1
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Speakers connectivity type	-
Ethernet LAN	No
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Product color	Black
Audio decoders	Dolby TrueHD, DTS-HD Master Audio
Apple docking compatibility	Not supported
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	300 W
Package weight	9600 g

Weight and Dimensions

Depth	318 mm
Width	435 mm
Height	150 mm
Weight	7600 g
