8
Getting to Know the AV Receiver
For detailed information, see the pages in parentheses.
A
STANDBY/ON button (34)
Sets the AV receiver to On or Standby.
B
STANDBY indicator (34)
Lights up when the AV receiver is on Standby and
flashes while a signal is being received from the
remote controller.
C
Remote-control sensor (16)
Receives control signals from the remote controller.
D
Display
See “Display” on page 9.
E
Input selector buttons (40)
Select the input sources.
The [MULTI CH] button selects the multichannel
DVD input.
F
Arrow/TUNING/PRESET and ENTER buttons
When the tuner is selected, the TUNING [ ] [ ]
buttons are used for radio tuning, and the PRESET
[] [ ] buttons are used to select radio presets
(see page 43). With the setup menus, they work as
arrow buttons and are used to select and set items.
The ENTER button is also used with the setup
menus.
G
MASTER VOLUME control (40)
Sets the volume of the AV receiver to MIN, 1
through 79, or MAX.
H
PHONES jack (47)
This 1/4-inch phone jack is for connecting a stan-
dard pair of stereo headphones for private listening.
I
SPEAKERS A and B buttons (6, 40)
Turn speaker sets A and B on or off.

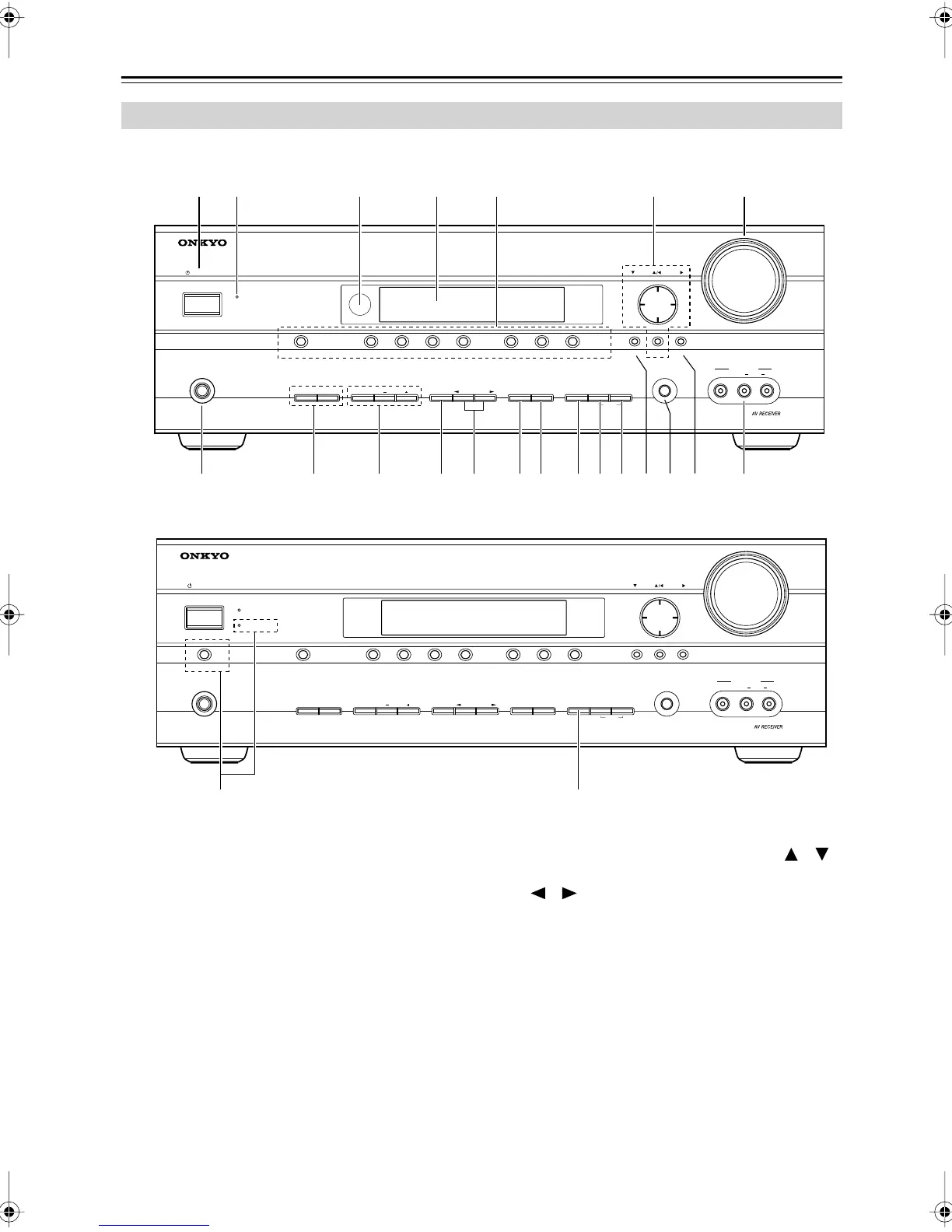

Front Panel
MASTER VOLUME
VIDEO
STANDBY
TONE DISPLAYSTEREO DIMMER MEMORY
DIGITAL INPUT
TUNING MODE
ABSPEAKERS
TUNERTAPE
DVD
MULTI CH C
D
SETUP ENTER
SETUP MIC
RETURN
CLEAR
LISTENING MODE
AUDIOLR
STANDBY/ON
PHONES
TUNING
PRESET
AUX INPUT
AUXCBL/SATVCR/DVR
1
UJKLMNOPQ8 9RTS
2
3 5 6 74
MASTER VOLUME
VIDEO
STANDBY
PURE AUDIO
TONE
DISPLAYSTEREO RT/PTY/TP MEMORY
DIGITAL INPUT
TUNING MODE
ABSPEAKERS
TUNERTAPE
AUXCBL/SATVCR/DVR
DVDMULTI CHPURE AUDIO C
D
SETUP ENTER
SETUP MIC
RETURN
CLEAR
LISTENING MODE
AUDIOLR
AUX INPUT
STANDBY/ON
PHONES
TUNING
PRESET
OV
North American Model
Other Models
(European model only)
TX-SR505En.book Page 8 Tuesday, January 30, 2007 11:53 AM
