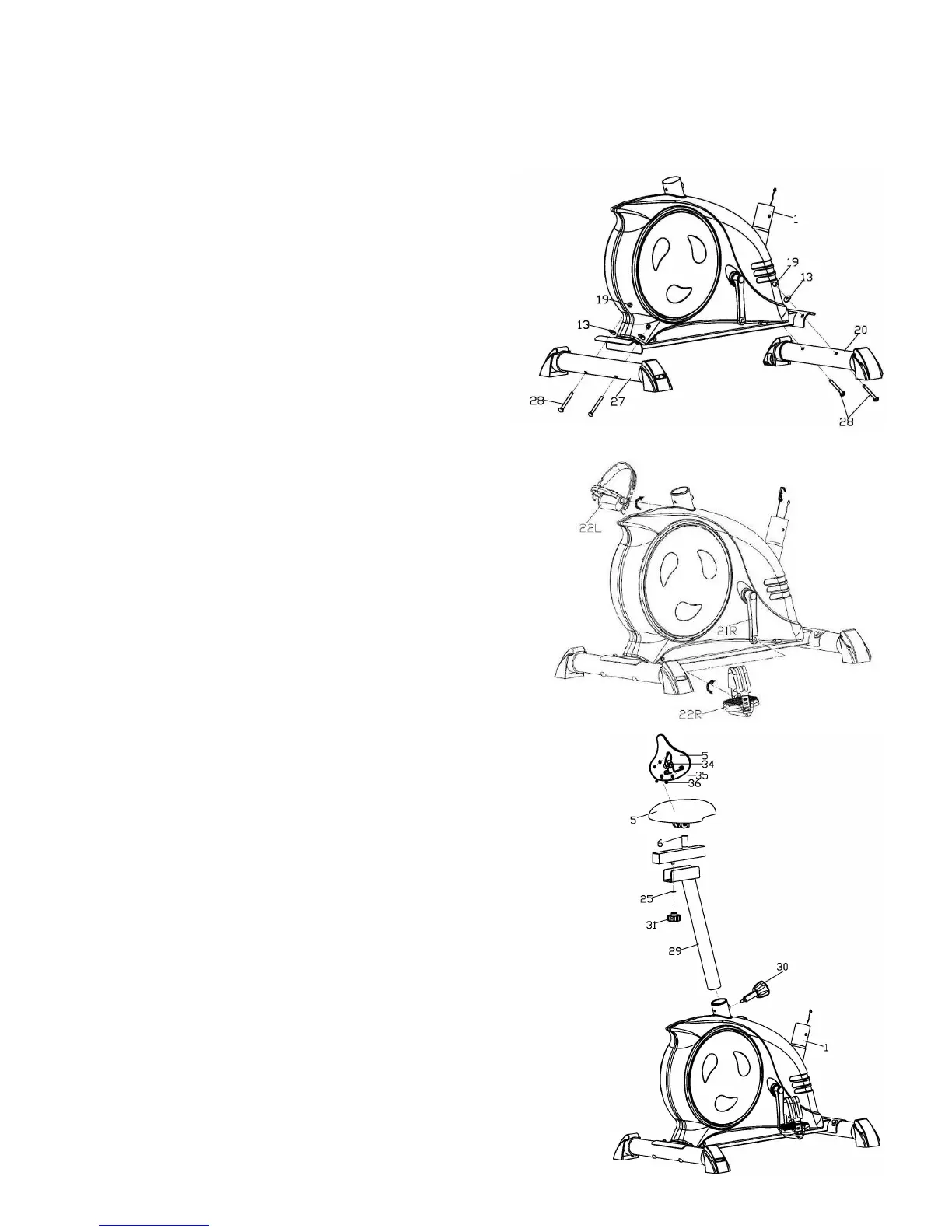

ASSEMBLY INSTRUCTION

Step one:

Fix the Front Bottom Tube (20) and Rear

Bottom Tube (27) onto the Main Frame (1)

with Carriage Bolt (28), Arc Washer (13) and

Acorn Nut (19) as shown.

Step Two:

Attach the Left/Right Pedal (22L/R) to the

Left/Right Crank (21L/R) of the Main Frame

(1).

Note: The left pedal (22L) should be tighten in

the counterclockwise direction, the right pedal

(22R) should be tighten in the clockwise

direction.

Step Three:

1. Lock the Saddle clip(34) on the right bolt on saddle(5)

with Nylon nut(36) and Flat Washer(35).

2. Attach the Saddle (5) to the Saddle Slider (6) with tool.

3. Adjust the Saddle Slider (6) to a suitable position, and

then fix it onto the Saddle Post (29) with Knob Nut (31)

and Flat Washer (25).

4.Insert the Saddle Post (29) into the post of Main Frame

(1), and then fix it with Pop-pin Knob (30) after adjusting

to a suitable height.
