Operation
continued

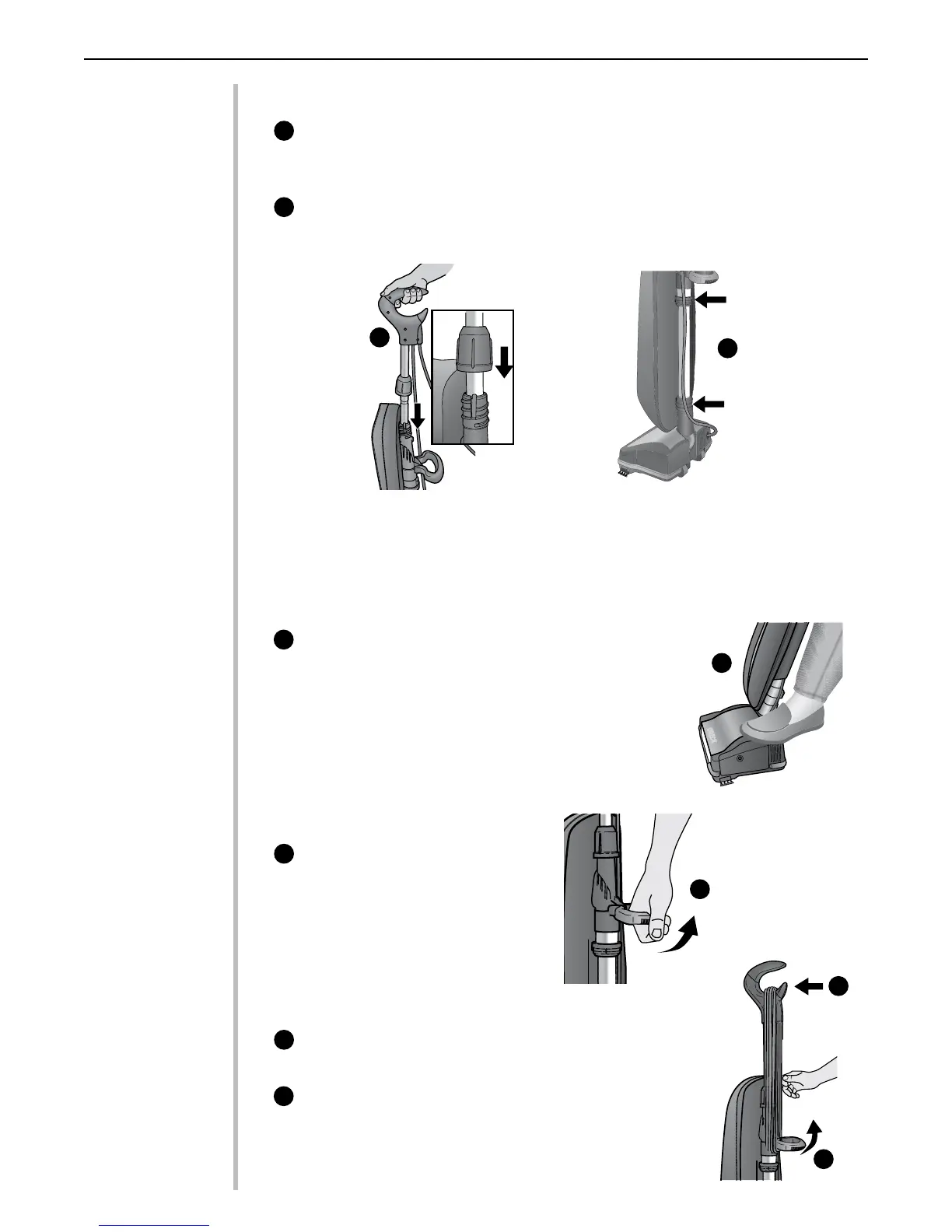

Assembling the Handle Tube
Align slot in handle tube with tab in connector. Insert the handle tube into the
connector. Tighten collar at base of handle tube onto connector until it locks
with a “snap”.
Snap cord assembly into the cord clip located on the left side of the collar.
Leave excess cord at the power head to allow movement. Position wire
assembly along tube between rear of outer bag and outer bag covers.
Operating the Oreck Gold
Make sure the disposable inner bag is in place. DO NOT operate the vacuum without a
disposable inner bag. Plug the power cord into an electrical outlet and press the On Low
( l ) - On High ( ll ) - OFF ( O ) switch on the handle assembly when ready to operate.
1
2
4
5
6
3
1
Cord
Clip
Cord
Clip
2
Up-Position Lock - Place foot on power head and lean handle
back gently to release lock for vacuum use. Return handle to
the full upright position to engage lock.
Note: Do not operate the vacuum while in the upright and
locked position. Do not let the vacuum run while in any one
stationary position for any period of time. Keep the vacuum
moving while in operation.
Carry Handle - Raise the carry handle
located on back of the vacuum for
easy lifting, carrying, and vacuuming
stairs. Lower the handle during use to
eliminate obstruction.
Easy Power Cord Storage - Raise carry handle and wrap power
cord around carry handle and Comfort Fit
®
handle.
Cord Dump - To release cord, twist cord dump located on Comfort
Fit
®
handle 1/2 turn. Slide cord off handle.
5
6
4
3
