Oricom UHF2500 User Manual

13

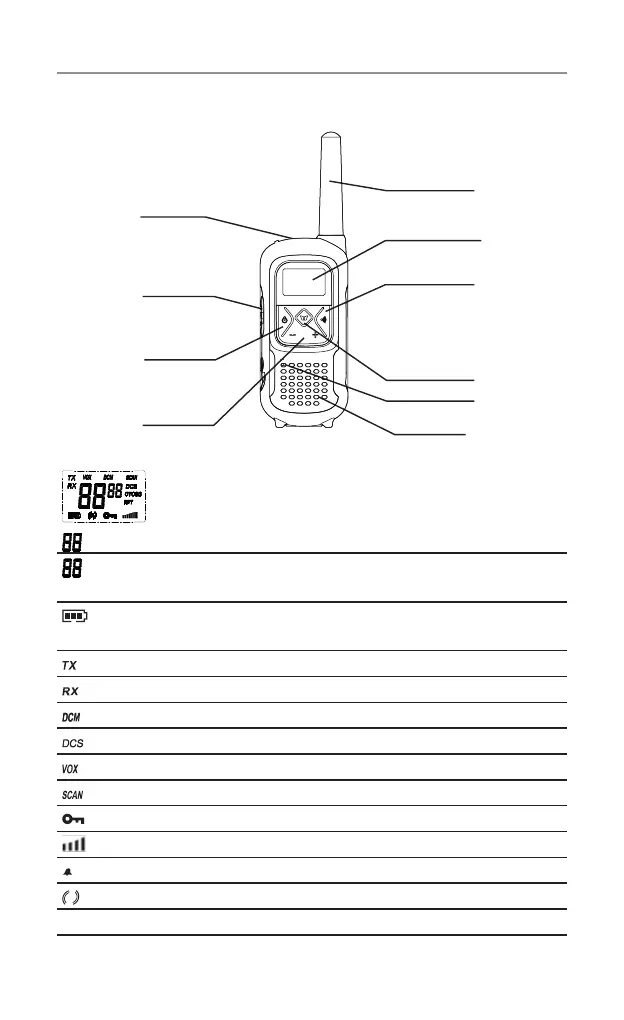

Antenna
Speaker
LCD Screen
- Displays the current channel
selection and other radio
symbols.
PTT ( PUSH TO TALK)
button
- Press and hold to
transmit.
+
/ - Buttons
- Press to change
channels, volume, and
to select settings during
programming.
MIC (Microphone)
MENU Button
CALL button
- Press to send
Ringing tone to other radios.
Power On / Off
- Press and hold to turn
the unit ON or OFF.
Ear/Mic/Charg
e
j
ack
Controls and Indicators
Controls and Indicators
LCD Screen
Channel number. Changes from 1 to 80 as selected by the user.
CTCSS code. Changes from 1 to 38 as selected by the user. DCS
code changes from 1-83.
Displays the Battery charge level. When the bars are reduced, the
battery needs recharging.
Displayed when transmitting a signal.
Displayed when receiving a signal.
Displayed when the Dual Watch function turned on.
Displayed when the Digital Code System turned on.
 DisplayedwhentheVOXfeatureisenabled.
Displayed when scanning all channels.
Displayed when the Key Lock feature is activated.
Displays the current Speaker volume level.
Displayed when the call signal is on.
Displayed when the vibrator function is activated.
RPT
Displayed when the Repeater Function is selected.
