8. Rear Hi-Pass Crossover Frequency Control - adjusts the frequency of the rear chan-
nels Hi-Pass crossover.
9. Rear Lo-Pass Crossover Frequency Control - adjusts the frequency of the rear
channels Lo-Pass crossover.
10. Rear LPF, FULL, HPF Switch - selects either Lo-pass crossover, Full range or Hi-Pass
crossover for rear channels.
11. Rear Gain Control - continuously adjusts from 250mV to 5V for full rear channel
output power.
12. RCA Rear Inputs - accepts RCA input from the Rear channels of a source unit.
13. Status LED - Will indicate any fault condition in amplifier, also lights briefly during
muting phase of turn-on.
14. Front Hi-Pass Crossover Frequency Control - adjusts the frequency of the front
channels Hi-Pass crossover.
15. Rear Variable Bass Control - Adjust bass gain on rear channels from 0dB to +8dB.
Figure 2
Figura 2
Abbildung 2

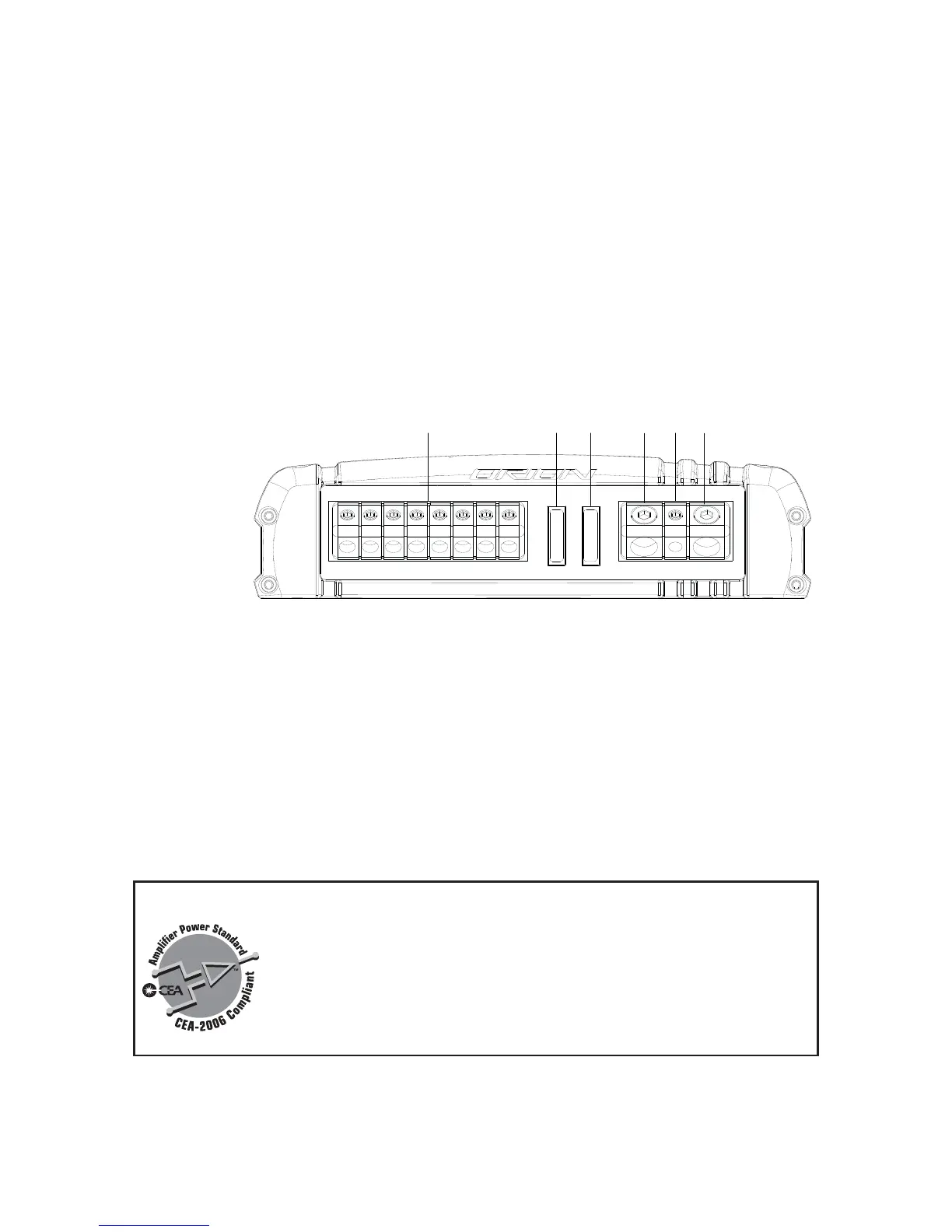

Output Plate
1. Speaker Connections - accepts up to 12 AWG speaker wire.
2. 2 ATC Fuses - protects the amplifier from over current situations.
3. Power Connections - accepts up to 4 AWG power cables.
4. REM Remote Turn-on Input - turns on the amplifier when fed 12 V+.
4. Ground Connection - accepts up to 4 AWG ground cable.
CEA SPECIFICATIONS
CO6004
Power Output: 60 Watts RMS x 4 at 4 ohms and < 1% THD+N
Signal to Noise Ratio: -70 dBA (reference 1 Watt into 4 ohms)
Addition Power: 75 Watts RMS x 4 at 2 ohms and < 1% THD+N
