Installation and Operation Manual - Osburn 1700-I
ENGLISH
6. Cut the gasket to the required length.
7. Pinch the gasket onto the glass in a U shape, all around the glass.
6.3 Door
In order for the insert to burn at its best efficiency, the door must provide a perfect seal with the
firebox. Therefore, the gasket should be inspected periodically to check for a good seal. The
tightness of the door seal can be verified by closing and latching the door on a strip of paper.
The test must be performed all around the door. If the paper slips out easily anywhere, either
adjust the door or replace the gasket.

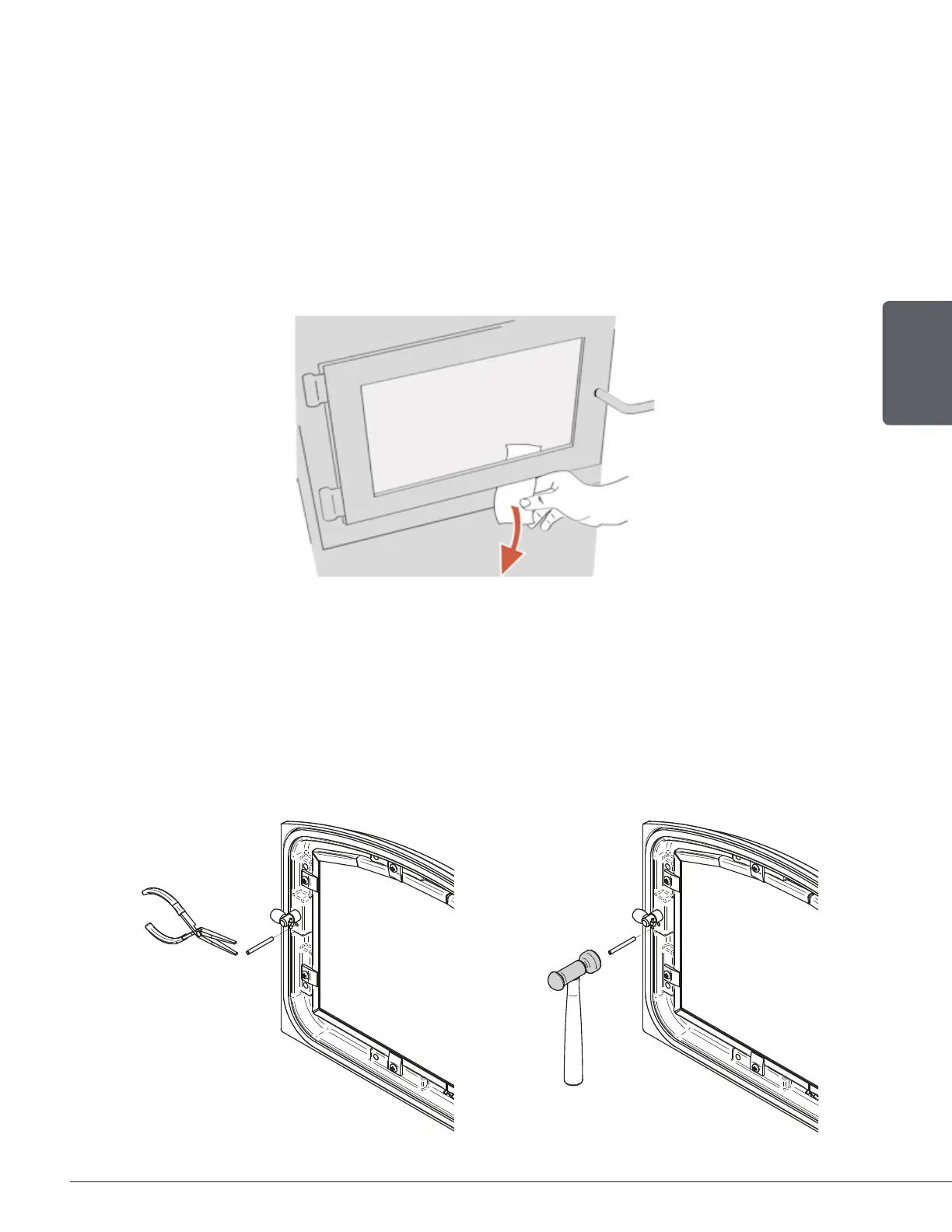

Figure 16: Door gasket seal verification
6.3.1 Adjustment
The gasket seal may be improved with a simple latch mechanism adjustment:
1. Remove the split pin by pulling and turning it using pliers.
2. Turn the handle one counterclockwise turn to increase pressure.
3. Reinstall the split pin with a small hammer.
Figure 17: Removing the split pin Figure 18: Installing the split pin
