Installation and Operation Manual - Osburn 1700-I
ENGLISH

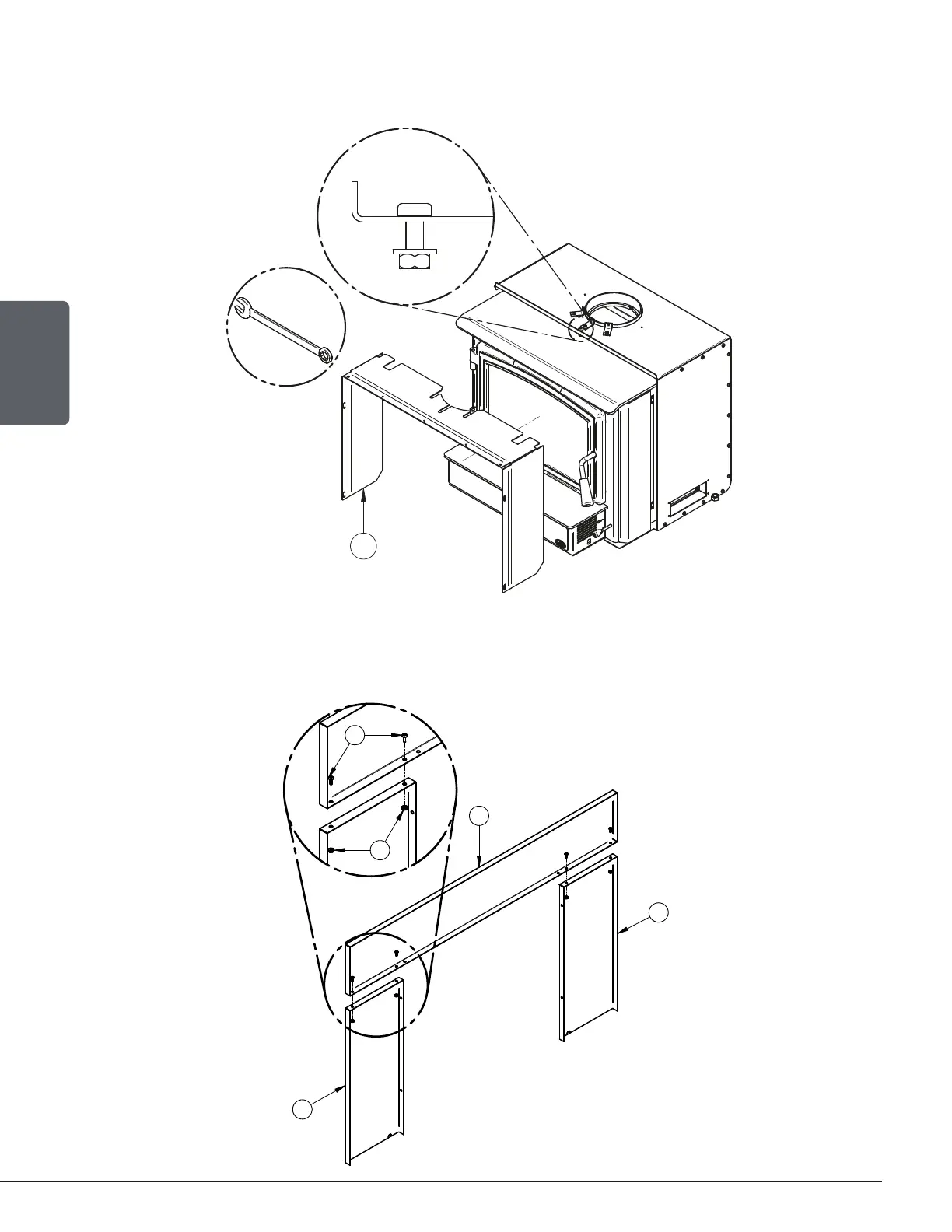

APPENDIX 4: FACEPLATE AND TRIMS INSTALLATION
1. Remove the faceplate extension (K) secured between the firebox and the convection air jacket.
K
2. Place the faceplate panels with the finished side down on a flat, soft, non-abrasive surface.
Line up the holes of the upper faceplate panel (L) with the holes of the side panels (M) and (N).
Secure them together using four bolts (O) and nuts (P) provided.
A
DETAIL A
O
P
L
M
N
