Panasonic CQ-JT1010X User Manual

·
Power Supply Voltage : DC13.2V
·
Output Impedance : 4
Ω
·
Output Power : 0.5W
·
Balance, Fader Control : center
·
Bass, Treble Control : Center
9 ALIGNMENT INSTRUCTIONS
9.1. Alignment Conditions
Notes:
Do not align the FM/AM package blocks. When the package block is necessary, it will be supplied already aligned at
the factory.
9.2. Dolby NR Alignment
Step Alignment Item Test Tape VTVM Connection Adjust Remarks
(1) DOLBY NR Rch RFKZ0038 TP821 VR821 Adjust for 388mV ±0.5dB
(2) DOLBY NR Lch RFKZ0038 TP831 VR831 Adjust for 388mV ±0.5dB

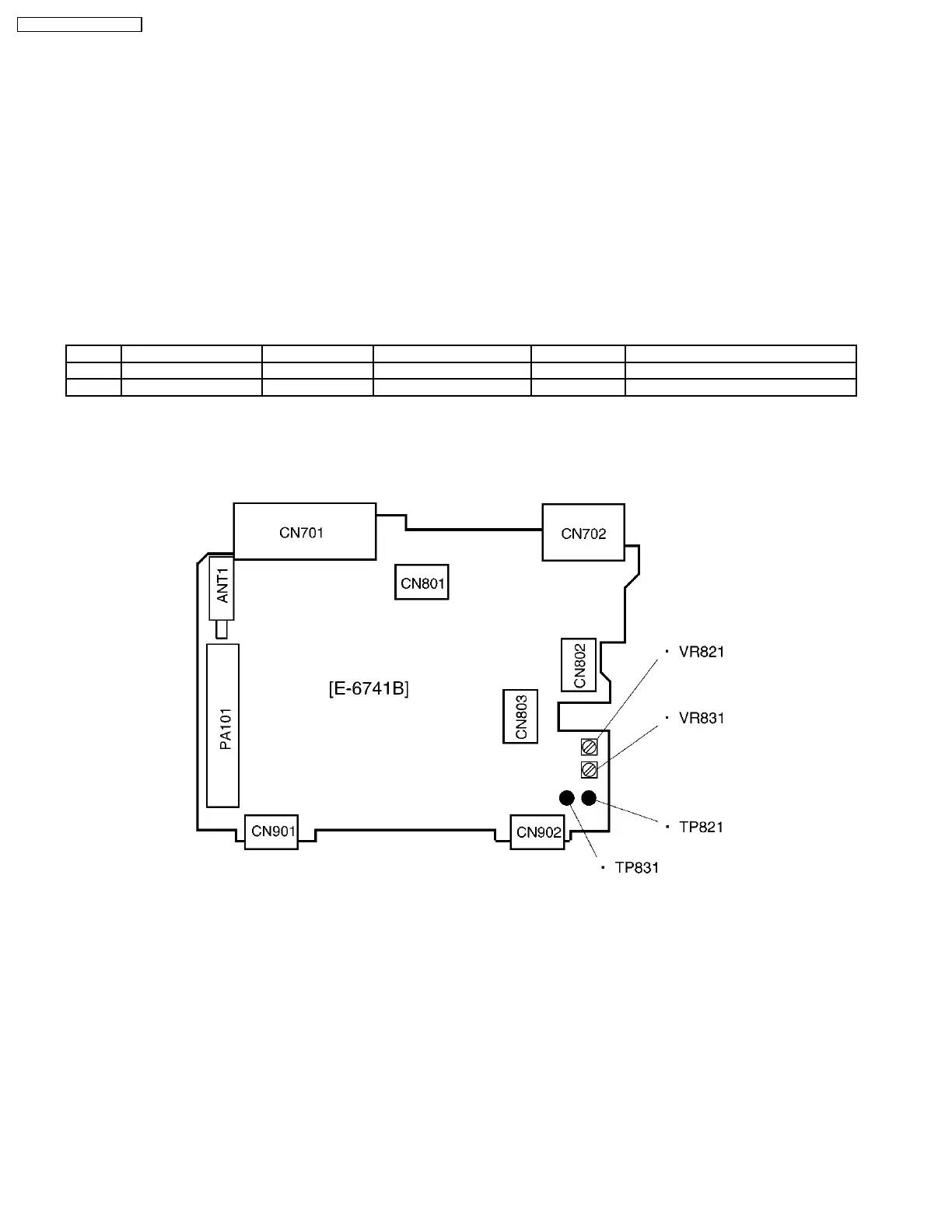

9.3. Alignment Points
12
CQ-JT1010X / CQ-JS6910X

Panasonic CQ-JT1010X Specifications

General

Brand	Panasonic
Model	CQ-JT1010X
Category	Car Stereo System
Language	English
