10.2.1. SELECT THE BEST LOCATION
(Refer to “Select the best location”
section)

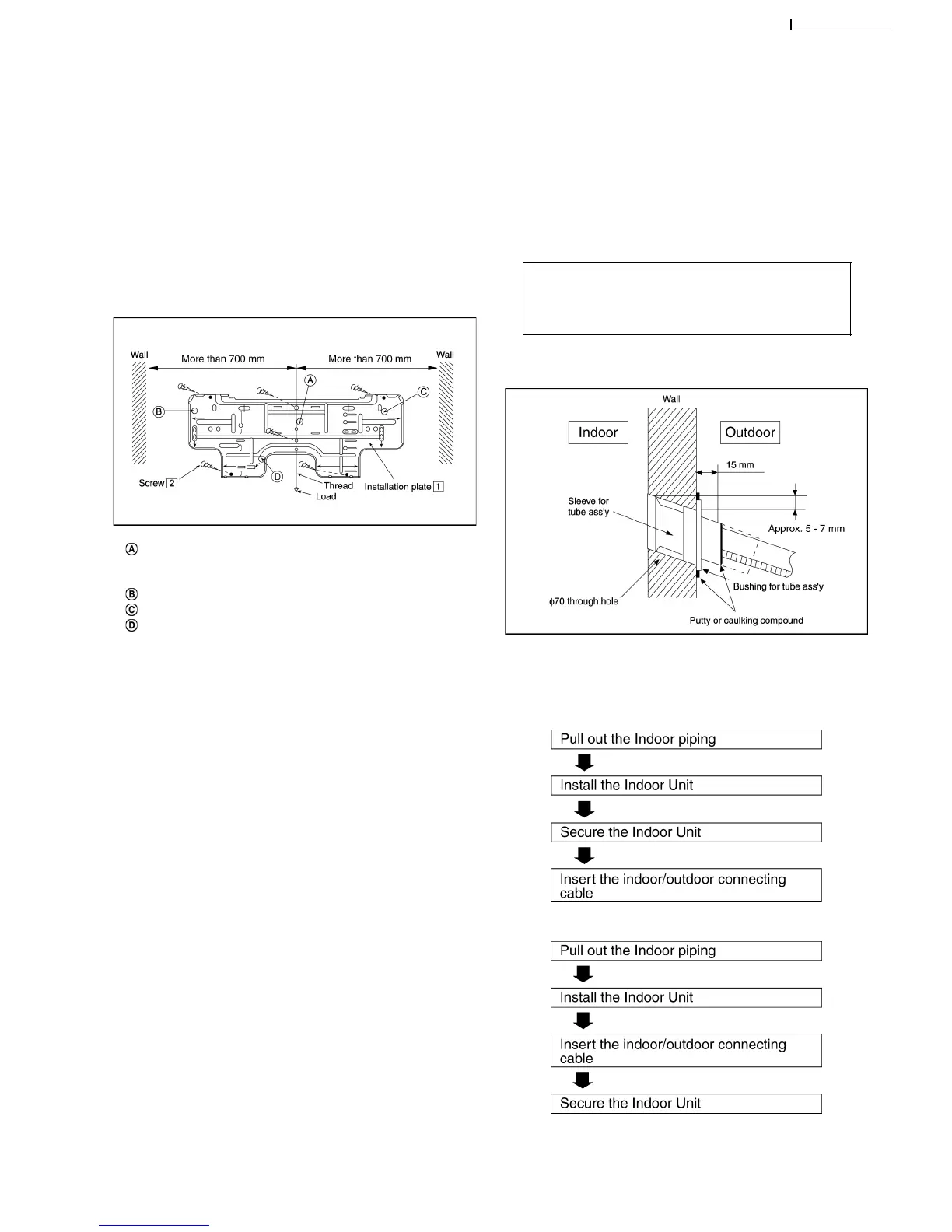

10.2.2. HOW TO FIX INSTALLATION
PLATE
The mounting wall is strong and solid enough to prevent it from
the vibration.
: Unit centre should be at more than 700 mm at right and left
of the wall.
The height should be more than 250 mm from the ceiling.
: From installation plate end to unit left side end is 55 mm.
: From installation plate end to unit right side end is 55 mm.
: Indoor outdoor connecting cable should be about 1100 mm
from this line. (Only for left rear piping)
1. Mount the installation plate on the wall with 6 screws.
(If mounting the unit on the concrete wall, consider using
anchor bolts.)
•
Always mount the installation plate horizontally by
aligning the marking-off line with the thread and using a
level gauge.
2. Drill the piping plate hole with ø70 mm hole-core drill.
•
Line according to the arrows marked on the lower left
and right side of the installation plate. The meeting point
of the extended line is the centre of the hole.
•
Drill the piping hole at either the right or the left and the
hole should be slightly slant to the outdoor side.
10.2.3. TO DRILL A HOLE IN THE WALL
AND INSTALL A SLEEVE OF
PIPING
1. Insert the piping sleeve to the hole.
2. Fix the bushing to the sleeve.
3. Cut the sleeve until it extrudes about 15 mm from the wall.
Caution
When the wall is hollow, please be sure to use the
sleeve for tube ass’y to prevent dangers caused by
mice biting the indoor/outdoor connecting cable.
4. Finish by sealing the sleeve with putty or caulking
compound at the final stage.
10.2.4. INDOOR UNIT INSTALLATION
1.
For the right rear piping
2.
For the right and right bottom piping
3.
For the embedded piping
10.2. INDOOR UNIT
45
CS-A28BKP5/CU-A28BKP5
