Panasonic CS-A7GKD User Manual

17

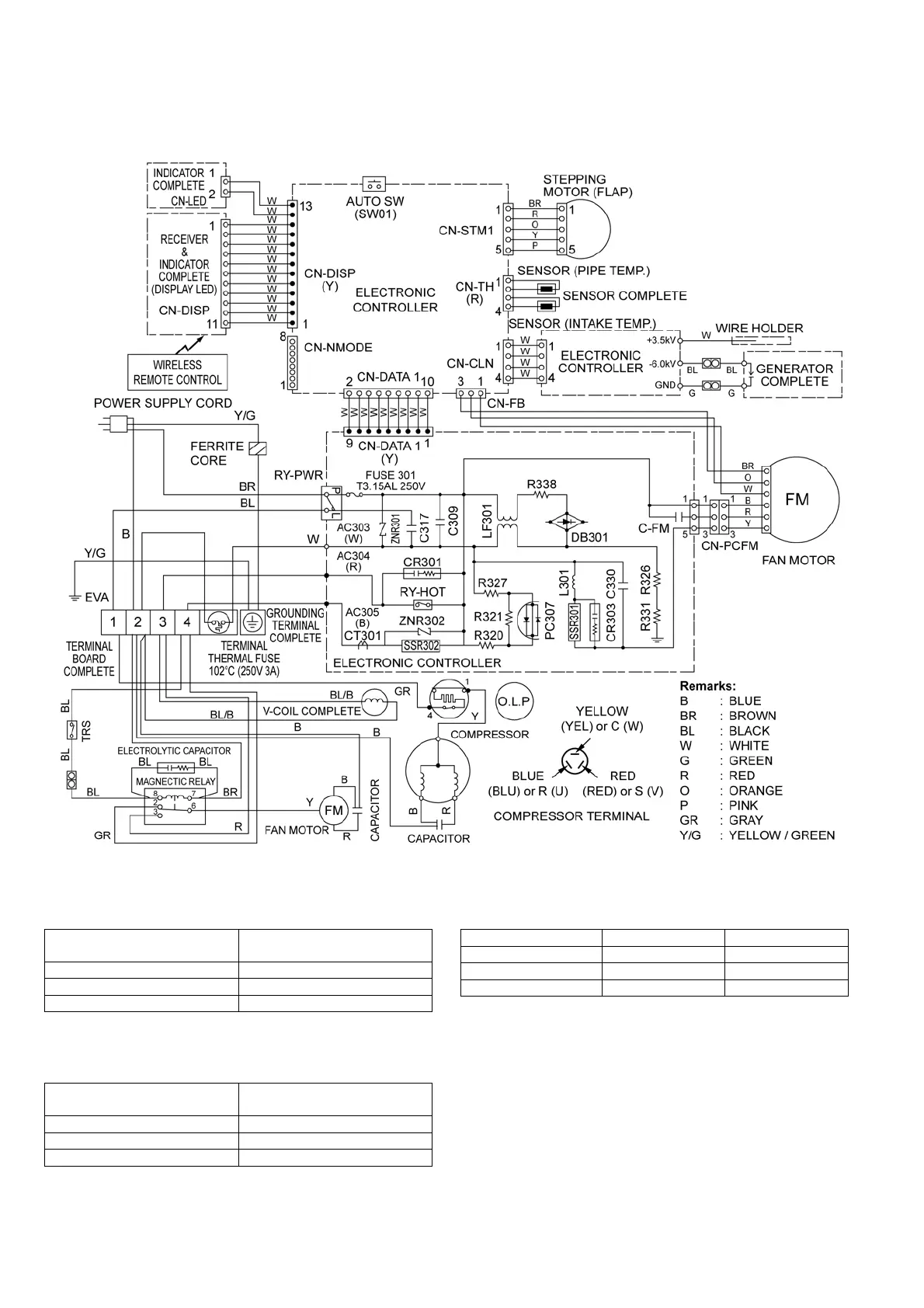

8 Wiring Connection Diagram
8.1. CS-A7GK CU-A7GK / CS-A9GK CU-A9GK
Resistance of Indoor Fan Motor Windings
Note: Resistance at 25°C of ambient temperature.
Resistance of Outdoor Fan Motor Windings
Note: Resistance at 25°C of ambient temperature.
Resistance of Compressor Windings
Note: Resistance at 20°C of ambient temperature.
MODEL CS-A7GK
CS-A9GK
CONNECTION CWA921373
BLUE-YELLOW 390.0 Ω
YELLOW-RED 394.0 Ω
MODEL CU-A7GK
CU-A9GK
CONNECTION CWA951387J
BLUE-YELLOW 287 Ω
YELLOW-RED 238 Ω
MODEL CU-A7GK CU-A9GK
CONNECTION 2RS122D5BC02 2PS156D3BB02
C - R 5.193 Ω 3.501 Ω
C - S 5.557 Ω 3.405 Ω
