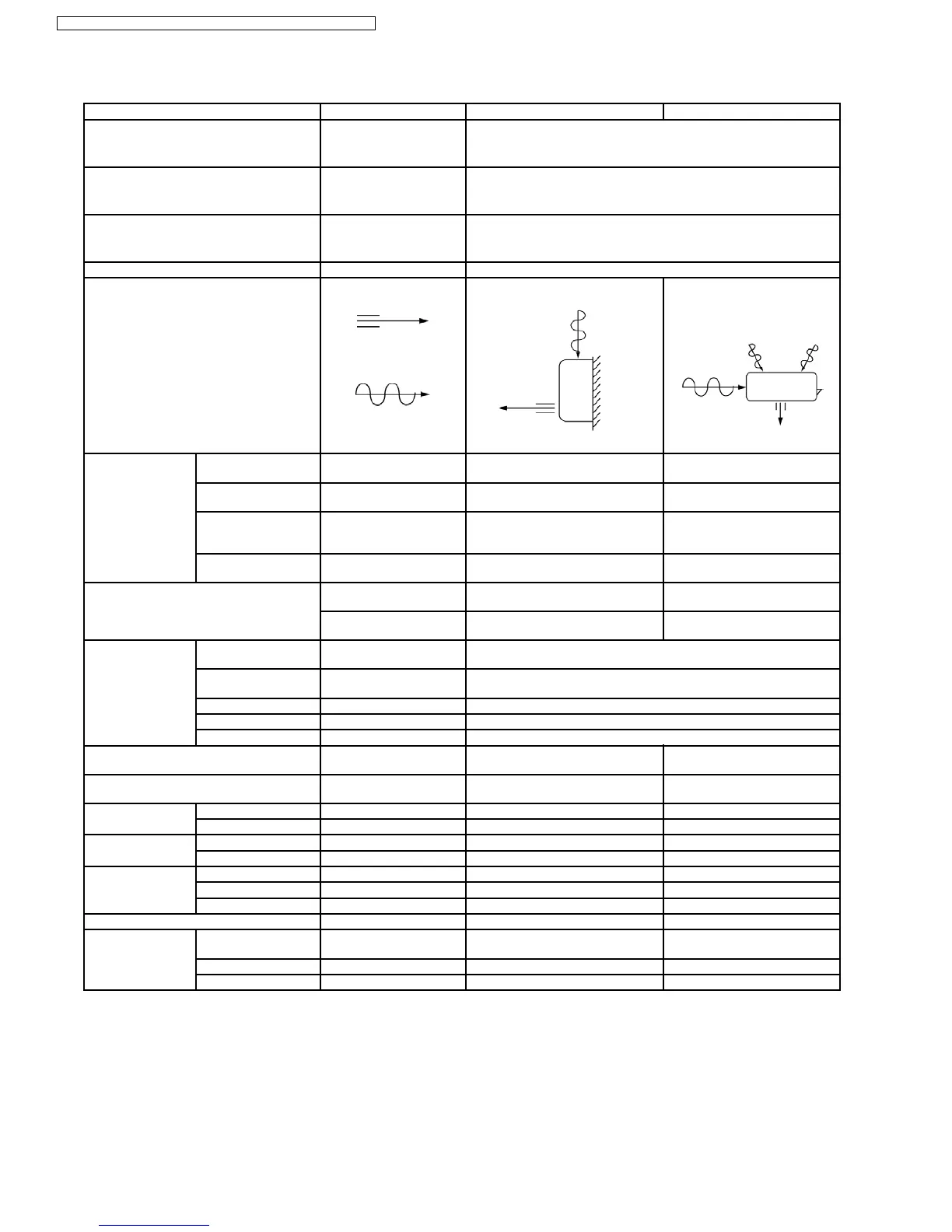

3.3. CS-A12DKD CU-A12DKD
Unit Indoor Unit Outdoor Unit
Power Source (Phase, Voltage, Cycle) ø, V, Hz Single, 220 - 230, 50
Cooling Capacity kW (BTU/h) 3.52 - 3.54 (12,000 - 12,100)
Heating Capacity kW (BTU/h) 4.00 - 4.05 (13,650 - 13,810)
Moisture Removal l/h (Pint/h) 2.0 (4.2)
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Lo m
3
/min (cfm) Cooling; 6.7 (236) - 6.7 (236)
Heating; 7.1 (251) - 7.1 (251)
Me m
3
/min (cfm) Cooling; 8.3 (294) - 8.3 (294)
Heating; 8.3 (293) - 8.3 (293)
Hi m
3
/min (cfm) Cooling; 9.5 (340) - 9.5 (340)
Heating; 9.7 (340) - 9.7 (340)
Cooling; 32.5 (1,150) - 33.5
(1,180)
SHi m
3
/min (cfm) Cooling; 9.7 (343) - 9.7 (343)
Heating;
Noise Level dB (A) Cooling; High 39 - 39, Low 29 - 29
Heating; High 40 - 40, Low 29 - 29
Cooling; High 48 - 49
Heating; High 48 - 49
Power level dB Cooling; High 52 - 52
Heating; High 53 - 53
Cooling; High 63 - 64
Heating; High 64 - 65
Electrical Data Input Power kW Cooling; 1.08 - 1.15
Heating; 1.09 - 1.12
Running Current A Cooling; 5.1 - 5.1
Heating; 5.2 - 5.1
EER W/W (BTU/hW) Cooling; 3.26 - 3.16 (11.1 - 10.8)
COP W/W (BTU/hW) Heating; 3.67 - 3.62 (12.5 - 12.3)
Starting Current A 27.0
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 1/2”
L ; Half Union 1/4”
G ; 3-way valve 1/2”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G ; (gas side) 1/2”
L ; (liquid side) 1/4”
G ; (gas side) 1/2”
L ; (liquid side) 1/4”
Drain
Hose
Inner diameter mm 12
Length mm 650
Power Cord Length m 1.9
Number of core-wire 3 (1.5 mm
2
)
Dimensions Height inch (mm) 11 - 1/32 (280) 21 - 1/4 (540)
Width inch (mm) 31 - 15/32 (799) 30 - 23/32 (780)
Depth inch (mm) 7 - 7/32 (183) 11 - 3/8 (289)
Net Weight lb (kg) 20 (9.0) 82 (37)
Compressor Description Rotary (1 cylinder) rolling piston
type
Motor Type Induction (2-poles)
Rated Output W 950
10
CS-A7DKD CU-A7DKD / CS-A9DKD CU-A9DKD / CS-A12DKD CU-A12DKD /
