10 Troubleshooting Guide
10.1. For standard installation

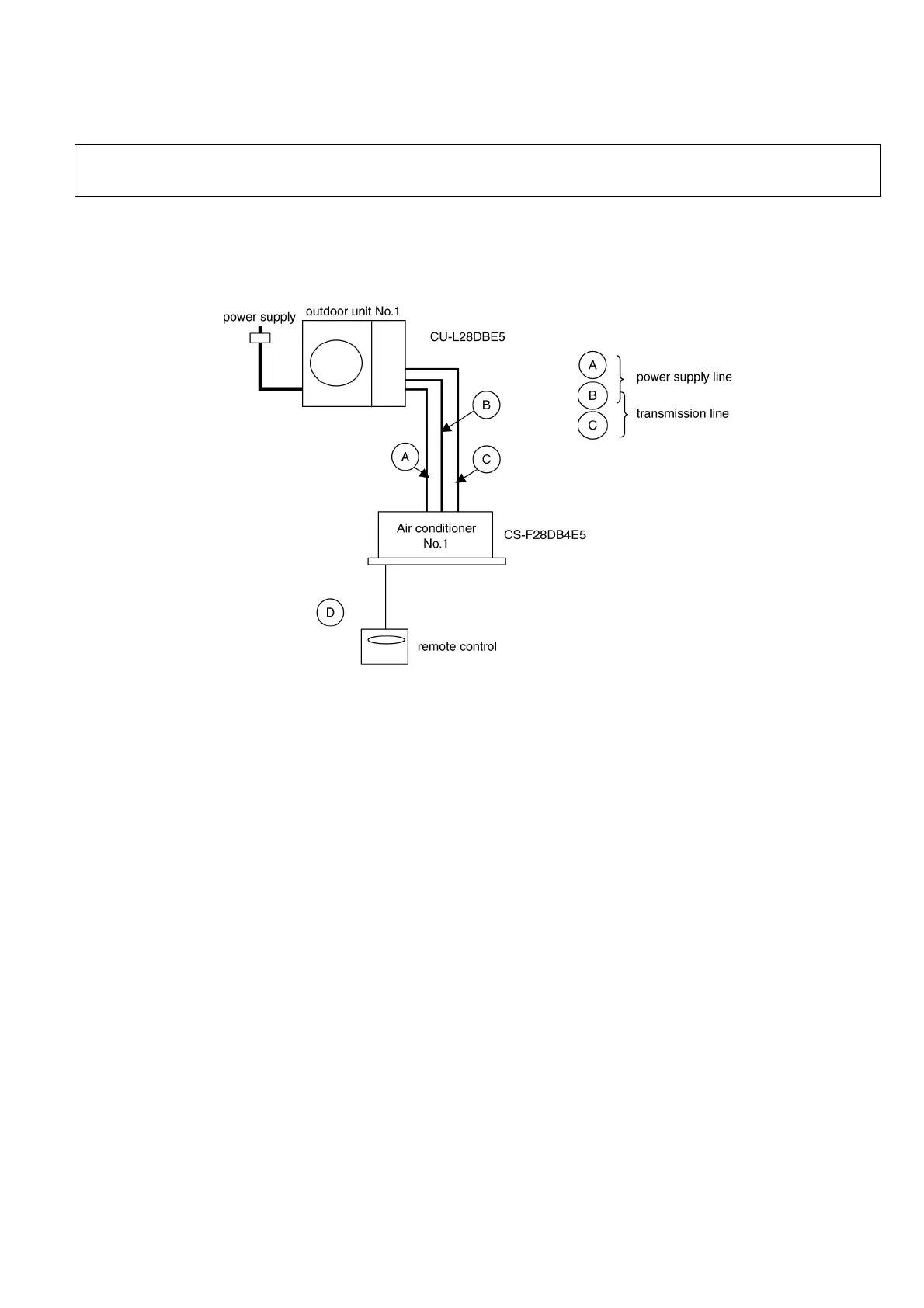

System example
1. The main power is turned on while the indoor-outdoor transmission wires are not connected.
(open circuit at A: power line)
Symptom
Indoor unit : no power supply
Remote control unit : no power supply
Outdoor unit : LED302, 304, 306 on P.C.B flashes
2. The main power is turned on while the indoor-outdoor transmission wires are not connected.
(open circuit at B: power/transmission line)
Symptom
Indoor unit : no power supply
Remote control unit : no power supply
Outdoor unit : LED302, 304, 306 on P.C.B flashes
3. The main power is turned on while the indoor-outdoor transmission wires are not connected.
(open circuit at C: transmission line)
Symptom
Remote control unit : “check” flashes
Error code : F27-01 (indoor/outdoor transmission error)
Indoor unit : LED1 on P.C.B flashes
Outdoor unit : LED302, 304, 306 on P.C.B flash
If test operation does not proceed correctly :
Carry out test operation after approximately 12 hours have passed since the power was turned on (crank case heater is energized). If operation
started by using the remote control within 1 minute of turning on the power, the outdoor unit setting will not be made correctly and correct operation
will not be possible.
