1 ABOUT LEAD FREE SOLDER (PbF) 2
2 FEATUERS
2
3 REPLACEING THE FUSE
2
4 DIMENSIONS
2
5 WIRING CONNECTION
3
1 ABOUT LEAD FREE
SOLDER (PbF)
Distinction of PbF PCB:
PCBs (manufactured) using lead free solder will have a PbF
stamp on the PCB.
Caution :
•
• •
• Pb free solder has a higher melting point than standard
solder; Typically the melting point is 50 - 70°F (30 -
40°C) higher. Please use a soldering iron with
temperature control and adjust it to 700 ± 20°F (370 ±
10°C). In case of using high temperature soldering iron,
please be careful not to heat too long.
•
• •
• Pb free solder will tend to splash when heated too high
(about 1100°F/600°C)
•
• •
• This lead free solder will be used for the products after
serial No. 1,000,001.
2 FEATUERS
•
• •
• 1100 W × 1channel maximum power output
•
• •
• Low-Pass Filter for subwoofer
•
• •
• Hight Level Speaker Input connection
•
• •
• Bass boost control system
•
• •
• Crossover Frequency Control
•
• •
• RCA output terminals
•
• •
• 5.1-channel Surround System (Combination with other
Panasonic car audio products)
6 REPLACEMENT PARTS LIST 4
7 EXPLODED VIEW (Unit)
9
8 WIRING DIAGRAM
10
9 SCHEMATIC DIAGRAM
15
10 BLOCK DIAGRAM
19
3 REPLACEING THE FUSE
Use fuses of the same specified rating 25 amps. Using different
substitutes or fuses with higher ratings, or connecting the unit
directly without a fuse, could cause fire or damage to the stereo
unit.

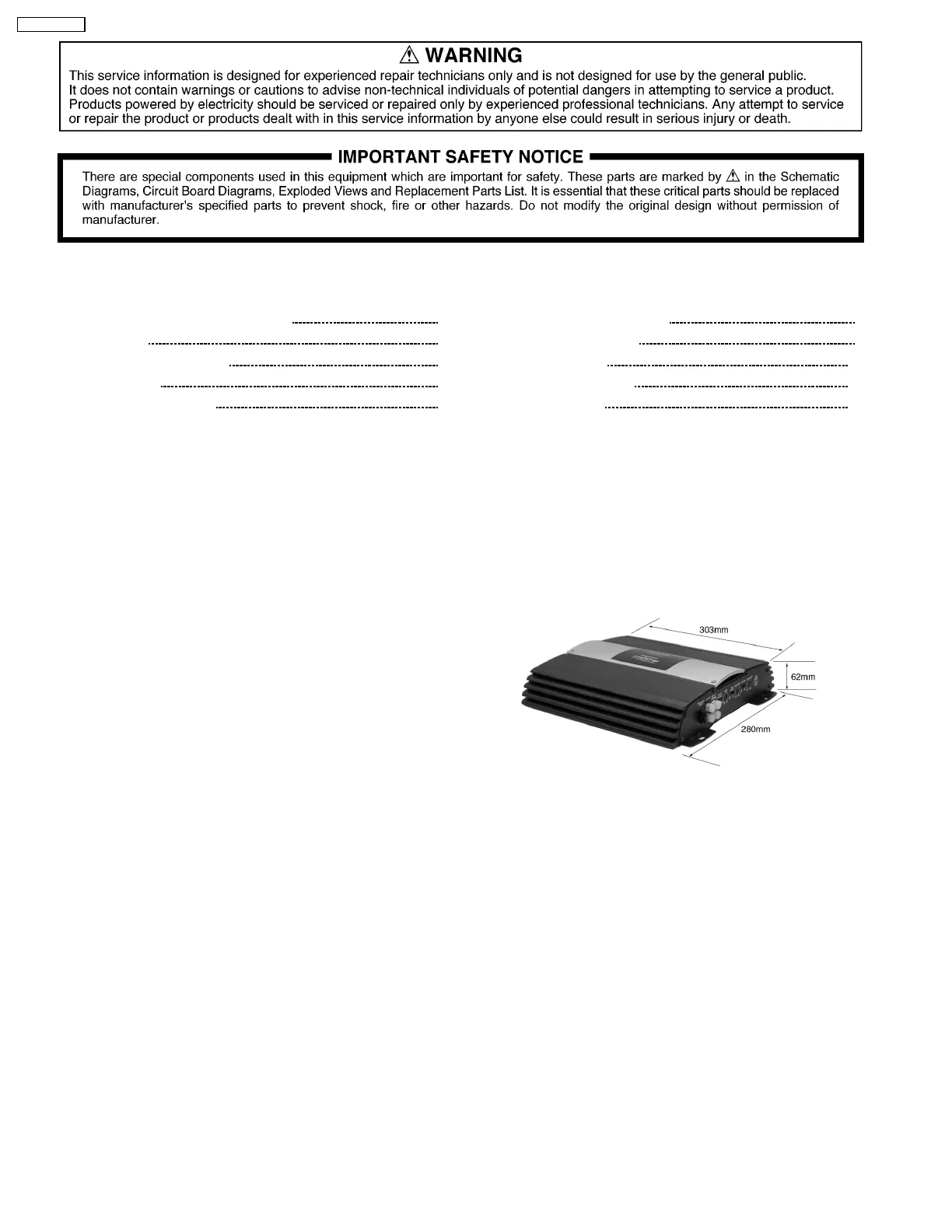

4 DIMENSIONS
CONTENTS
Page Page
2
CY-PAD1003N
