Panasonic CZ-RTC6BL Installation Instructions

7
Installation Precautions

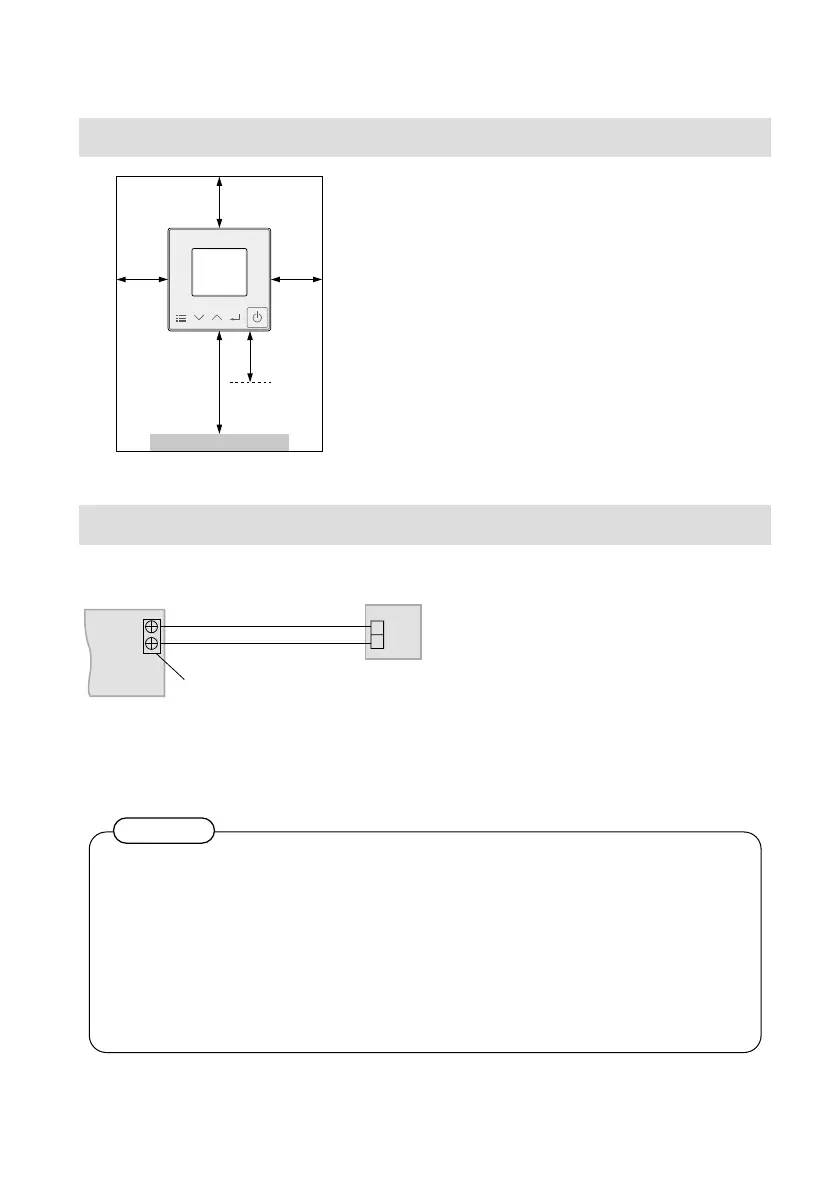

Installation location
1 to
1.5 m
50
mm
50 mm
50 mm
50 mm
Floor
 Install at the height of 1 to 1.5 m from the fl oor
( Location where average room temperature can be detected ).
 Keep a space around the remote controller as detailed
on the fi gure shown left.
 Avoid the following locations for installation.
• In the shadow or backside of objects deviated from the
room airfl ow
• Location where condensation occurs
( The remote controller is not moisture proof or drip proof )
• Location near heat source
 Keep distance of 1 m or more from the TV, radio and PC.
(Image blur or related noise may occur)
 Do not use in special environments.
Use in places with much oil (including machine oil),
steam, fl ammable or corrosive gas, voltage fl uctuation,
surrounding the metal body, may lead to severe
decrease in functionality and damage to parts.
Remote control wiring
Wiring diagram
1
2
R1
R2
Indoor unit
Terminals for RC wiring
RC
RC wiring (fi eld supply)
• No polarity
 Type of wiring
 Use cables of 0.75 to 1.25 mm
2
.
 Total wire length: 500 m or less
( The wire length between indoor units
should be 200 m or less.)
 Number of connectable units
 Remote controller:
1 unit connection only
When connecting the remote controller to indoor
units released in April 2020 and after
(PACi NX series and subsequent series),
2 remote controllers can be connected.
*
2 ×CZ-RTC6BL (CZ-RTC6WBL) cannot be connected
 Indoor unit : Max. 8
 Use the fi eld supplied RC wiring with at least 1 mm in thickness of insulation part including the
sheath.
Wiring Regulations may diff er depending on location. For fi eld wiring rules, please refer to your
LOCAL ELECTRICAL CODES.
You must ensure that installation complies with relevant rules and regulations.
 Be careful not to connect cables to other terminals of indoor units (e.g. power source wiring
terminal). Malfunction may occur.
 Do not bundle together with the power source wiring or store in the same metal tube. Operation
error may occur.
 If noise is induced to the unit power supply, attach a noise fi lter.
Attention
