3 Service Navigation
3.1. Introduction
This service manual contains technical information, which allow service personnel’s to understand and service this model.
Please place orders using the parts list and not the drawing reference numbers.
If the circuit is changed or modified, the information will be followed by service manual to be controlled with original service manual.

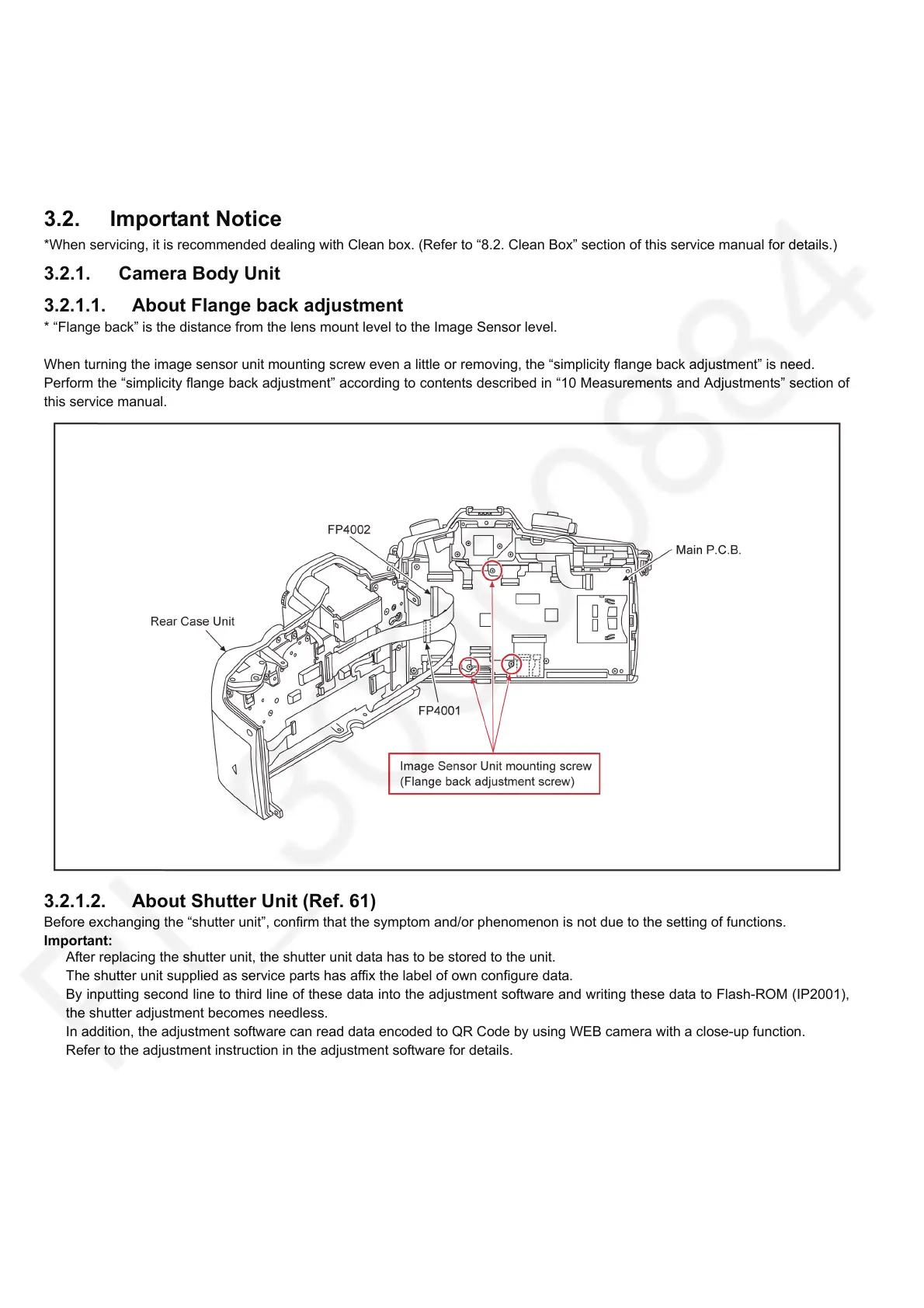

3.2. Important Notice
*When servicing, it is recommended dealing with Clean box. (Refer to “8.2. Clean Box” section of this service manual for details.)
3.2.1. Camera Body Unit
3.2.1.1. About Flange back adjustment
* “Flange back” is the distance from the lens mount level to the Image Sensor level.
When turning the image sensor unit mounting screw even a little or removing, the “simplicity flange back adjustment” is need.
Perform the “simplicity flange back adjustment” according to contents described in “10 Measurements and Adjustments” section of
this service manual.
3.2.1.2. About Shutter Unit (Ref. 61)
Before exchanging the “shutter unit”, confirm that the symptom and/or phenomenon is not due to the setting of functions.
Important:
After replacing the shutter unit, the shutter unit data has to be stored to the unit.
The shutter unit supplied as service parts has affix the label of own configure data.
By inputting second line to third line of these data into the adjustment software and writing these data to Flash-ROM (IP2001),
the shutter adjustment becomes needless.
In addition, the adjustment software can read data encoded to QR Code by using WEB camera with a close-up function.
Refer to the adjustment instruction in the adjustment software for details.
