Connecting to other equipment
[PLAYBACK] Mode: ¸
Playing Back Pictures on a TV Screen
Preparations:
Set the [TV ASPECT]. (P25)
Turn this unit and the TV off.
1 Yellow: to the video input socket
2 White: to the audio input socket

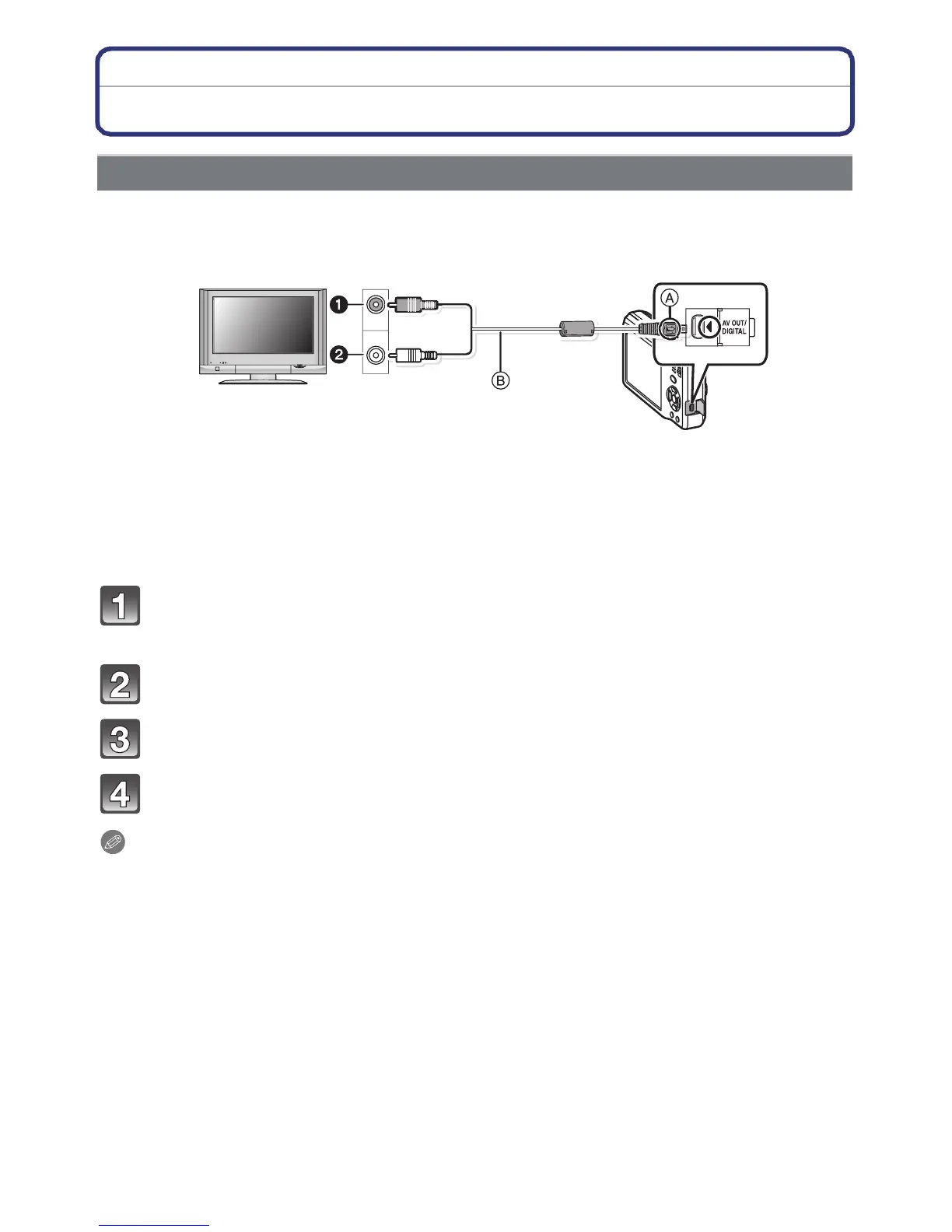

A Align the marks, and insert.
B AV cable (supplied)
• Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may be bent out of shape which will cause a malfunction.)
Connect the AV cable
(supplied)
to the video input and the audio input
sockets on the TV.
Connect the AV cable to the [AV OUT] socket on the camera.
Turn the TV on and select external input.
Turn the camera on.
Note
• The LCD monitor of this unit is turned off when the AV cable is connected.
• Depending on the [PICTURE SIZE], black bands may be displayed on the top and bottom or
the left and right of the pictures.
• Do not use any other AV cables except the one supplied.
• Read the operating instructions for the TV.
• When you play back a picture vertically, it may be blurry.
• You can view pictures on TVs in other countries (regions) which use the NTSC or PAL system
when you set [VIDEO OUT] in the [SETUP] menu.
(PAL video out is not available on the version DMC-F3P sold in the U.S. and the version
DMC-F3PC sold in Canada.)
Playing back pictures using the AV cable (supplied)
