65
VQT3A36
Recording
∫ About the Histogram
A histogram is a graph that displays brightness along the horizontal axis (black to white)
and the number of pixels at each brightness level on the vertical axis.
It allows you to easily check a picture’s exposure.

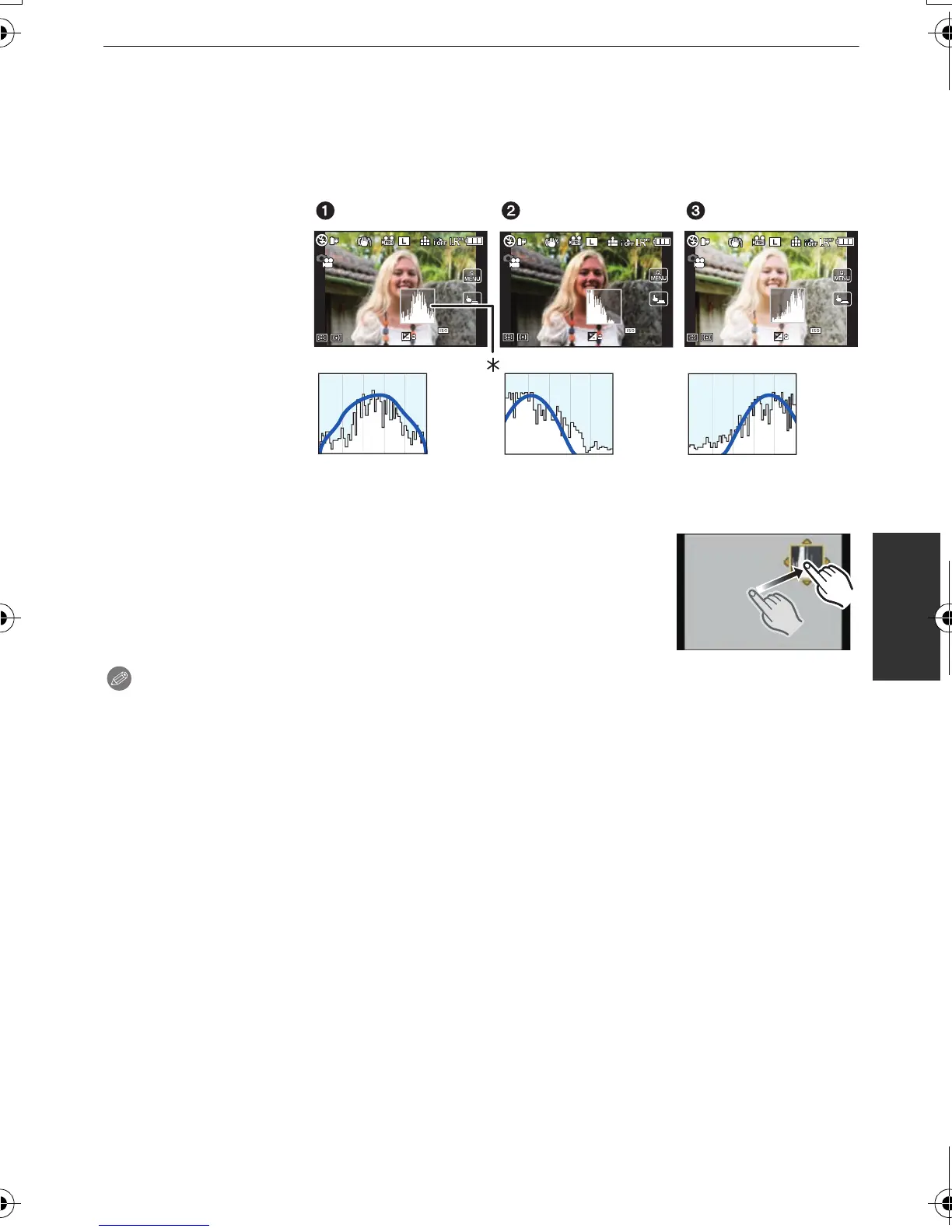

Examples of histogram
∫ Set the position of the histogram
•
Set the [HISTOGRAM] in the [CUSTOM] menu to [ON].
Touch the histogram and drag it to the position you want to
move it to (P15).
•
You can also set the position of the histogram with the cursor button
in the Quick Menu (P57) while in button operation or [CUSTOM]
menu.
Note
•
When the recorded picture and the histogram do not match each other under the
following conditions, the histogram is displayed in orange.
– When the Manual Exposure Assistance is other than [n0] during Exposure Compensation or
in the Manual Exposure Mode
– When the flash is activated
– When the flash is closed
• When the brightness of the screen is not correctly displayed in dark places
• When the exposure is not adequately adjusted
• The histogram is an approximation in the Recording Mode.
• The histogram displayed in this camera does not match histograms displayed by picture editing
software used in PCs etc.
1 Properly Exposed
2 Under Exposed
3 Overexposed
¢ Histogram
PPP
99
AWBAWBAWB
STD.STD.STD.
3.53.53.5
100100100
AFSAFSAFS
××
PP
99
AWBAWBAWB
STD.STD.STD.
3.53.53.5
200200200
AFSAFSAFS
××
STD.STD.STD.
PP
3.53.53.5
505050
99
AWBAWBAWB
AFSAFSAFS
××
00 00 00
AU
TOTO
AU
TO
AU
TO
AU
TOTO
AU
TO
AU
TO
AU
TOTO
AU
TO
AU
TO
DMC-GH2H&GH2K&GH2PP-VQT3A36_eng.book 65 ページ ２０１０年１０月１９日 火曜日 午前１１時３分
