Level
Installation Water Inlet & Drain Hose and Power Cord
Water Inlet & Drain Hose and Power Cord
Installation
Horizontal Adjustment
Tightening Drain Hose
- Make sure the washing machine is level and
stable when the four feet are placed on the
ground.
You can adjust the levelness using a level or by
adjusting the height of the feet (place the level
at the left, right, front and rear respectively as
required).
Tighten nut A using a thin-type spanner.
Adjust the height at the feet (4) by rotating as
shown below.
Tighten nut A upward to prevent looseness of
the feet.
The level and spanner are not included in
the scope of accessories.
-
-
-
-
※
A
B
Up
ward
Downward
Caution
Caution

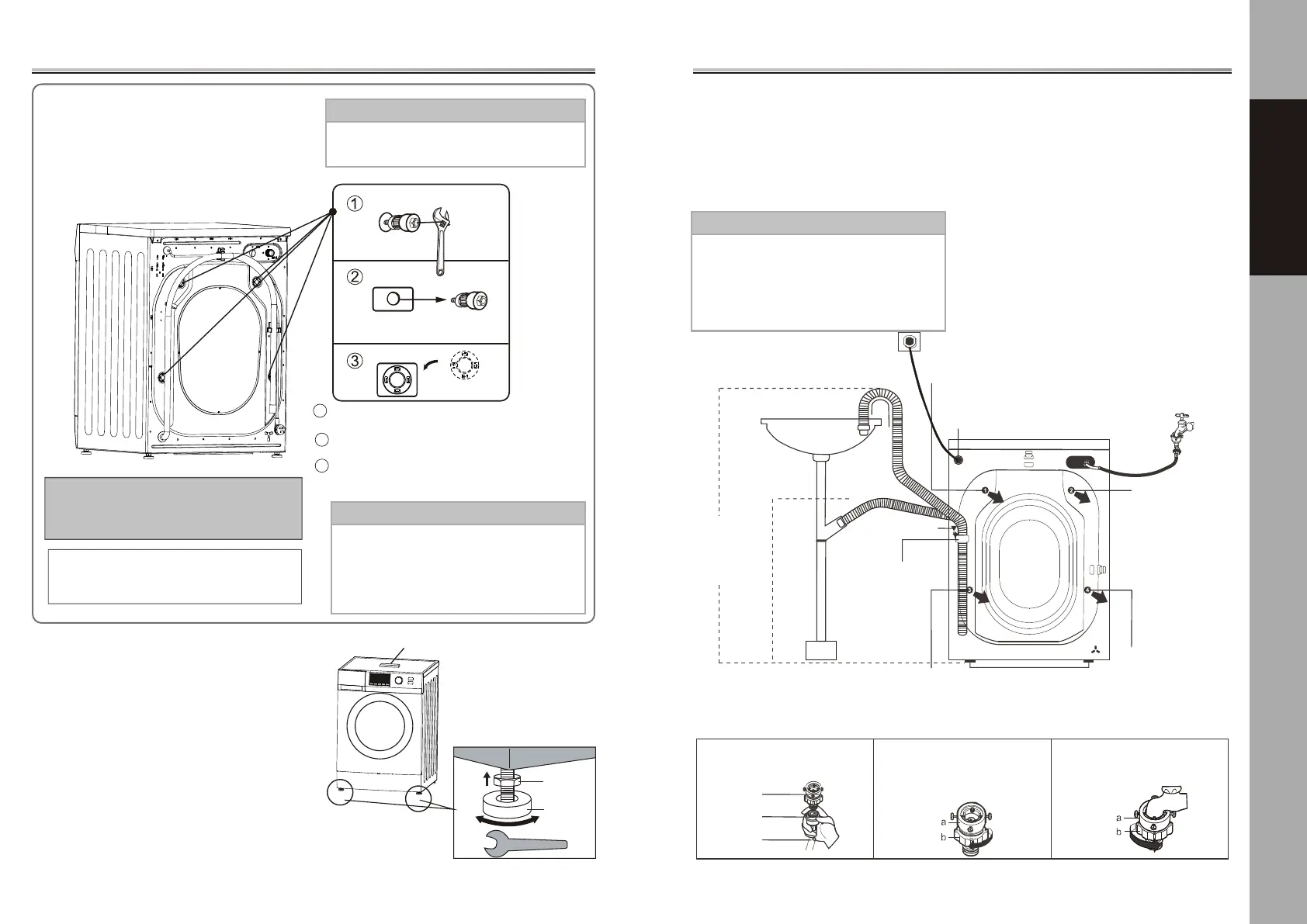

How to Remove Anchor Bolts Used for
Transport
Internal parts have been fixed by four anchor
bolts used for transport. Make sure these
bolts are available during handling or moving.
Remove them before setting using a spanner
(not included in the list of accessories).
Excessive vibrations may occur if the machine
spins with the bolts attached.anchor
– Foreign matters or a child's fingers may
enter the machine, if the cover cap is
not properly installed.
– Please contact the designated service
center if you find it hard to pull out the
rubber due to deformation.
The anchor bolts used for are needed
when you need to move the washing machine
due to change of home address. The bolts
must be provided to the customers.
anchor
You need to install in the reversed procedure
if you need to handle the washing machine
once again.
Loosen the bolts (4 bolts) using a
spanner etc.
Rotate the rubber part of the bolt anticlockwise
so that it is pulled out.
Take out the 4 cover caps in the accessories.
Press the cover cap against the holes until a
desired fitting is realized.
anchor
1
2
3
8 9
Operating Instructions
Caution
- Do not remove the fastening clip of the
drain hose.
- Improper horizontal adjustment may result
in high noise from the washing machine,
excessive vibrations and obvious
displacement of the machine.
anchor bolt
anchor bolt
Power cord
Adjusting feet
Remove the joint from the water
inlet hose supplied together with
the machine.
Connect the water inlet joint and the
water tap. Rotate part b as shown
below until reliable tightening is
obtained.
Loosen the four screws at the joint
using a cross-head screw-driver.
Rotate part b in the direction shown
below until a 5mm-gap is obtained.
Connecting the water inlet hose
Water inlet hose joint
max 100 cm
1.Be sure to place the end of the drain hose in such a way that the end is within 1m
from the ground to prevent siphoning.
2.Fix the drain hose using a lifting rope to ensure that the bend has no impact on the
water flow. This prevents displacement of the drain hose.
3.Do not insert the drain hose into the washing machine if it is too long to prevent
abnormal operation.
Fastening clip
anchor bolt
anchor bolt
min 60 cm
Fastener
Water inlet hose
