1. Check the installation location.
3. Attach the external drain water hose.
2. Attach the bottom cover.
1212

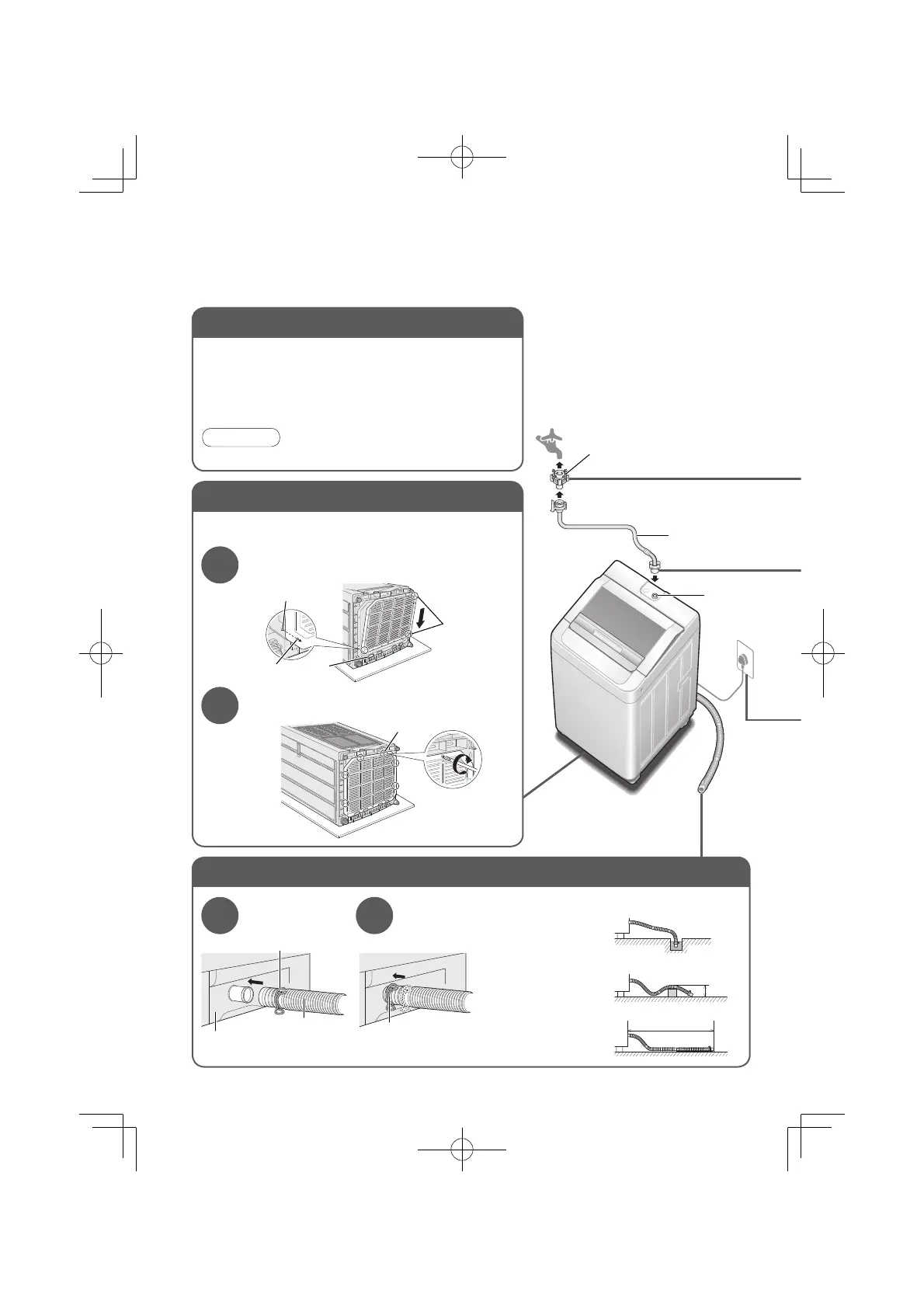

Installation
■
Avoid the following locations for installation.
•
Locations where there is a possibility of freezing.
•
Locations exposed to direct sunlight
(To prevent malfunction or deformation)
•
Uneven or unstable locations
(on blocks, timbers, table with wheels attached, etc.)
●
Do not block the opening of the bottom face with carpet, etc.
●
Insert all the way seated.
NOTE
Connect to the
connection port.
■
Hose arrangement
Slide the hose
band in the arrow
direction.
1 2
10 cm
or less
NG
3 m or less
●
Do not put the hose tip
under the water.
●
The height should be
10 cm or less.
●
The extension length
should be 3 m or less.
(Bottom face)
Water supply
hose
Water tap adaptor
Water
supply
valve
screw
Preparation:
Set a cardboard, etc. and lay the washing machine on it, avoiding
product damage and deformation. (Face the front side down.)
1
Insert along the guides, and set 3 holes to the
corresponding projections.
Hole
Projection
Guide
Hole
2
Fix with screws.
(6 locations for right, left and top)
Screw hole
■
If the installation, test run and inspection of the washing machine are not
carried out following this installation method, Panasonic will not be liable
for any accident or damage caused.
■
Make sure to ask a service person for installation. Do not install by yourself.
Hose band
External drain water hose
Main unit rear side
Hose band
NA-F706562B5F62B3India.indd12NA-F706562B5F62B3India.indd12 2015/02/1014:54:002015/02/1014:54:00
