Panasonic Toughbook 19 User Manual

15

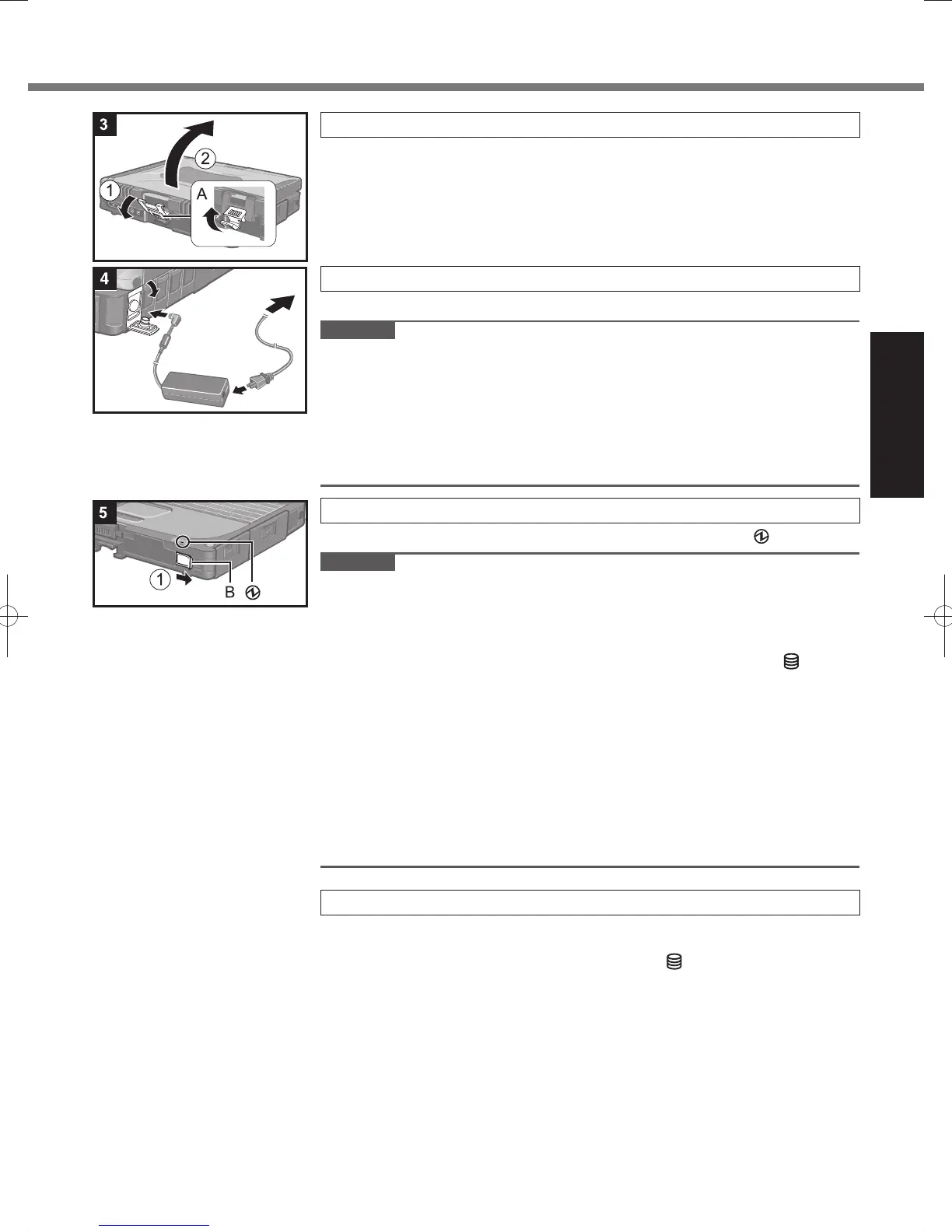

Getting Started
3 Opening the Display
A
Pull up the part (A) and release the latch.
B
Lift open the display.
4 Connect your computer to a power outlet.
The battery charging starts automatically.
CAUTION

Do not disconnect the AC adaptor and do not switch the wireless switch to on
until the fi rst-time operation procedure is completed.

When using the computer for the fi rst time, do not connect any peripheral device
except the battery pack and AC adaptor.

Handling the AC adaptor

Problems such as sudden voltage drops may arise during periods of thunder and
lightning. Since this could adversely affect your computer, an uninterruptible power
source (UPS) is highly recommended unless running from the battery pack alone.
5 Turn on the computer.
A
Slide and hold the power switch (B) until the power indicator lights.
CAUTION

Do not slide the power switch repeatedly.

The computer will forcibly be turned off if you slide and hold the power switch for
four seconds or longer.

Once you turn off the computer, wait for ten seconds or more before you turn on
the computer again.

Do not perform the following operation until the hard disk drive indicator turns off.

Connecting or disconnecting the AC adaptor

Sliding the power switch

Touching the keyboard, touch pad, tablet buttons, touchscreen (only for model
with touchscreen), dual touch (only for model with dual touch) or external mouse

Closing the display

Turn on/off the wireless switch

When the CPU temperature is high, the computer may not start up to prevent
overheating of the CPU. Wait until the computer cools down, and then turn the
power on again. If the computer does not power on even after cooling down,
contact Panasonic Technical Support (

page 33).

Any changes from the default setting of the Setup Utility must not be made until
the First-time Operation is completed.
6 Setup Windows.
Follow the on-screen instructions.

The computer restarts several times. Do not touch the keyboard or touch
pad, and wait until the hard disk drive indicator
has turned off.

After the computer is turned on, the screen remains black or unchanged for
a while, but this is not a malfunction. Wait for a moment until the Windows
setup screen appears.

During setup of Windows, use the touch pad and clicking to move the cursor
and to click an item.

Setup of Windows will take approximately 20 minutes.

Go to the next step, confi rming each message on the display.

“Join a wireless network” screen may not appear.
You can set the Wireless Network after the setup of Windows is complete.

Panasonic Toughbook 19 Specifications

General

Bus type	FSB
Tjunction	100 °C
Processor cache	2 MB
Processor cores	2
Processor model	U7500
System bus rate	- GT/s
Processor family	Intel® Core™2 Duo
Processor series	Intel Core 2 Duo U7000 Series
Processor socket	Socket 479
Processor codename	Merom
Processing Die size	143 mm²
Processor frequency	1.06 GHz
Processor cache type	L2
Processor lithography	65 nm
Processor manufacturer	Intel
Processor front side bus	533 MHz
Processor operating modes	64-bit
ECC supported by processor	No
Thermal Design Power (TDP)	10 W
CPU multiplier (bus/core ratio)	8
Number of Processing Die Transistors	291 M
Motherboard chipset	Intel® GS45 Express
HDD speed	- RPM
HDD interface	SATA
Card reader integrated	Yes
Total storage capacity	80 GB
Compatible memory cards	SD, SDHC
Number of HDDs installed	1
Display diagonal	10.4 \
Display resolution	1024 x 768 pixels
Native aspect ratio	4:3
Display number of colors	16.78 million colors
Type	PC
Video in	0
Modem speed	56 Kbit/s
Power supply type	AC/DC
Dimensions (WxDxH)	271.78 x 215.9 x 48.26 mm
Power requirements	100-240V, 50/60Hz
Wireless technology	Wi-Fi
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Internal memory	1 GB
Memory clock speed	667 MHz
Internal memory type	DDR2-SDRAM
Maximum internal memory	4 GB
Audio system	HD
Pointing device	Touchpad + Pointing Stick
Keyboard number of keys	82
Cabling technology	10/100/1000Base-T(X)
Networking features	Gigabit Ethernet
Mobile network generation	3G
Charging port type	DC-in jack
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
CardBus PCMCIA slot type	Type II
Cable lock slot type	Kensington
Password protection type	BIOS
Battery life (max)	9 h
Battery recharge time	3.5 h
Certification	ISO, RoHS, EPEAT, UL 1604, IP65
Sustainability certificates	ENERGY STAR
Product color	Silver
Discrete graphics card model	Intel® GMA 4500MHD
Processor ARK ID	29763
Processor package size	35 x 35 mm

Weight and Dimensions

Depth	215.9 mm
Width	271.78 mm
Height	48.26 mm
Weight	2300 g
