17

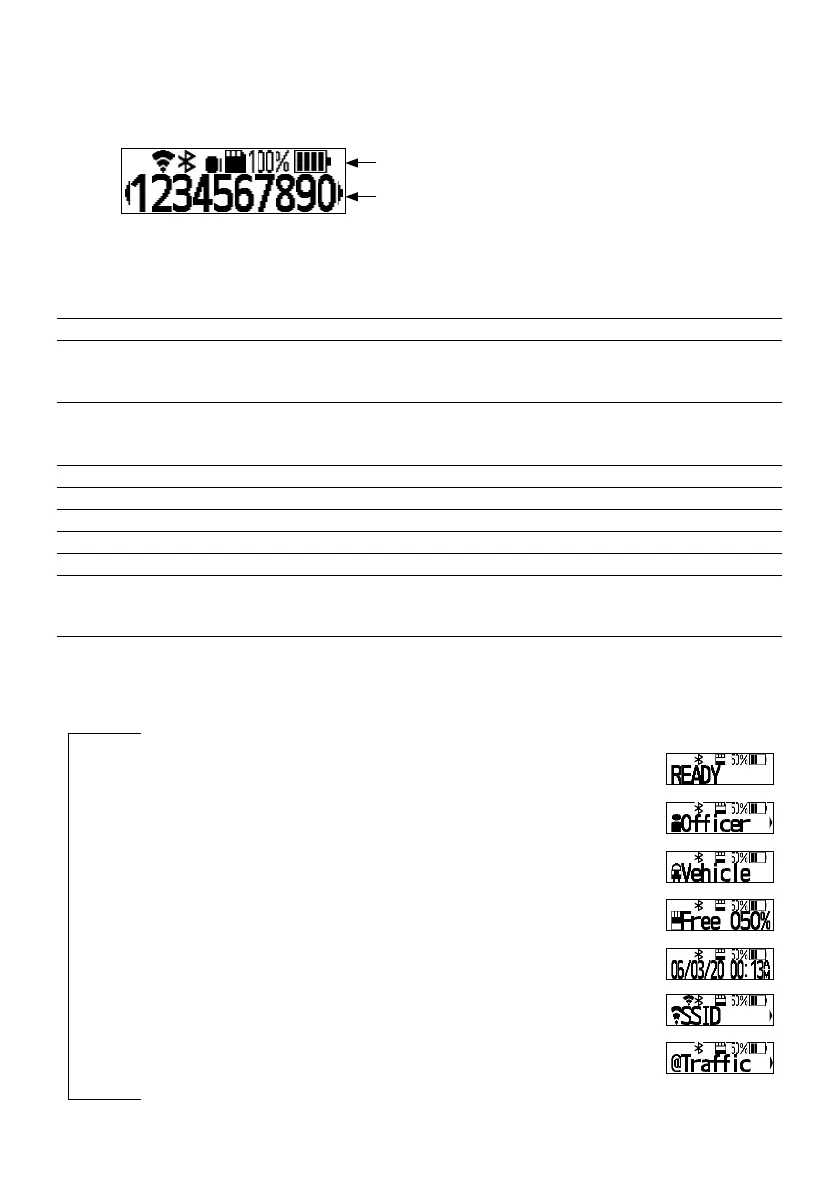

[1] LCD display
The operating condition of the camera or a remaining amount of the battery is displayed. The fol-
lowing describes the display layout. Refer to page 20 for further information about details of the
display.
[2] Rec. LED / [3] Mute LED
“Rec. LED” and “Mute LED” not only indicate the recording status and the mute status respectively
but also the following statuses of the camera.
Rec. LED Mute LED
During the startup process Blink orange Blink orange 0.5sec:On / 0.5sec:Off
Displays “STARTING” on
the LCD*
During recording Off (Factory shippment) −
Can be changed to “Off →
Lights red” by BWC4000
Configuration Tool.
Audio mute −
Off → Lights orange
During charging Lights orange −
Charging completed Lights green −
Charging error Blink orange − 0.5sec:On / 0.5sec:Off
During firmware version-up Blink orange Blink orange 0.5sec:On / 0.5sec:Off
During the shutdown pro-
cess
Blink orange Blink orange 0.5sec:On / 0.5sec:Off
Displays “SHUTDOWN” on
the LCD
[4] Display button
The content to be displayed on the LCD can be switched by pressing the Display button.
Refer to page 20 for further information about details of the menu.
↓
1. Displays the current execution status.
↓
2. Displays the Officer ID registered in BWC.
↓
3. Displays the Vehicle ID registered in BWC.
↓
4. Displays the remaining capacity of the internal memory.
↓
5. Displays the time and date in format of MM/DD/YY hh:mmAM.
↓
6. Displays the WLAN (SSID)/AP of the connection target.
↓
7. Displays the Classify given at the time when the Multi function button is
pressed.
↓
* Displays “EMPTY in the factory default state.
* Displays “EMPTY in the factory default state.
Pict area
Message area
To Next Page
